2.

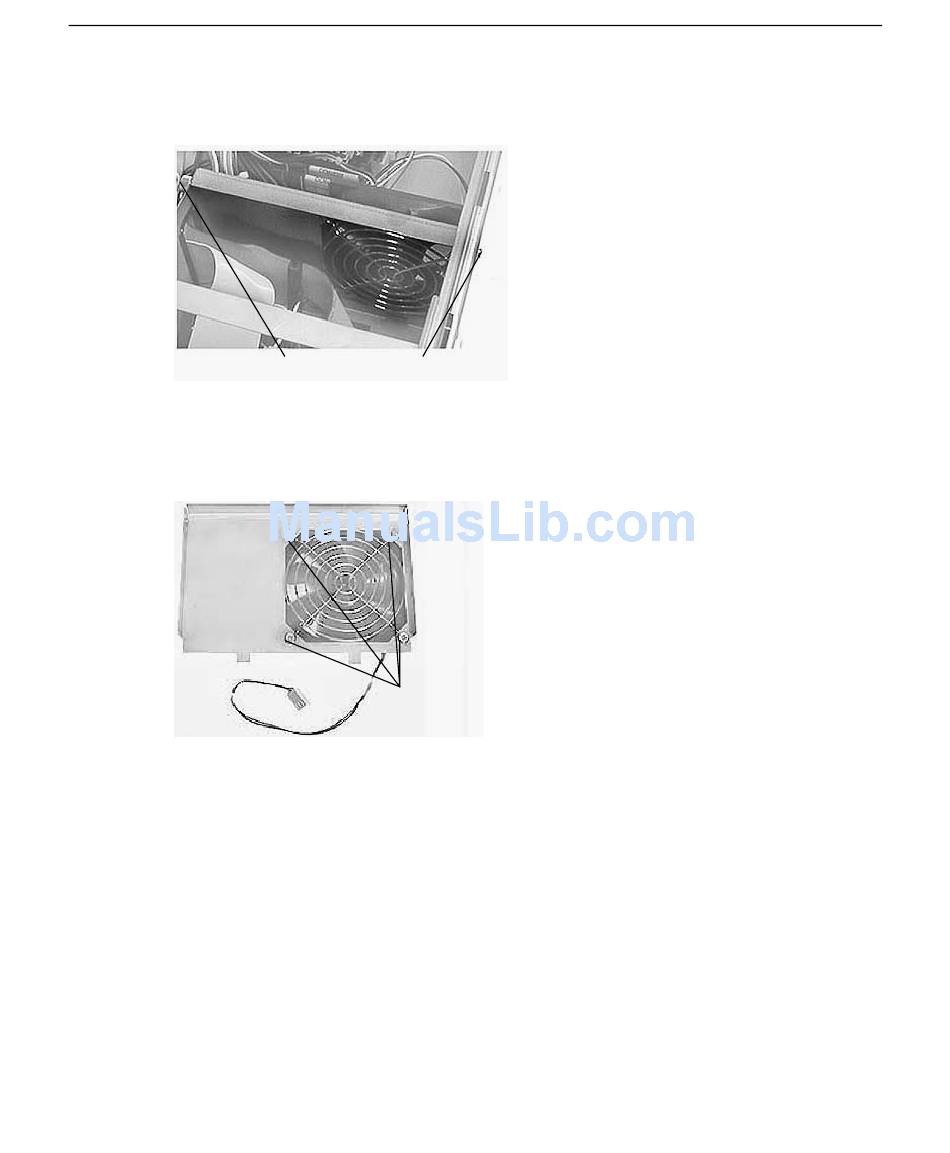

Remove and retain the screw securing the mounting plate and fan to the chassis.
3.
Loosen the thumbscrew attaching the mounting plate to the inside of the chassis.
Thumbscrew
4.
Note the airflow direction of the fan and the position of the fan on the mounting plate (the side
closest to the processors), and gently pull upward on the mounting plate until the mounting
plate and fan clear the chassis.
5.
Remove and retain the four screws attaching the fan and fan grille to the mounting plate.
6.
Ensure the airflow direction arrow on the new fan is pointing in the correct direction, then
attach the new fan and fan grille to the mounting plate using the same four screws.
7.
Reinsert the mounting plate into the chassis, aligning the tabs on the bottom of the mounting
plate with the slots in the chassis.
8.
Tighten the screws attaching the mounting plate and fan to the chassis.
9.
Connect the fan power cable to the power supply connector.
Mounting Screw
Fan Mounting
Screws
25
