3.

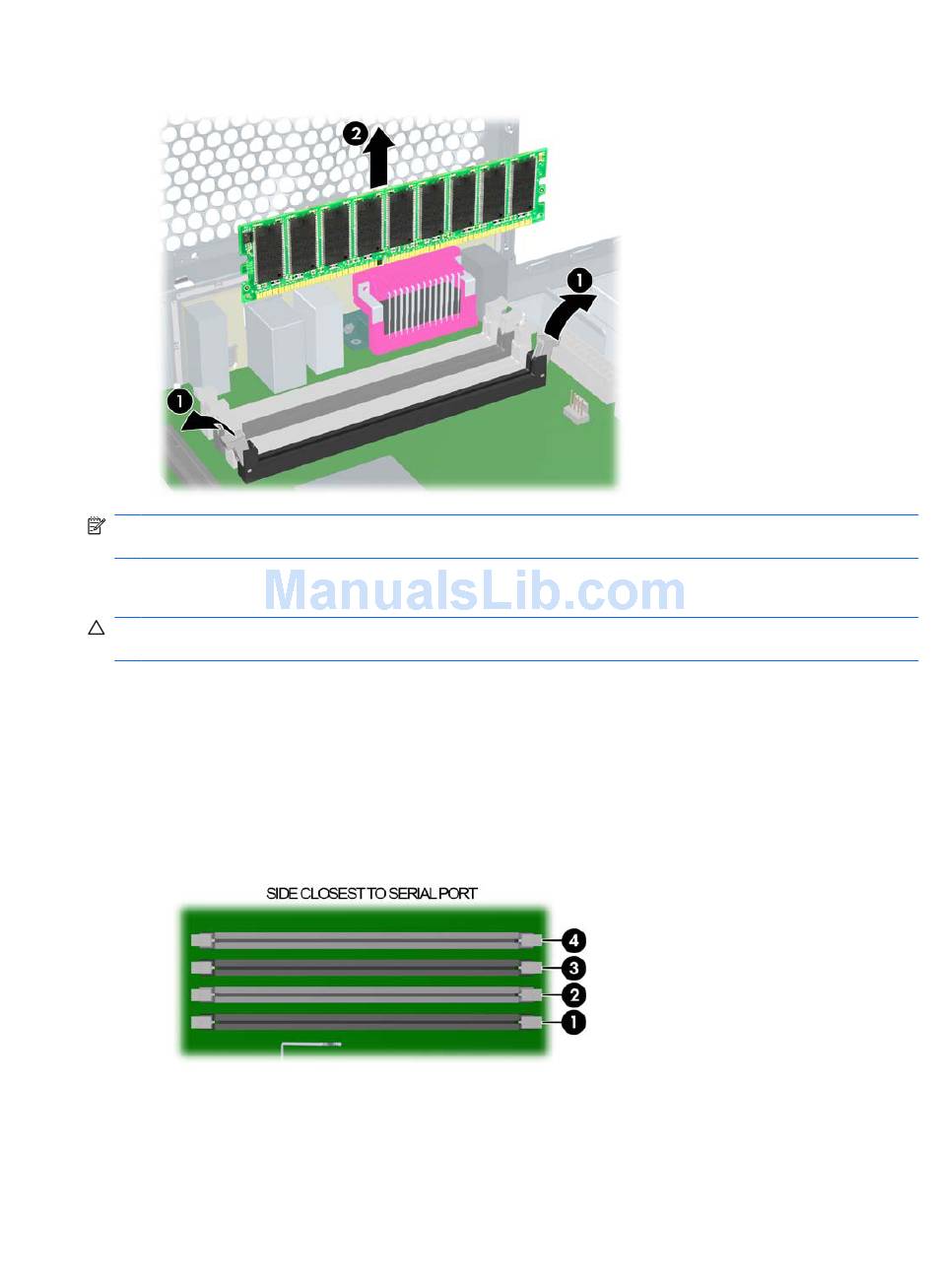

Lift the DIMM straight up 2 and remove it from the unit.
Figure 4-18
NOTE:
DIMMs and the DIMM sockets are keyed for proper installation. Be sure these guides line up
when installing a DIMM.
Installing memory module
CAUTION:
party DIMMs might not be electrically or thermally compatible, so they are not supported by HP.
You must load memory modules in valid configurations:
●
If loading only one DIMM, install it in slot 1.
●
If loading two DIMMs, install them in slots 1 and 3.
●
If loading four DIMMs, install them in all slots.
●
Load the memory module pairs in order of size, from smallest to largest.
Figure 4-19
ENWW
Removing the DIMM
HP only ships DIMMs that are electrically and thermally compatible with this product. Third-
Identifying the memory slots
Removal and replacement of components
73
