Power Switch

1. Prepare the computer for disassembly
2. Remove the computer cover
3. Remove the fan shroud
4. Raise the drive cage to its upright position.
5. Disconnect the cable assembly from the system board.
6. Squeeze the switch holder retaining clips together at the front of the chassis (1) and push the switch
assembly out of the chassis (2).

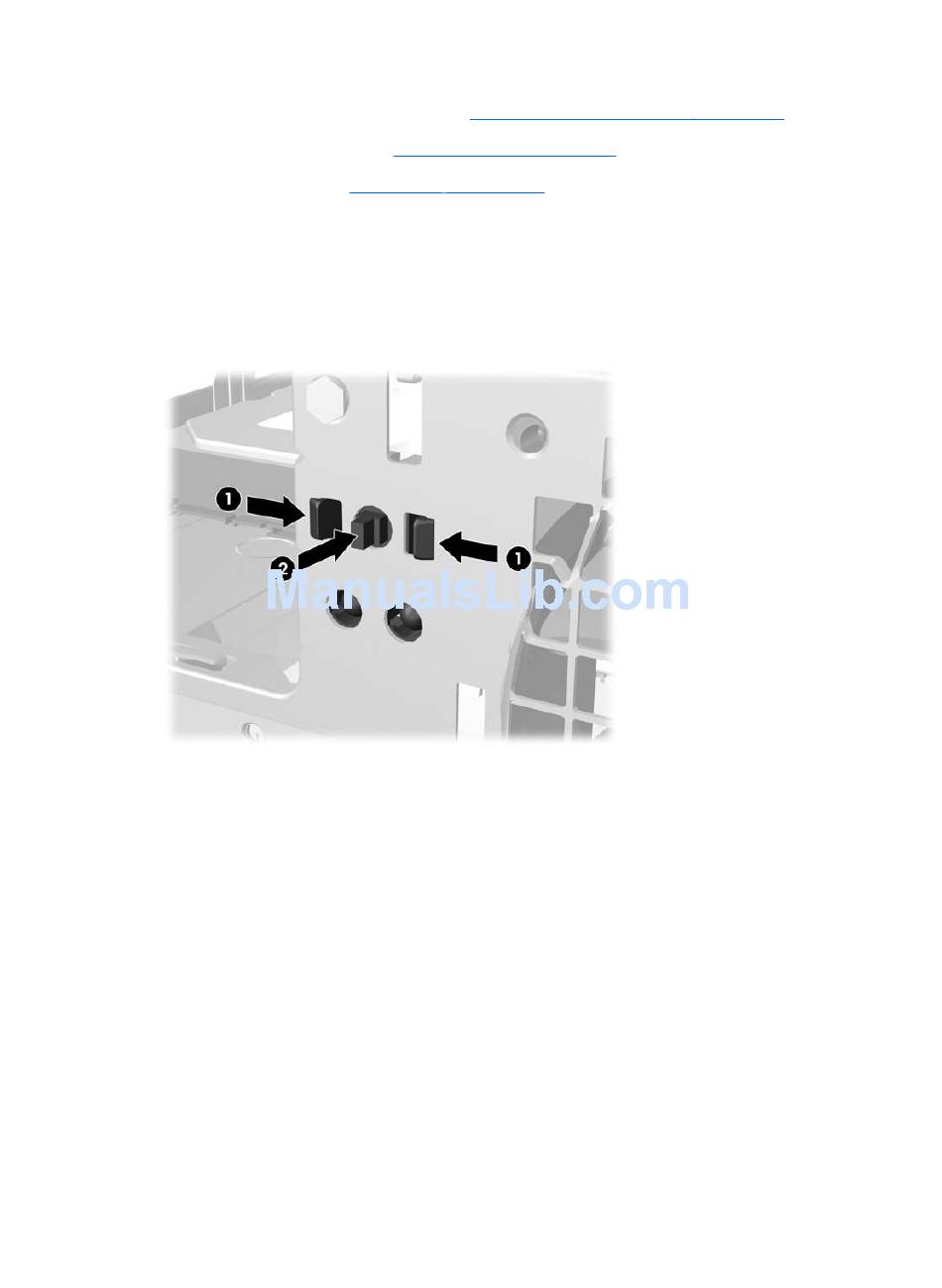

Figure 7-53
To reinstall the switch holder, reverse the removal procedure.
