Front Drive Bezel
1.
Prepare the computer for disassembly
2.
Remove the computer cover
3.

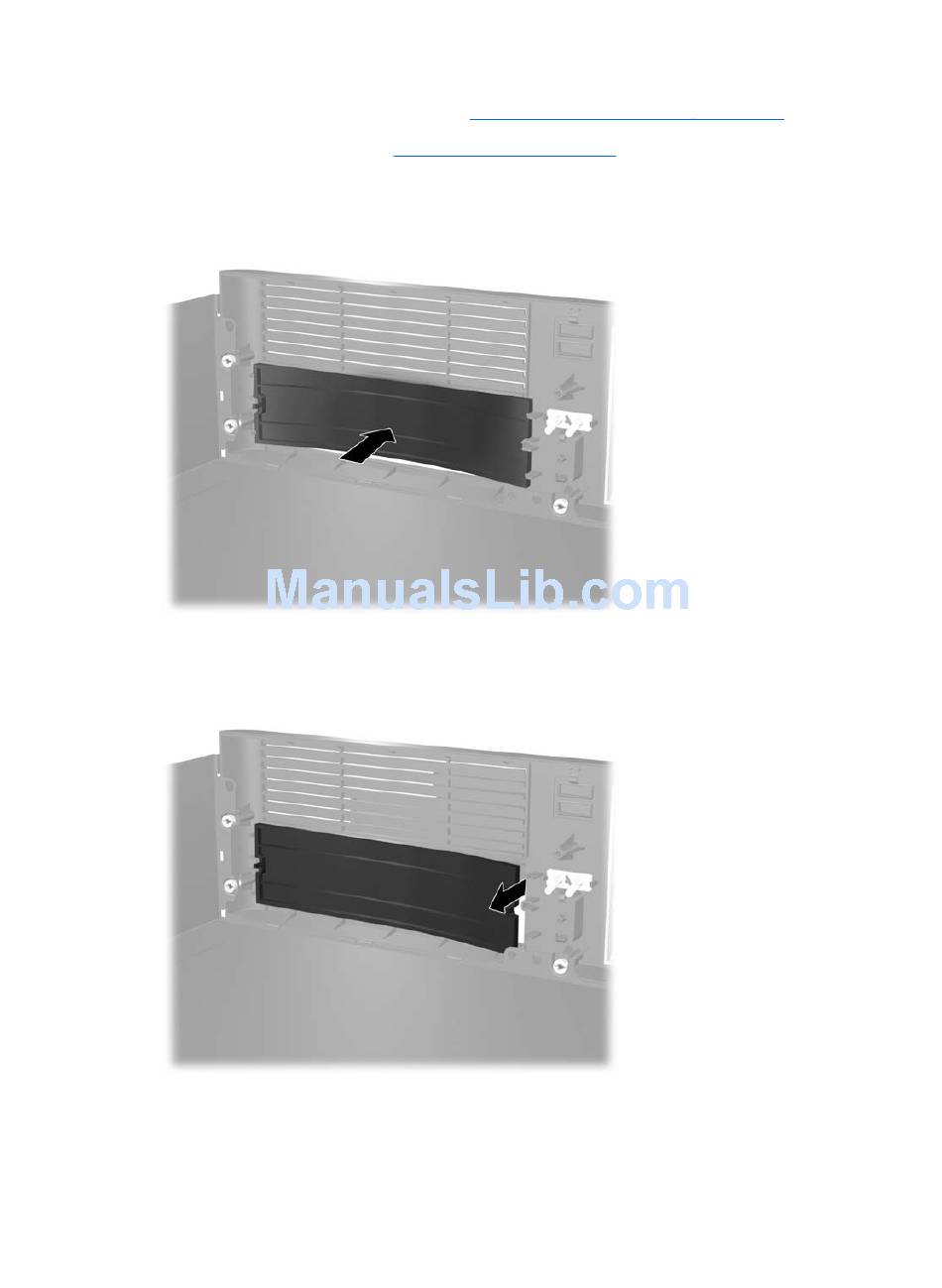

Push the bezel blank outward from the center of the part, so that it is bowed out.
Figure 7-4
4.
With the bezel blank bowed, push its end into the chassis to remove it from the unit.
Figure 7-5
To install a bezel blank, reverse the removal procedure.
ENWW
(Computer Cover on page
Flexing the Bezel Blank
Removing the Bezel Blank
(Preparation for Disassembly on page
64).
61).
Front Drive Bezel
65
