Expansion Cards

Introduction

The computer has the following expansion slots:
●
one ADD2/SDVO expansion slot
●
one low-profile PCI Express x1 expansion slot
●
one PCI expansion slot populated with a riser card that can accommodate two full-height PCI cards

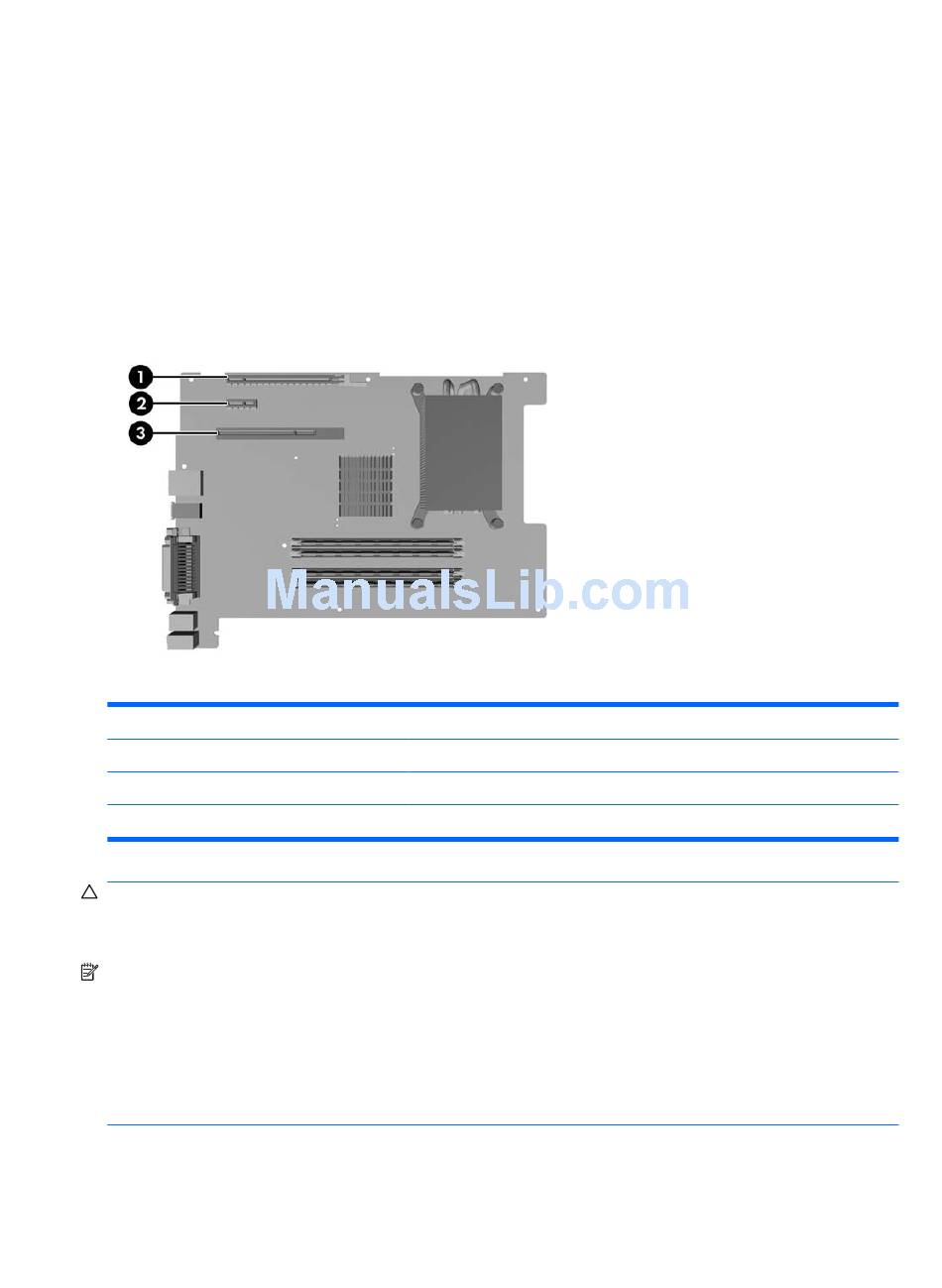

Figure 7-13
Item
1
2
3
CAUTION:
card or installed expansion cards, be sure to remove all installed PCI expansion cards before attempting
to remove the riser card from the chassis.
NOTE: The computer only supports the use of normal (or non-reversed) layout ADD2 (Advanced
Digital Display 2) adapter cards inserted into the SDVO (Serial Digital Video Output) connector on the
platform's system board. ADD2 cards are used to give multi-monitor capabilities to the integrated
graphics controller.
The ADD2/SDVO connector on the system board has the physical appearance of a PCI Express x16
connector; however, the platform does NOT support the use of conventional PCI Express cards or
reversed-layout ADD2 cards.
74 Chapter 7 Removal and Replacement Procedures — Small Form Factor (SFF) Chassis
Expansion Slot Locations
The PCI expansion slot ships populated with a PCI riser card. To avoid damage to the riser
Description
ADD2/SDVO expansion slot
PCI Express x1 expansion slot, low profile
PCI expansion slot, low profile populated with riser card
