Chassis Fan

1. Prepare the computer for disassembly
2. Remove the computer cover
3. Remove the fan shroud

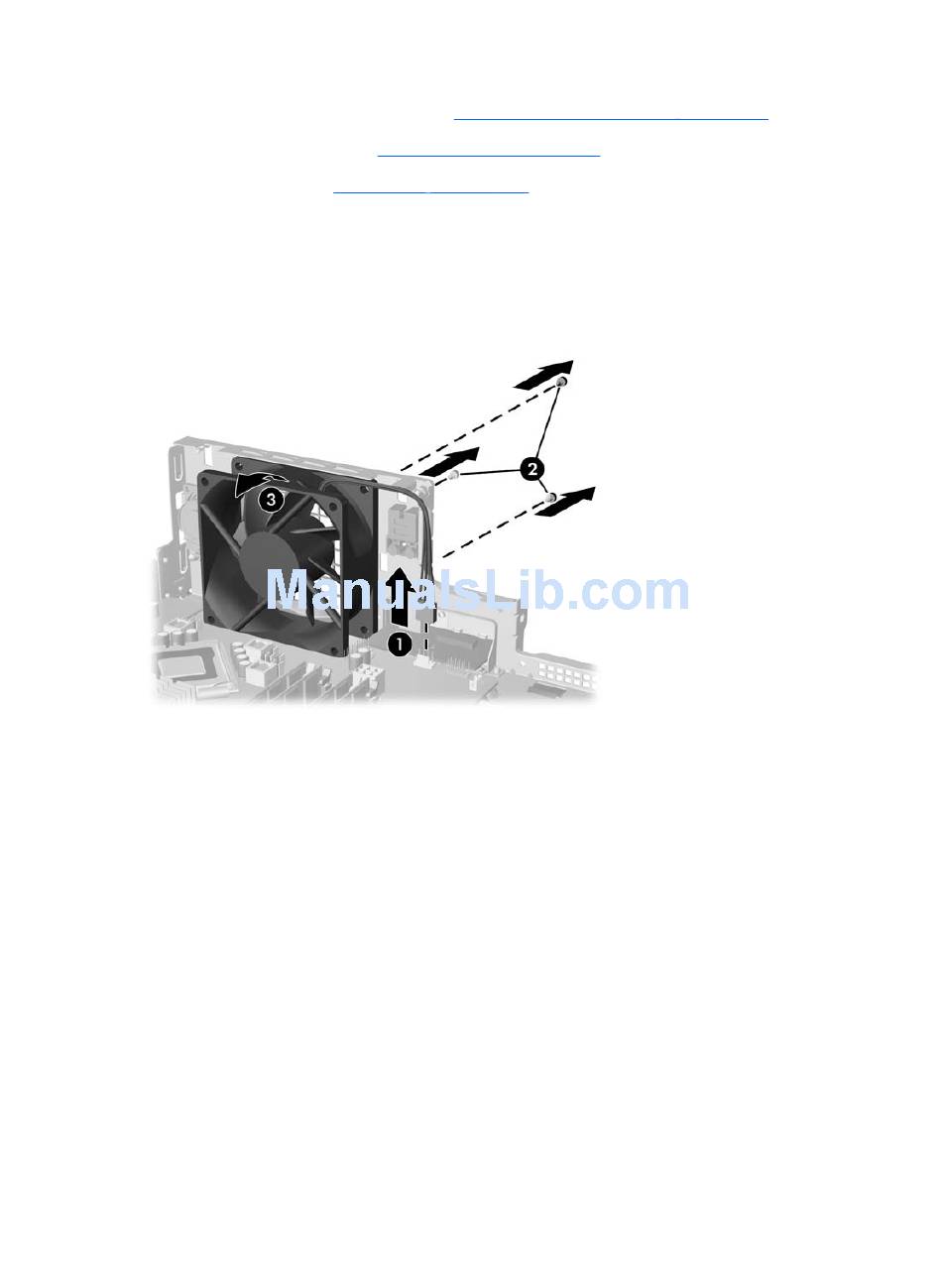

4. Remove the three screws that secure the fan to the chassis (1) then tilt the top of the fan towards
the inside of the chassis (2) to remove it
5. Disconnect the fan control cable from the system board (3).
Figure 7-52
To install the chassis fan, reverse the removal procedures.
104 Chapter 7 Removal and Replacement Procedures — Small Form Factor (SFF) Chassis
(Computer Cover on page
Fan Shroud on page
Removing the Chassis Fan
(Preparation for Disassembly on page
64).
103.
61).
