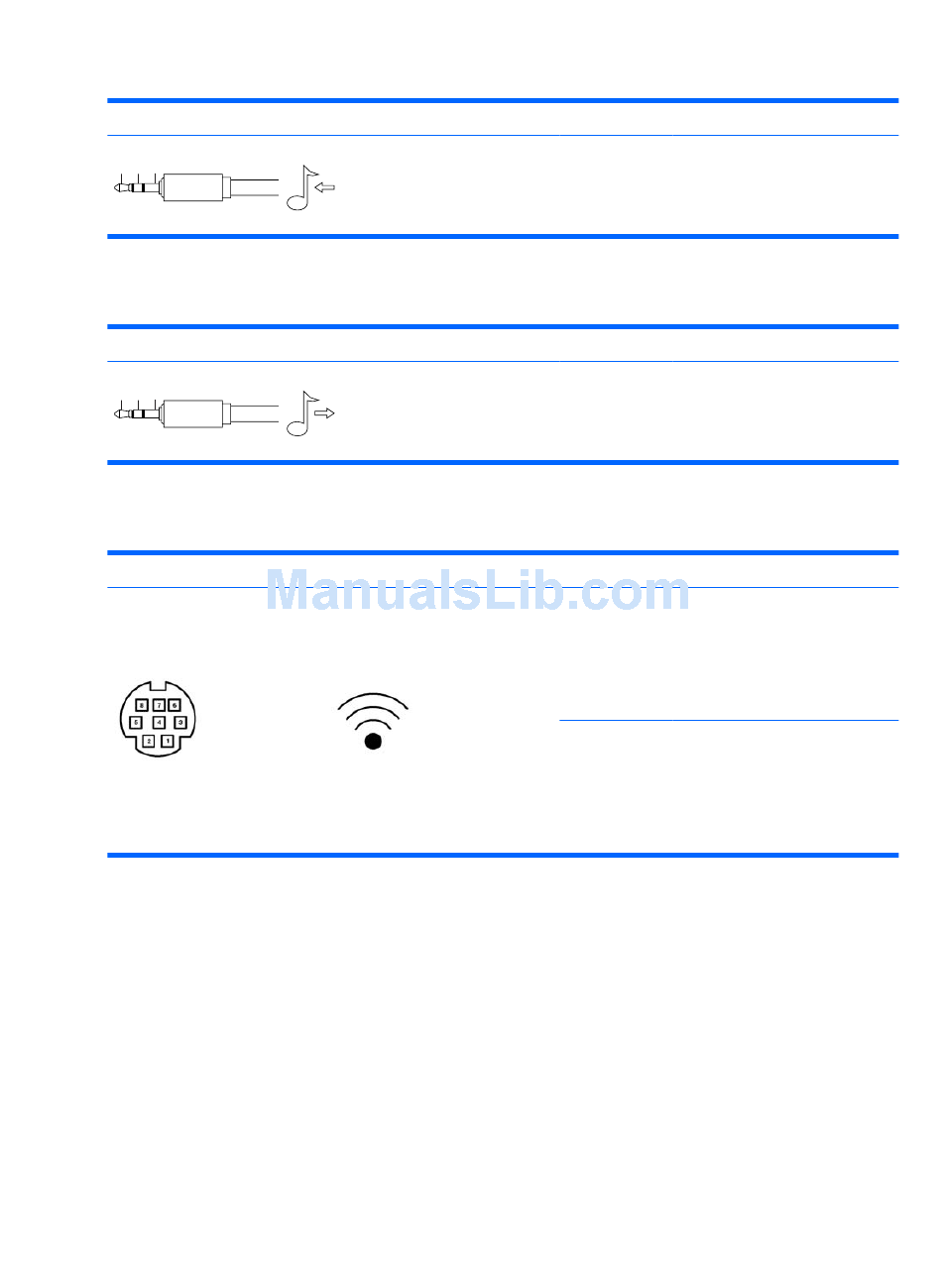

Line-in Audio
Connector and Icon (1/8" miniphone)
1 2 3
Line-out Audio
Connector and Icon (1/8" miniphone)
1 2 3
External Infrared Transceiver
Connector and Icon
120 Appendix A Connector Pin Assignments
Pin
Signal
1 (Tip)
Audio_In_Left
2 (Ring)
Audio_In_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_Out_Left
2 (Ring)
Audio_Out_Right
3 (Shield)
Ground
Pin
Signal
1
Transmit
2
Receive
3
Ground
4
5V
5
Mode
6
Not Used
7
Not Used
8
Not Used
ENWW
