PCI Card in the Riser Card Cage

You can install two full-height PCI cards in the riser card.
CAUTION:
installed PCI expansion cards before attempting to remove the riser card from the chassis.
1. Remove/disengage any security devices that prohibit opening the computer
2. Remove all removable media, such as compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION:
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5. If the computer is on a stand, remove the computer from the stand.
6. Remove the computer cover
7. Press the latch release on the front of the power supply (1), and then raise the power supply to the
upright position (2).

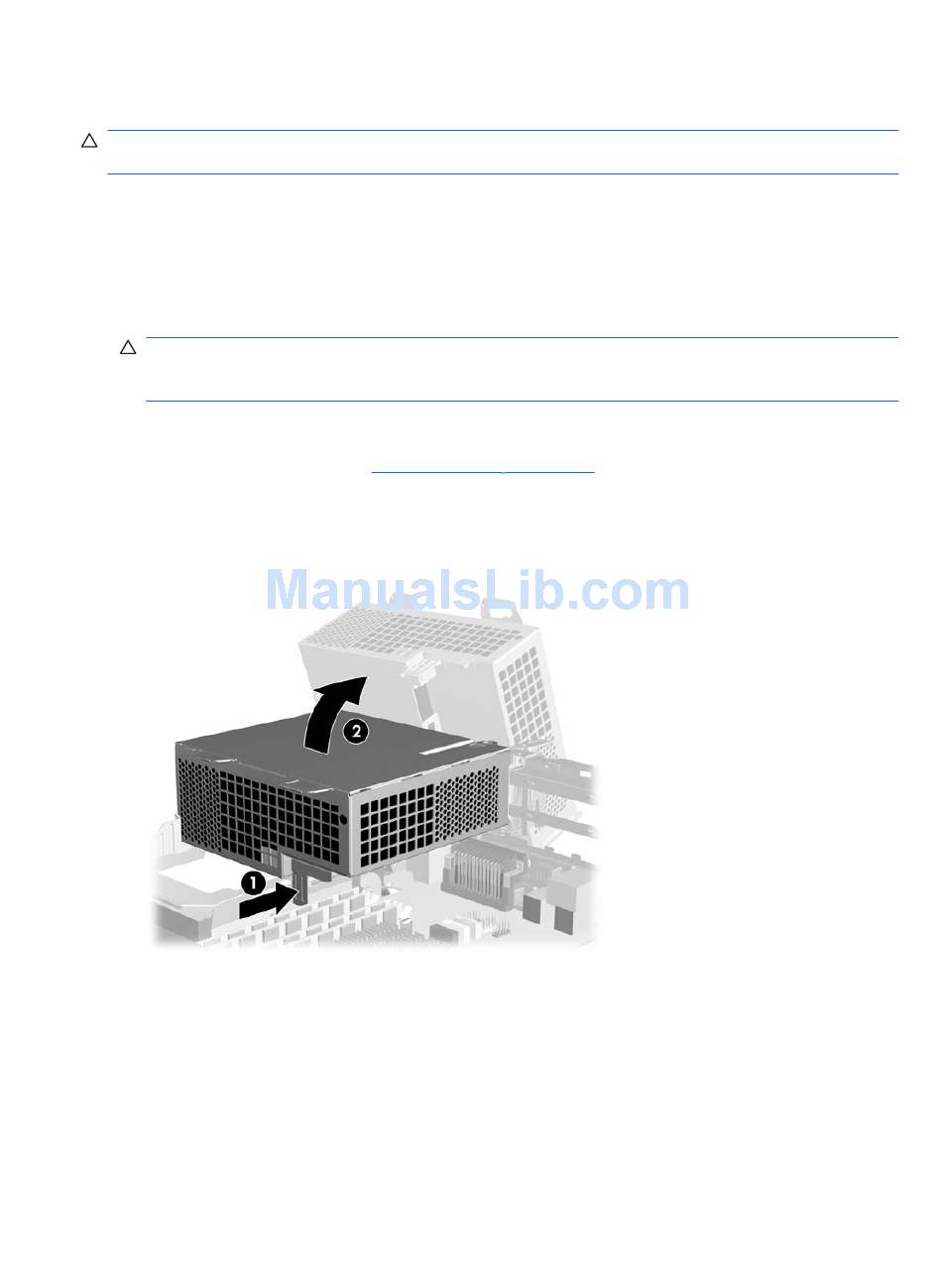

Figure 7-19
8. Locate the correct vacant expansion socket in the PC riser and the corresponding expansion slot
on the back of the computer chassis.
78 Chapter 7 Removal and Replacement Procedures — Small Form Factor (SFF) Chassis
To avoid damage to the riser card or installed PCI expansion cards, be sure to remove all
Regardless of the power-on state, voltage is always present on the system board as
Computer Cover on page
Releasing and Rotating the Power Supply
64.
ENWW
