Chapter 5 OPERATING PROCEDURE

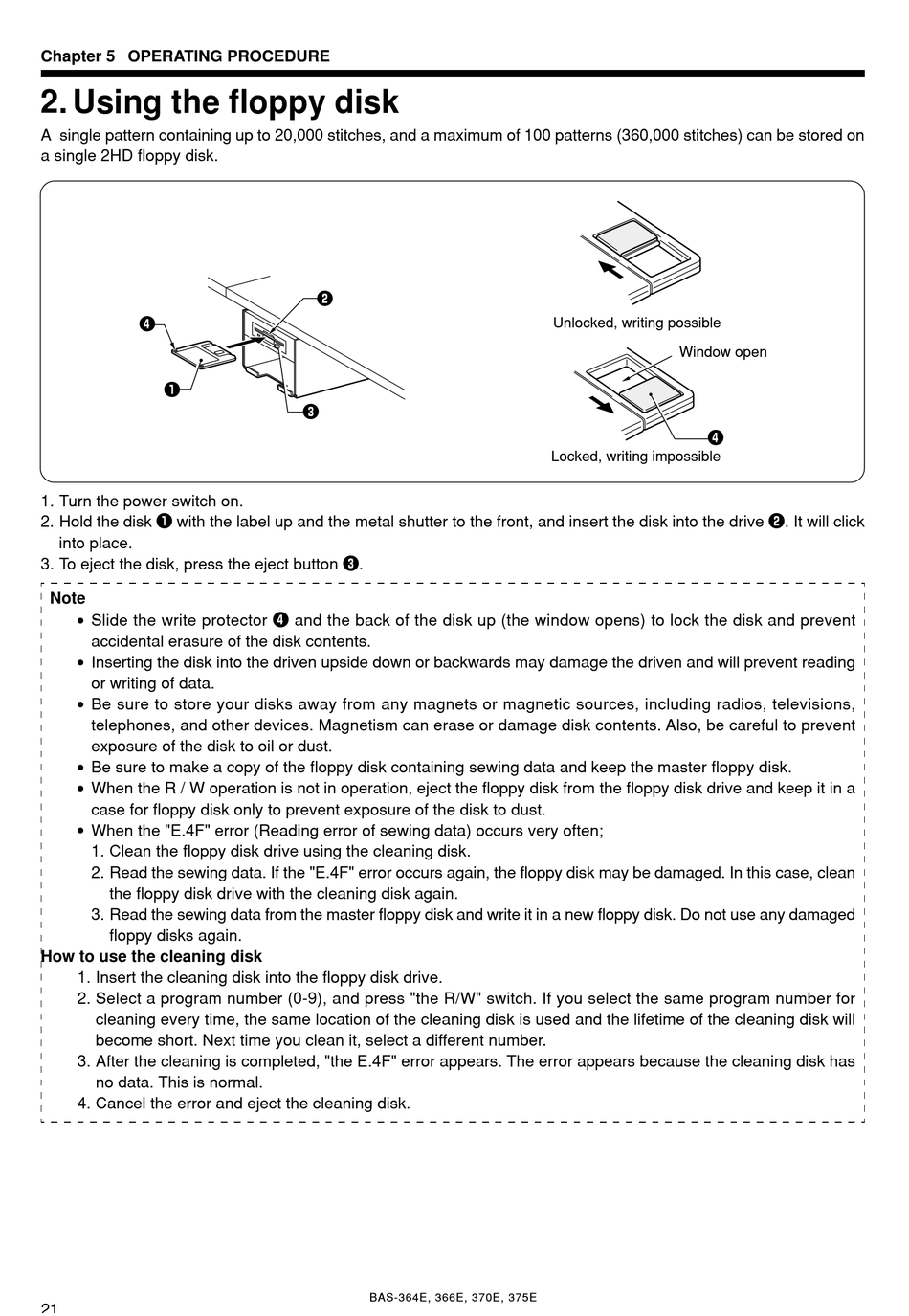

2. Using the floppy disk

A single pattern containing up to 20,000 stitches, and a maximum of 100 patterns (360,000 stitches) can be stored on
a single 2HD floppy disk.
r
q
1. Turn the power switch on.
2. Hold the disk q with the label up and the metal shutter to the front, and insert the disk into the drive w. It will click
into place.
3. To eject the disk, press the eject button e.
Note
Slide the write protector r and the back of the disk up (the window opens) to lock the disk and prevent
accidental erasure of the disk contents.
Inserting the disk into the driven upside down or backwards may damage the driven and will prevent reading
or writing of data.
Be sure to store your disks away from any magnets or magnetic sources, including radios, televisions,
telephones, and other devices. Magnetism can erase or damage disk contents. Also, be careful to prevent
exposure of the disk to oil or dust.
Be sure to make a copy of the floppy disk containing sewing data and keep the master floppy disk.
When the R / W operation is not in operation, eject the floppy disk from the floppy disk drive and keep it in a
case for floppy disk only to prevent exposure of the disk to dust.
When the "E.4F" error (Reading error of sewing data) occurs very often;
1. Clean the floppy disk drive using the cleaning disk.
2. Read the sewing data. If the "E.4F" error occurs again, the floppy disk may be damaged. In this case, clean
the floppy disk drive with the cleaning disk again.
3. Read the sewing data from the master floppy disk and write it in a new floppy disk. Do not use any damaged
floppy disks again.
How to use the cleaning disk
1. Insert the cleaning disk into the floppy disk drive.
2. Select a program number (0-9), and press "the R/W" switch. If you select the same program number for
cleaning every time, the same location of the cleaning disk is used and the lifetime of the cleaning disk will
become short. Next time you clean it, select a different number.
3. After the cleaning is completed, "the E.4F" error appears. The error appears because the cleaning disk has
no data. This is normal.
4. Cancel the error and eject the cleaning disk.
21
w
e
BAS-364E, 366E, 370E, 375E
Unlocked, writing possible
Window open
r
Locked, writing impossible
