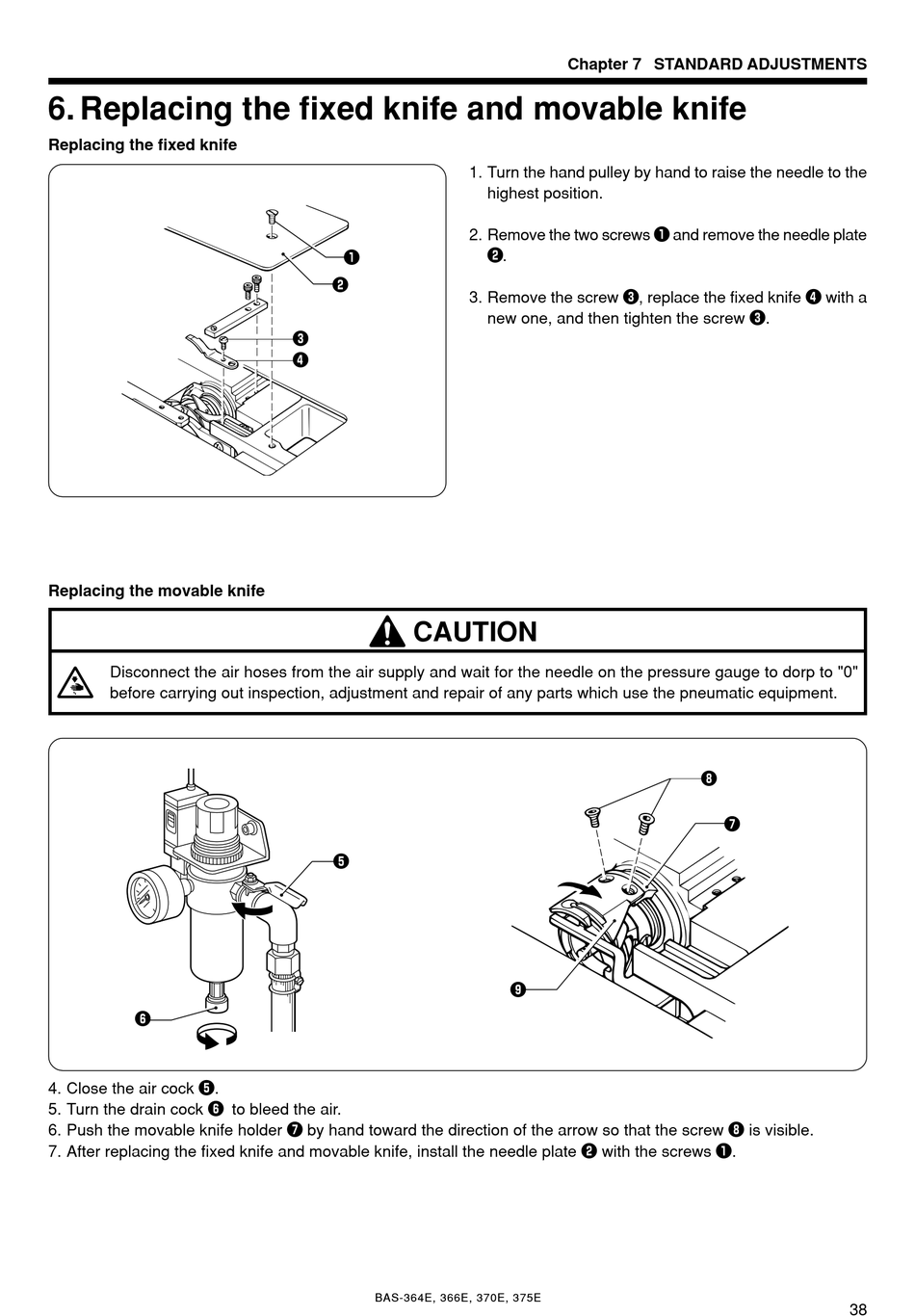

6. Replacing the fixed knife and movable knife

Replacing the fixed knife
Replacing the movable knife
Disconnect the air hoses from the air supply and wait for the needle on the pressure gauge to dorp to "0"
before carrying out inspection, adjustment and repair of any parts which use the pneumatic equipment.
y
4. Close the air cock t.
5. Turn the drain cock y to bleed the air.
6. Push the movable knife holder u by hand toward the direction of the arrow so that the screw i is visible.
7. After replacing the fixed knife and movable knife, install the needle plate w with the screws q.
q
w
e
r
CAUTION
t
BAS-364E, 366E, 370E, 375E
Chapter 7 STANDARD ADJUSTMENTS
1. Turn the hand pulley by hand to raise the needle to the
highest position.
2. Remove the two screws q and remove the needle plate
w.
3. Remove the screw e, replace the fixed knife r with a
new one, and then tighten the screw e.
