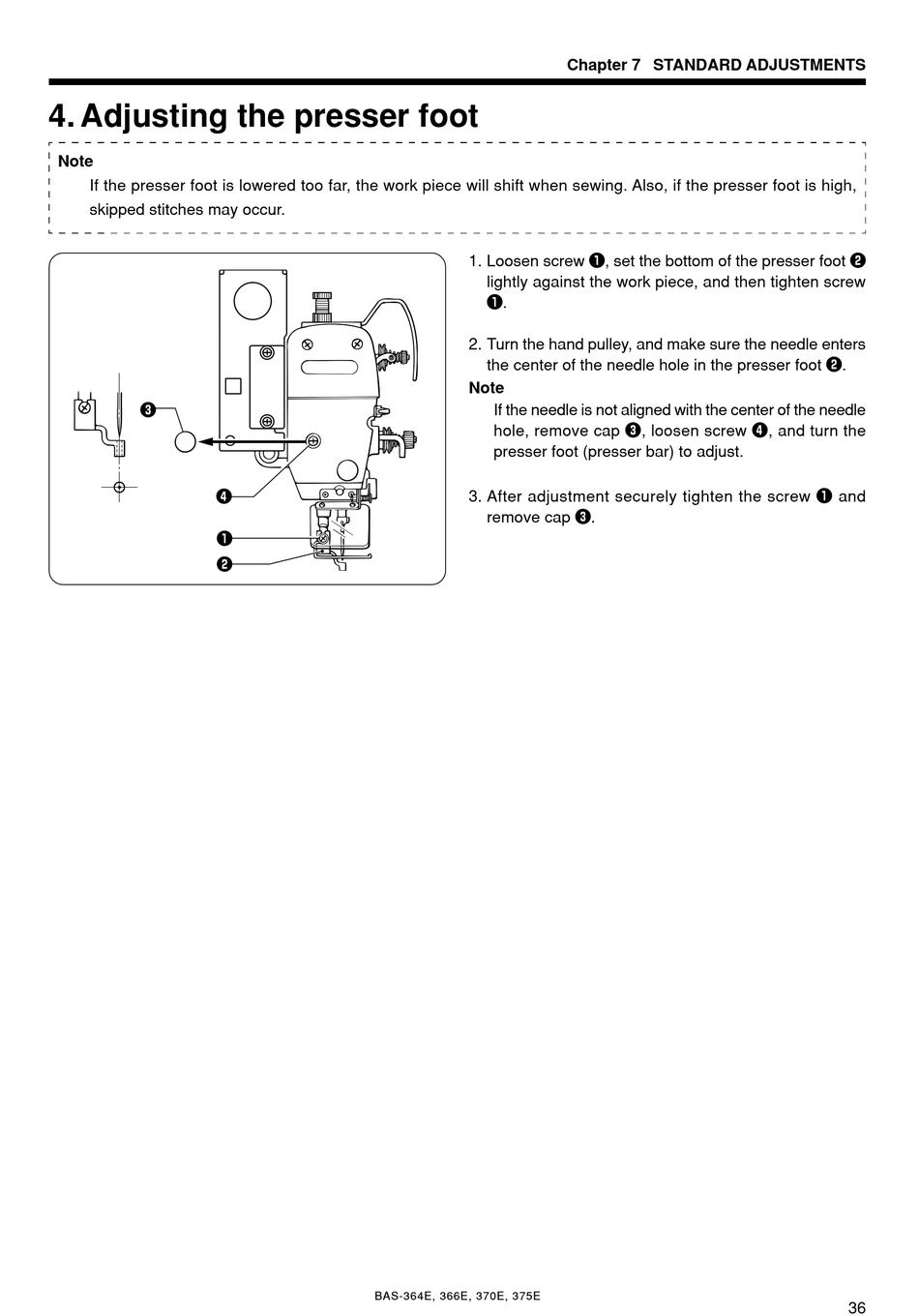

4. Adjusting the presser foot

Note
If the presser foot is lowered too far, the work piece will shift when sewing. Also, if the presser foot is high,
skipped stitches may occur.
e
r
q
w
1. Loosen screw q, set the bottom of the presser foot w
lightly against the work piece, and then tighten screw
q.
2. Turn the hand pulley, and make sure the needle enters
the center of the needle hole in the presser foot w.
Note
If the needle is not aligned with the center of the needle
hole, remove cap e, loosen screw r, and turn the
presser foot (presser bar) to adjust.
3. After adjustment securely tighten the screw q and
remove cap e.
BAS-364E, 366E, 370E, 375E
Chapter 7 STANDARD ADJUSTMENTS
36
