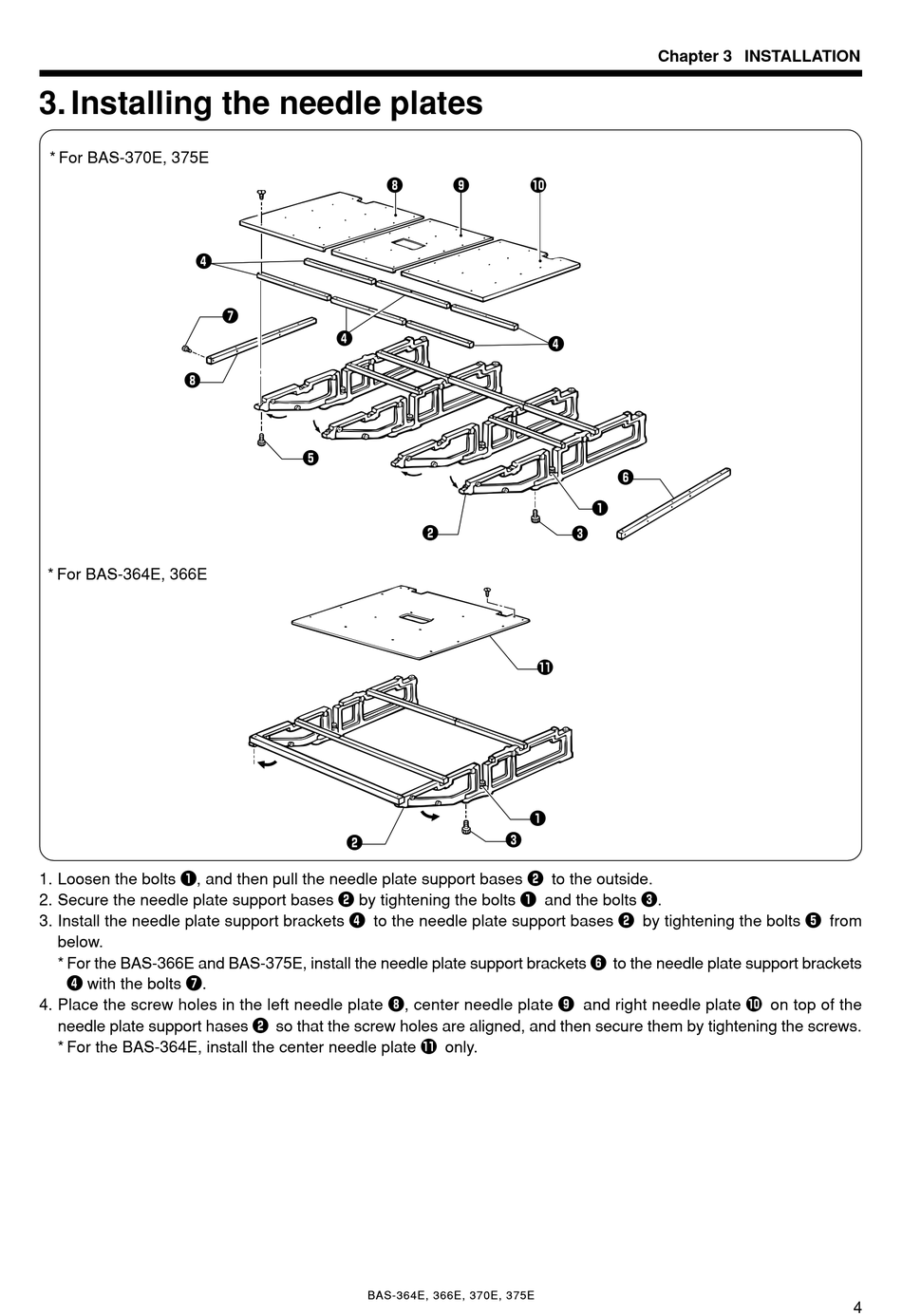

3. Installing the needle plates

* For BAS-370E, 375E
r
i
* For BAS-364E, 366E
1. Loosen the bolts q, and then pull the needle plate support bases w to the outside.
2. Secure the needle plate support bases w by tightening the bolts q and the bolts e.
3. Install the needle plate support brackets r to the needle plate support bases w by tightening the bolts t from
below.
* For the BAS-366E and BAS-375E, install the needle plate support brackets y to the needle plate support brackets
r with the bolts u.
4. Place the screw holes in the left needle plate i, center needle plate o and right needle plate !0 on top of the
needle plate support hases w so that the screw holes are aligned, and then secure them by tightening the screws.
* For the BAS-364E, install the center needle plate !1 only.
i
u
r
t
w
BAS-364E, 366E, 370E, 375E
o !0
r
q
w
e
!1
q
e
Chapter 3 INSTALLATION
