RTC Battery Removal

Prerequisite:
Base Door Removal
1. Find RTC (Real Time Clock) battery (C) on mainboard.
2. Using plastic tweezers, push the RTC battery in using the gap in the mainboard connector
(A) to release the battery. (Figure 3-13)

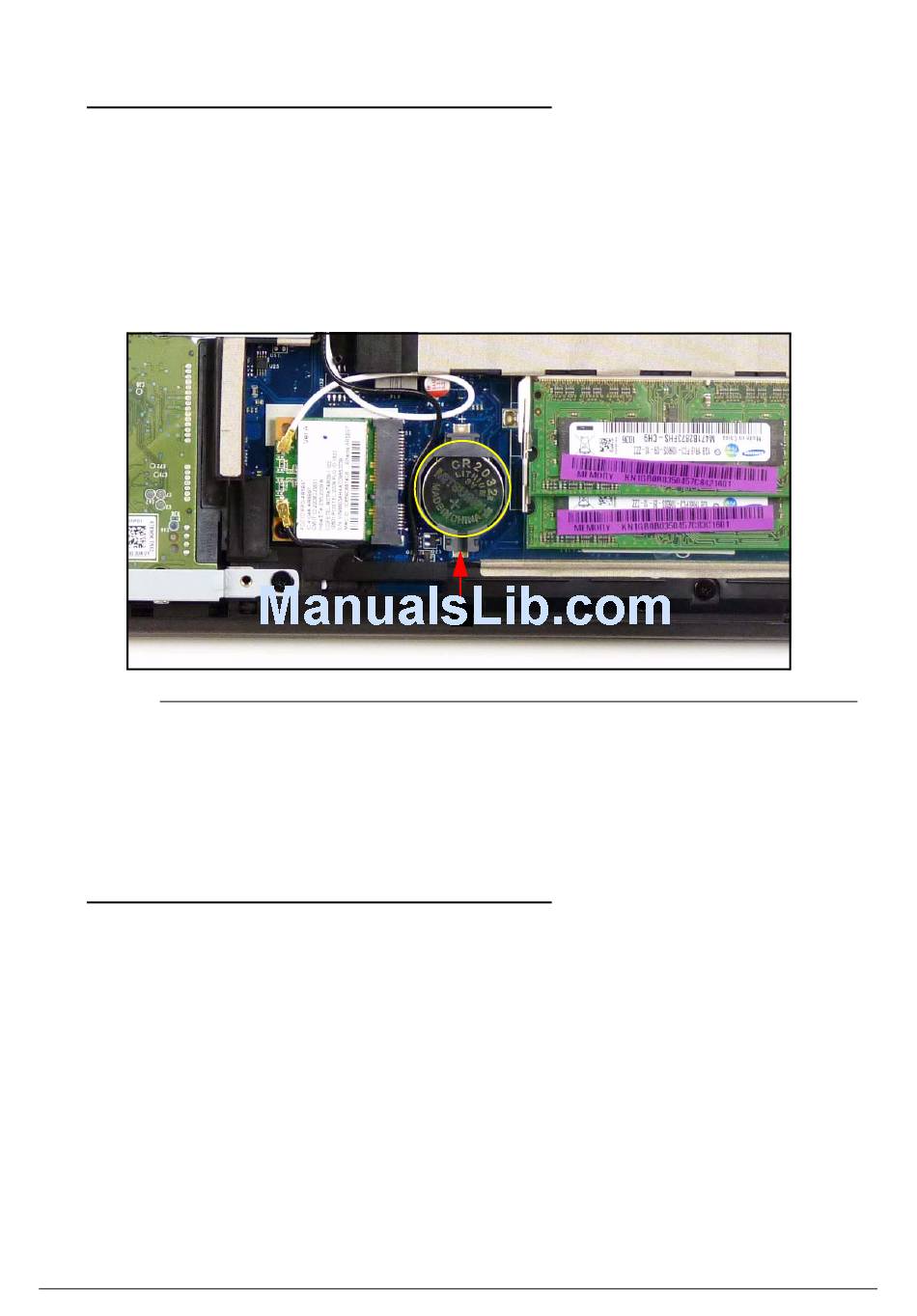

Figure 3-13. RTC Battery
+
IMPORTANT:
Follow local regulations for battery (Figure 3-13) disposal.
3. Remove RTC battery from mainboard connector. (Figure 3-13)

RTC Battery Installation

1. Put RTC battery (A) into the mainboard connector and press down to secure it.
(Figure 3-13)
2. Install base door.
3-18
(Figure 3-10)
A
Machine Maintenance Procedures
