Fan Removal; Fan Installation - eMachines E644G Service Manual

Fan Removal

Prerequisite:
Mainboard Removal
1. Find fan (A) on mainboard. (Figure 3-32)

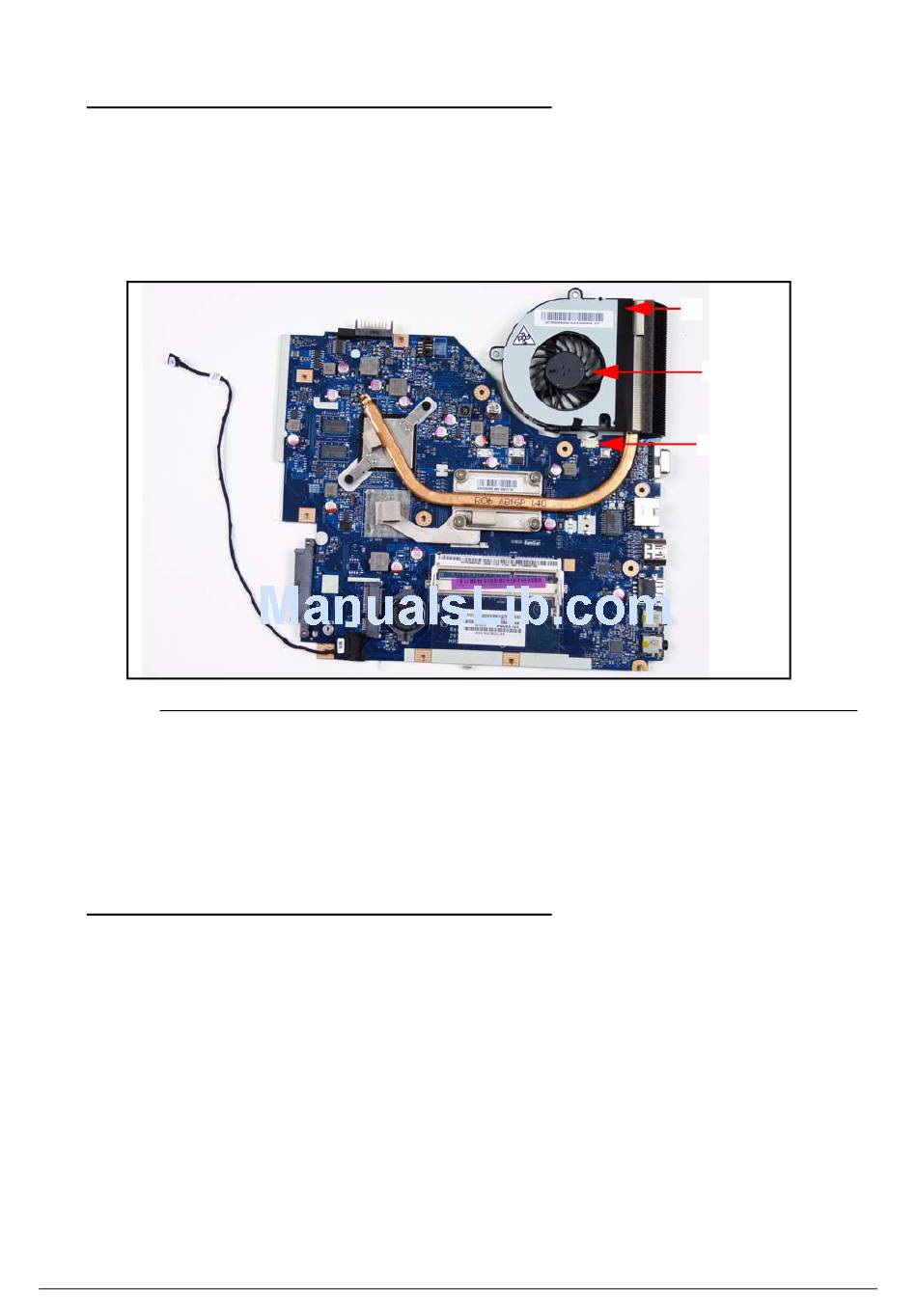

Figure 3-32. Fan Location
2. Disconnect fan cable from mainboard connector (B). (Figure 3-32)
3. Remove adhesive tape (C) securing the fan to the heatsink. (Figure 3-32)
4. Remove fan from heatsink.

Fan Installation

1. Put flat edge of fan next to heatsink. (Figure 3-32)
2. Secure fan to heatsink with adhesive tape (C). (Figure 3-32)
3. Connect fan to mainboard connector (B). (Figure 3-32)
4. Install mainboard.
