DC-IN Cable Removal

Prerequisite:
Mainboard Removal

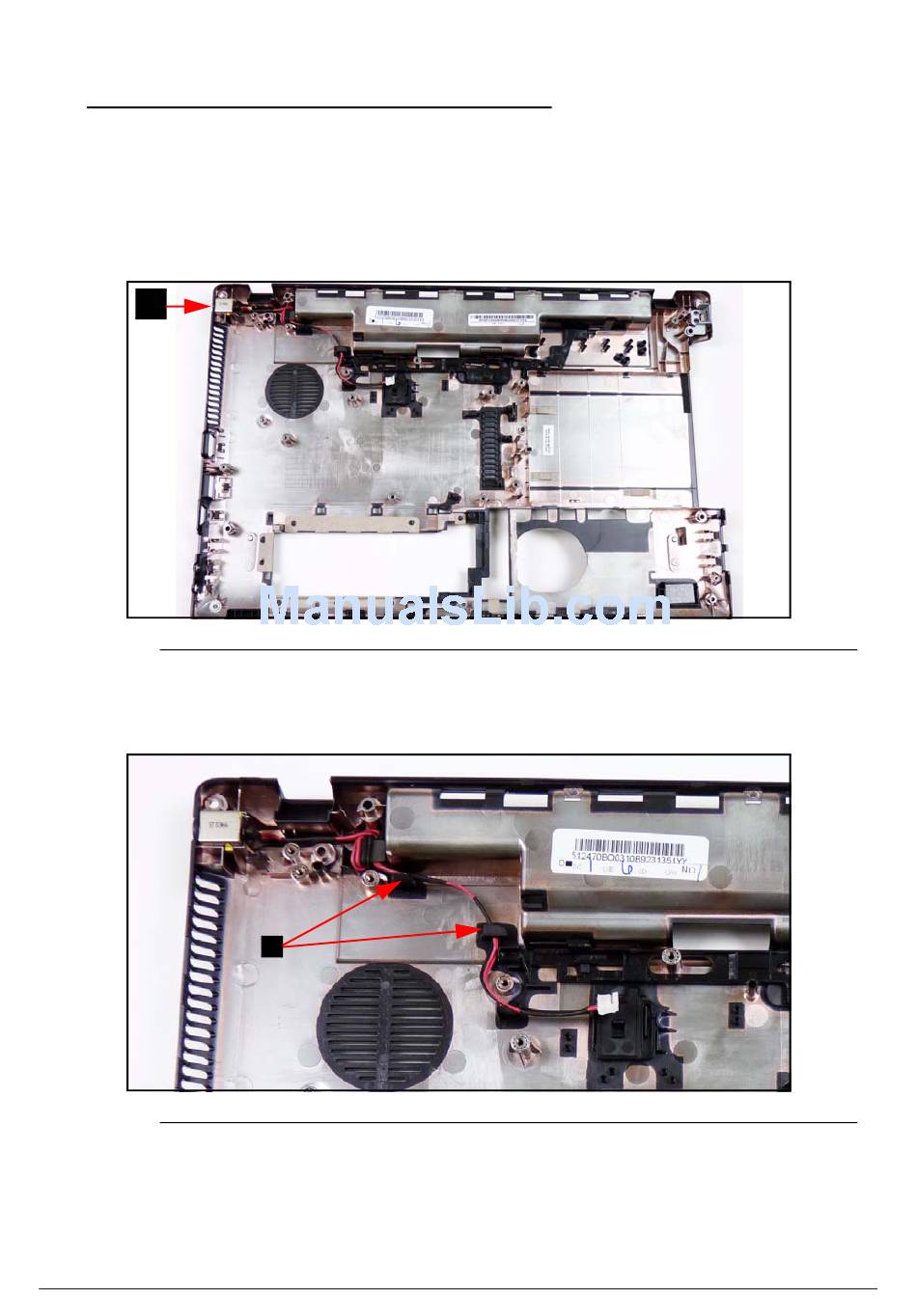

1. Find DC-IN (Direct Current Input) cable (A) in lower cover. (Figure 3-38)
A
Figure 3-38. DC-IN Cable Location
2. Remove DC-IN cable from cable guides (B). (Figure 3-39)
Figure 3-39. DC-IN Cable
3. Remove DC-IN cable from lower cover. (Figure 3-39)
Machine Maintenance Procedures
B
