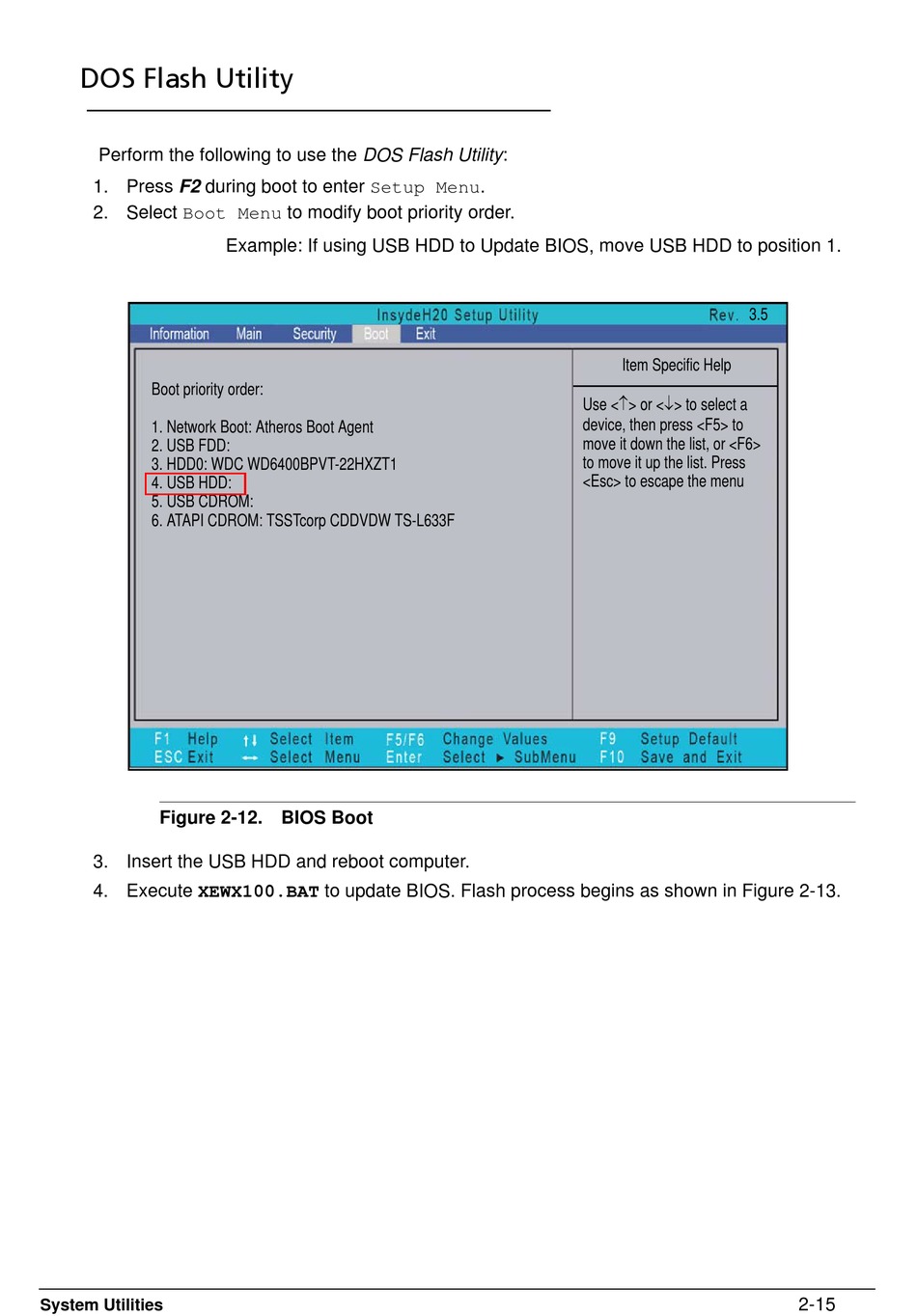

Dos Flash Utility - eMachines E644G Service Manual

DOS Flash Utility

Perform the following to use the DOS Flash Utility:
1. Press F2 during boot to enter Setup Menu.
2. Select Boot Menu to modify boot priority order.
Boot priority order:
1. Network Boot: Atheros Boot Agent
2. USB FDD:
3. HDD0: WDC WD6400BPVT-22HXZT1
4. USB HDD:
5. USB CDROM:
6. ATAPI CDROM: TSSTcorp CDDVDW TS-L633F
Figure 2-12. BIOS Boot
3. Insert the USB HDD and reboot computer.
4. Execute XEWX100.BAT to update BIOS. Flash process begins as shown in Figure 2-13.
System Utilities
Example: If using USB HDD to Update BIOS, move USB HDD to position 1.
0
Item Specific Help
Use <> or <> to select a
device, then press <F5> to
move it down the list, or <F6>
to move it up the list. Press
<Esc> to escape the menu
3.5
2-15
