Heatsink Removal

Prerequisite:
Fan Removal

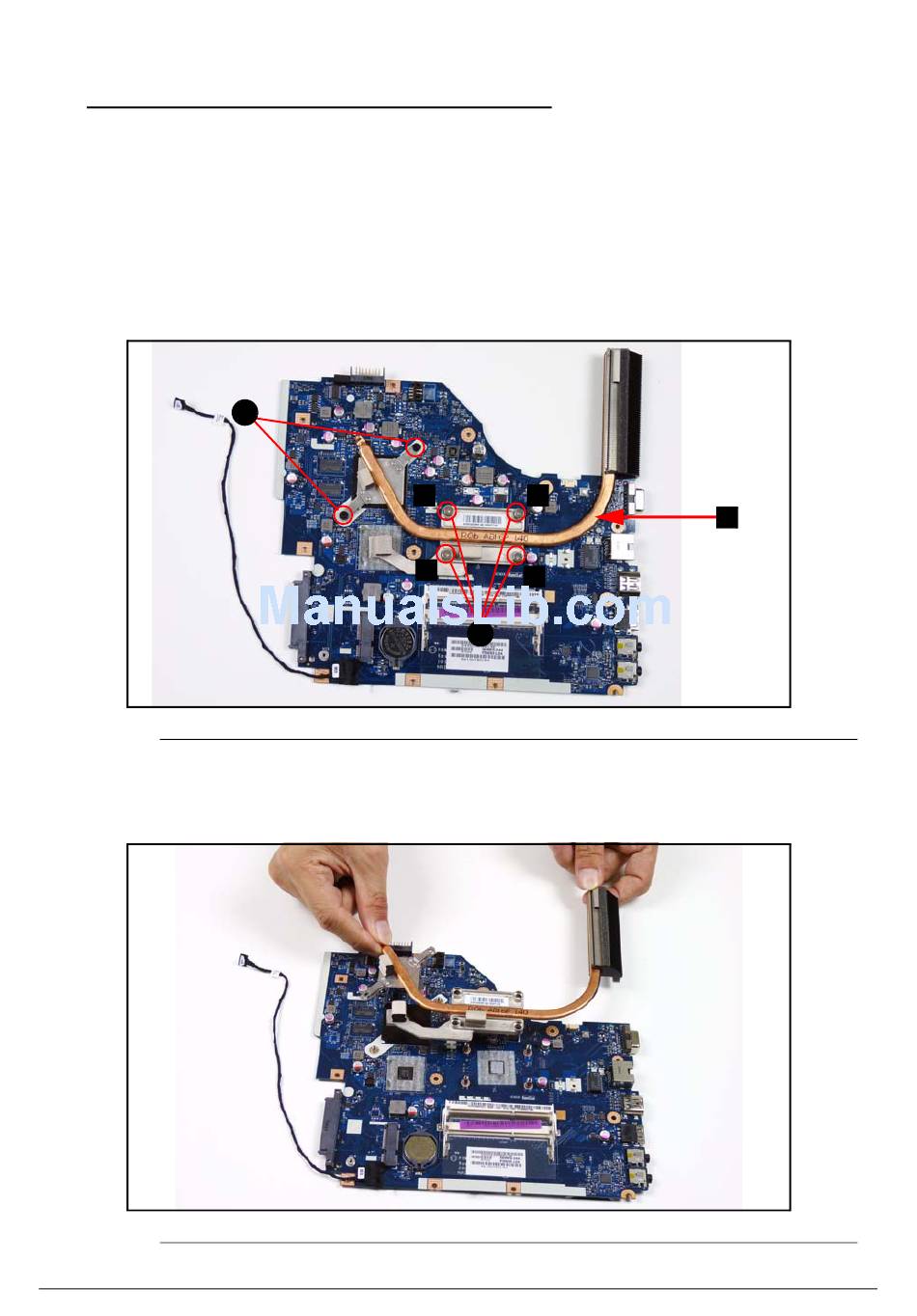

1. Find heatsink (A) on mainboard. (Figure 3-33)
2. Remove four (4) thermal screws (B) from heatsink. (Figure 3-33)
3. Loosen two (2) captive screws (C) from heatsink. (Figure 3-33)
Figure 3-33. Thermal Module
4. Remove heatsink from mainboard.
