Right View - eMachines E644G Service Manual

Right View

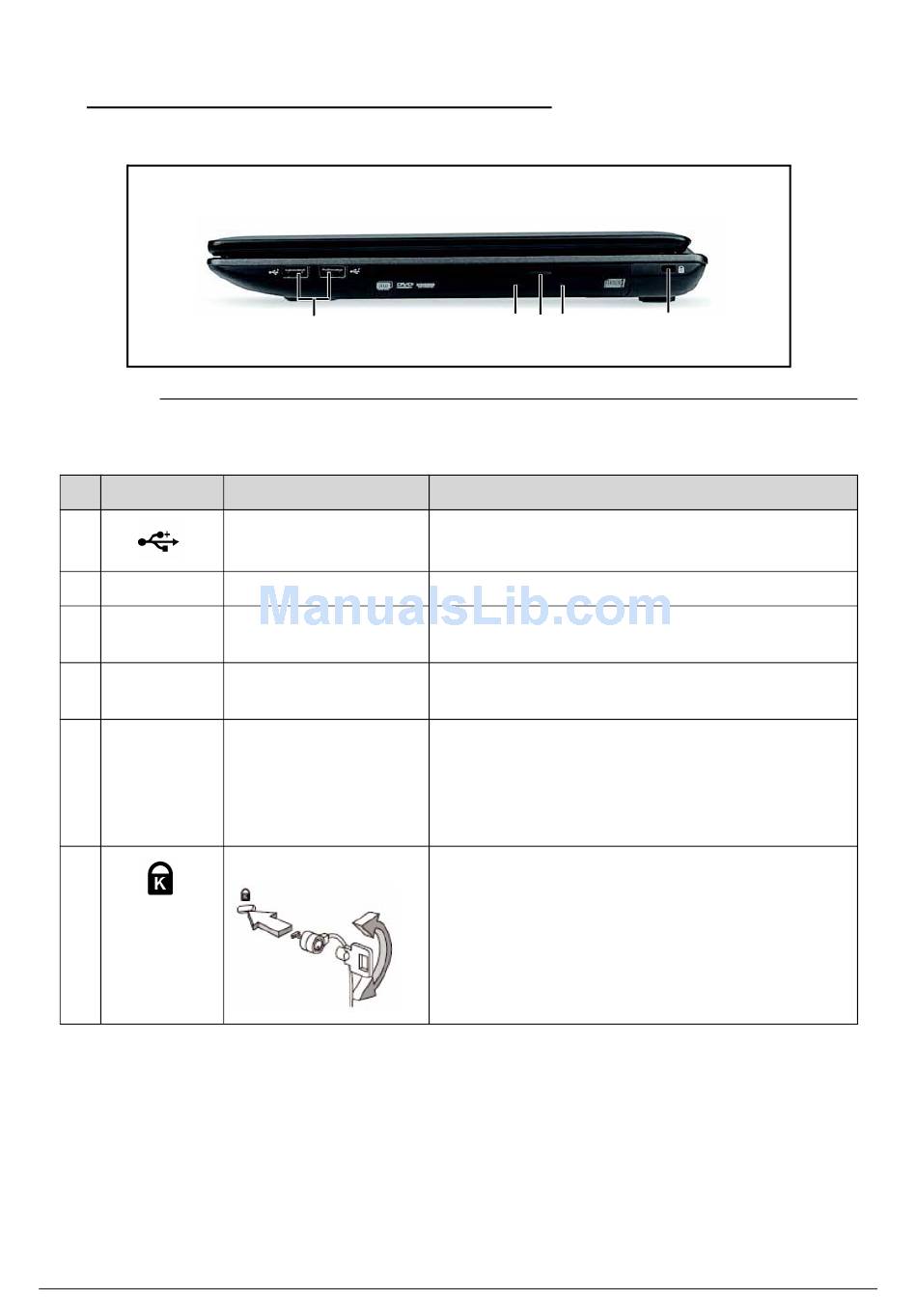

Figure 1-5. Right View
Table 1-5. Right View
# Icon
1
2
3
4
5
6
Hardware Specifications and Configurations
1
Item
USB 2.0 ports
Optical drive
Optical disk access
indicator
Optical drive eject
button
Emergency eject hole
Kensington lock slot
0
2 3 4 5
Description
Connect to USB 2.0 devices (e.g. USB mouse,
USB camera).
Internal optical drive; accepts CDs or DVDs.
Lights up when the optical drive is active.
Ejects the optical disk from the drive.
Ejects the optical drive tray when the computer is
turned off.
Note: Insert a paper clip into the emergency eject
hole to eject the optical drive tray when the
computer is off.
Connects to a Kensington compatible computer
security lock.
Note: Wrap the computer security lock cable
around an immovable object such as a table or
handle of a locked drawer. Insert the lock into the
notch and turn the key to secure the lock. Some
keyless models are also available.
6
