Mainboard Removal

Prerequisite:
ODD Board Removal
Bluetooth Board Removal
USB Board Removal

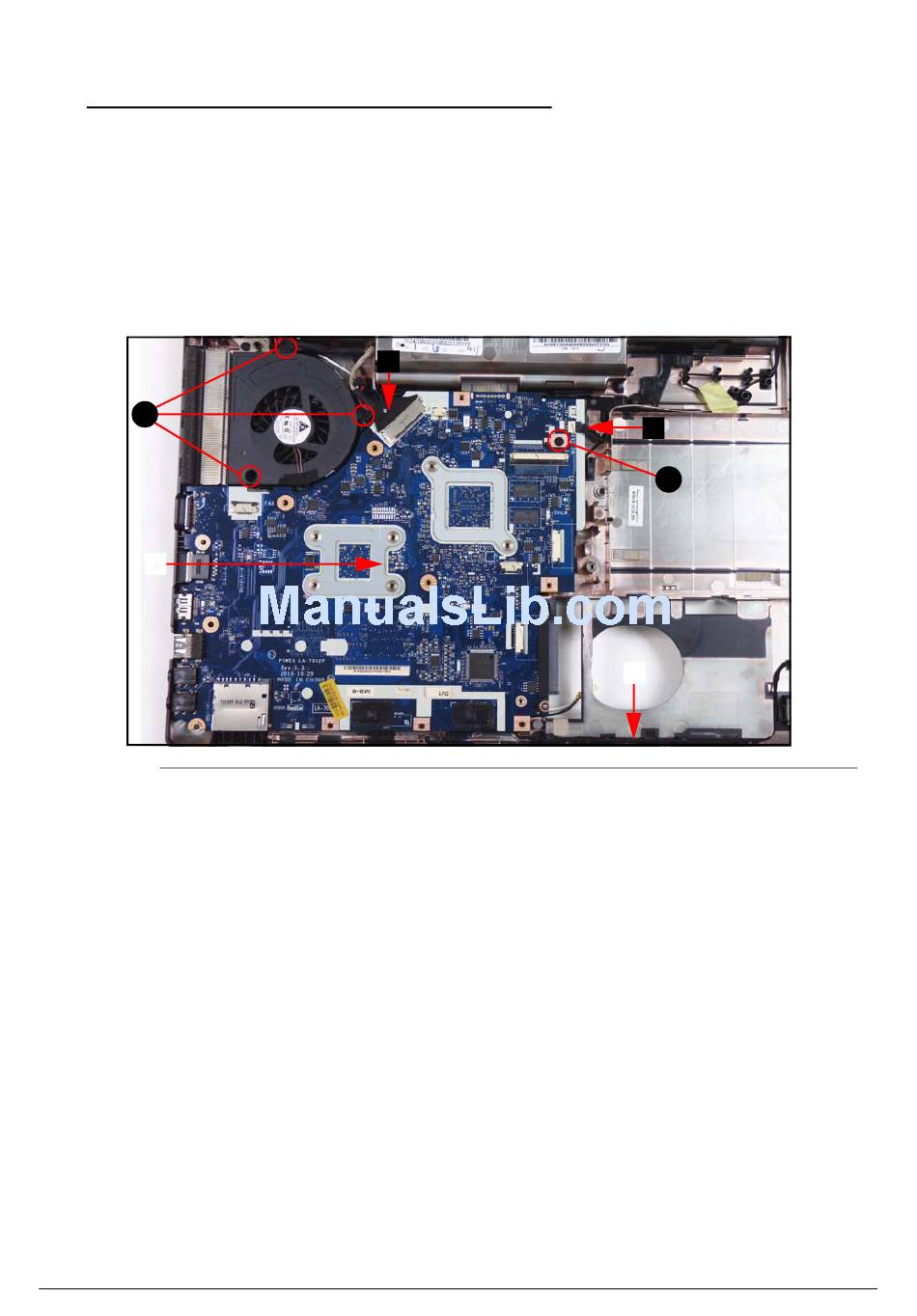

1. Find mainboard (A) on lower cover. (Figure 3-28)
E
A
Figure 3-28. Mainboard Location
2. Remove Bluetooth cable (B) from cable guides. (Figure 3-28)
3. Disconnect LVDS cable from mainboard connector (C). (Figure 3-28)
4. Disconnect microphone cable from mainboard connector (D). (Figure 3-28)
5. Remove four (4) screws (E) from the mainboard and thermal module. (Figure 3-28)
6. Put computer with the LCD module flat on the surface.
3-32
C
D
E
B
(Figure 3-29)
