Bluetooth Board Removal

Prerequisite:
Upper Cover Removal
1. Find Bluetooth board (B) on upper cover.
2. Disconnect Bluetooth cable (B) from Bluetooth board connector (A). (Figure 3-27)

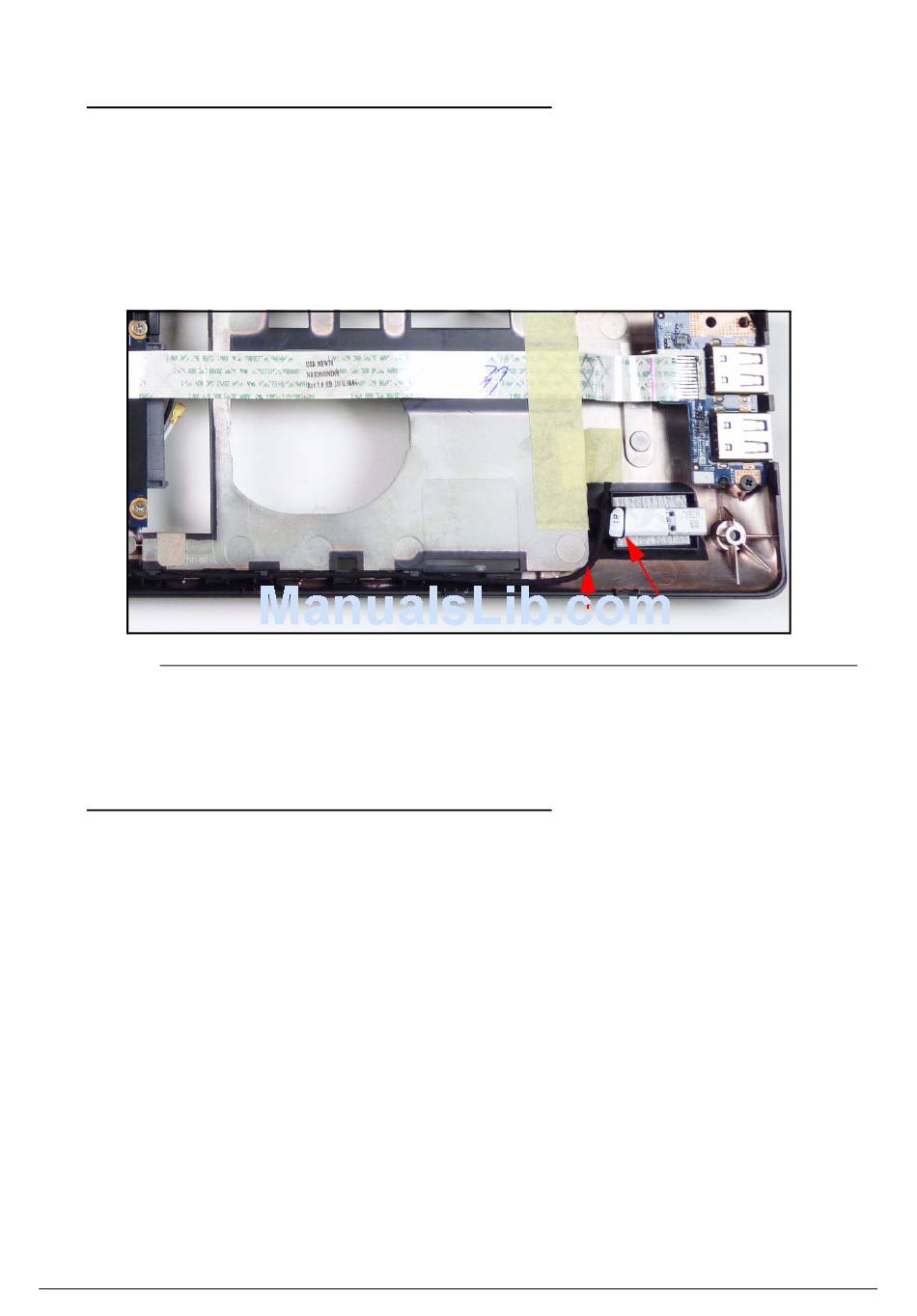

Figure 3-27. Bluetooth Module
3. Remove the Bluetooth board from the lower cover. (Figure 3-27)

Bluetooth Board Installation

1. Connect Bluetooth cable (B) to Bluetooth board connector (A). (Figure 3-27)
2. Install and secure Bluetooth board to lower cover. (Figure 3-27)
3. Install upper cover.
Machine Maintenance Procedures
0
(Figure 3-24)
B
B
A
3-31
