WLAN (Wireless Local Area Network) Board Removal

Prerequisite:
Base Door Removal
1. Find WLAN board (B) in the component bay.
2. Disconnect main (B) and auxiliary (A) antenna cables from WLAN board. (Figure 3-12)

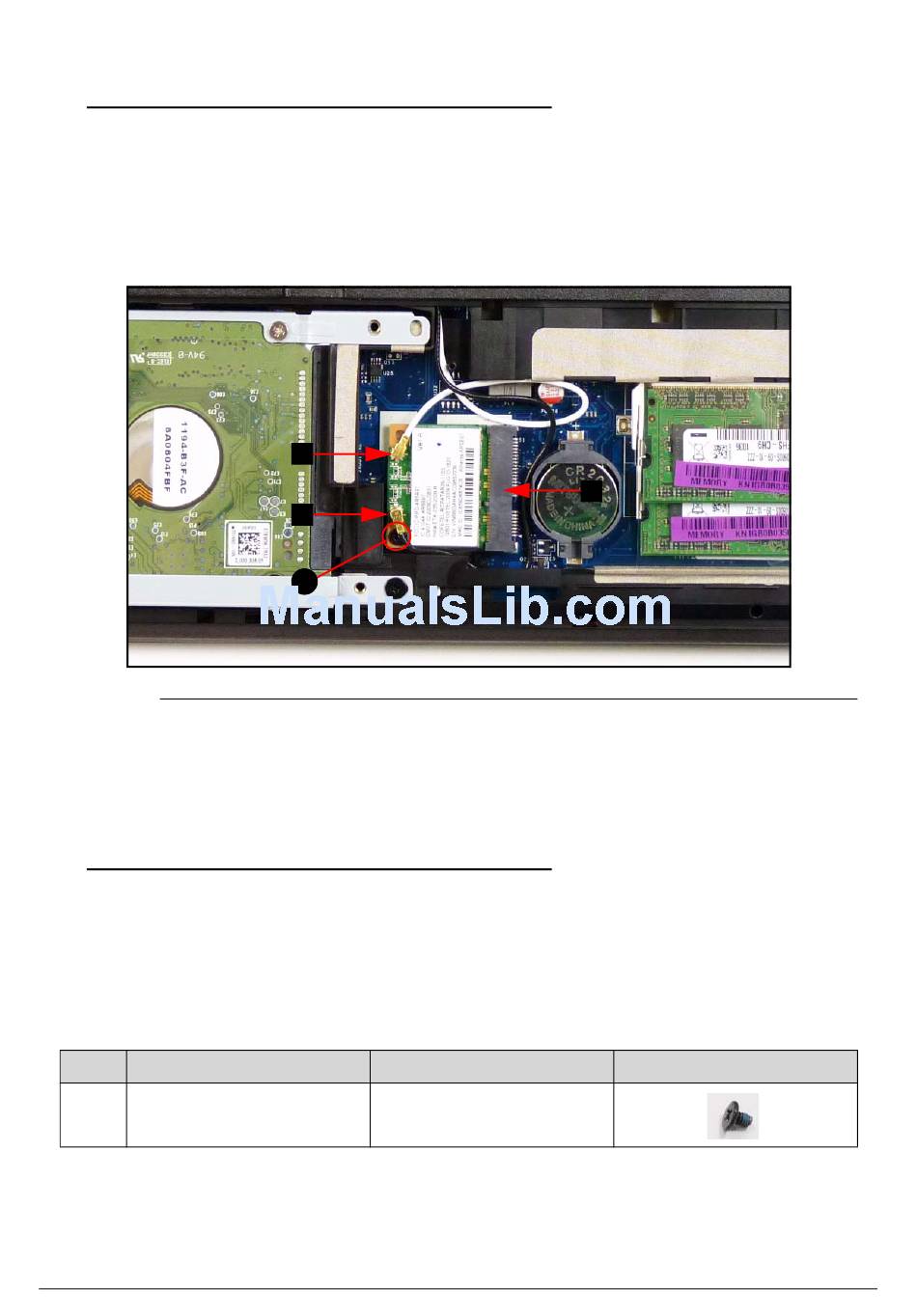

Figure 3-12. WLAN Board
3. Remove one (1) screw (C). (Figure 3-12)
4. Remove WLAN board from mainboard connector (D). (Figure 3-12)

WLAN Board Installation

1. Put WLAN board into mainboard connector (D). (Figure 3-12)
2. Install and secure one (1) screw (D). (Figure 3-12)
3. Install main (B) and auxiliary (A) antenna cables on WLAN board. (Figure 3-12)
4. Install base door.
ID Size
D M2.5*3.0
