HDD Module Installation

1. Put HDD brackets onto HDD module.
2. Install four (4) screws (C) to secure HDD brackets (D) to HDD module.
3. Put HDD module into component bay.
4. Slide the HDD module towards the mainboard connector (B) to secure it.
5. Install one (1) screw (A) to secure HDD module.
6. Install base door.

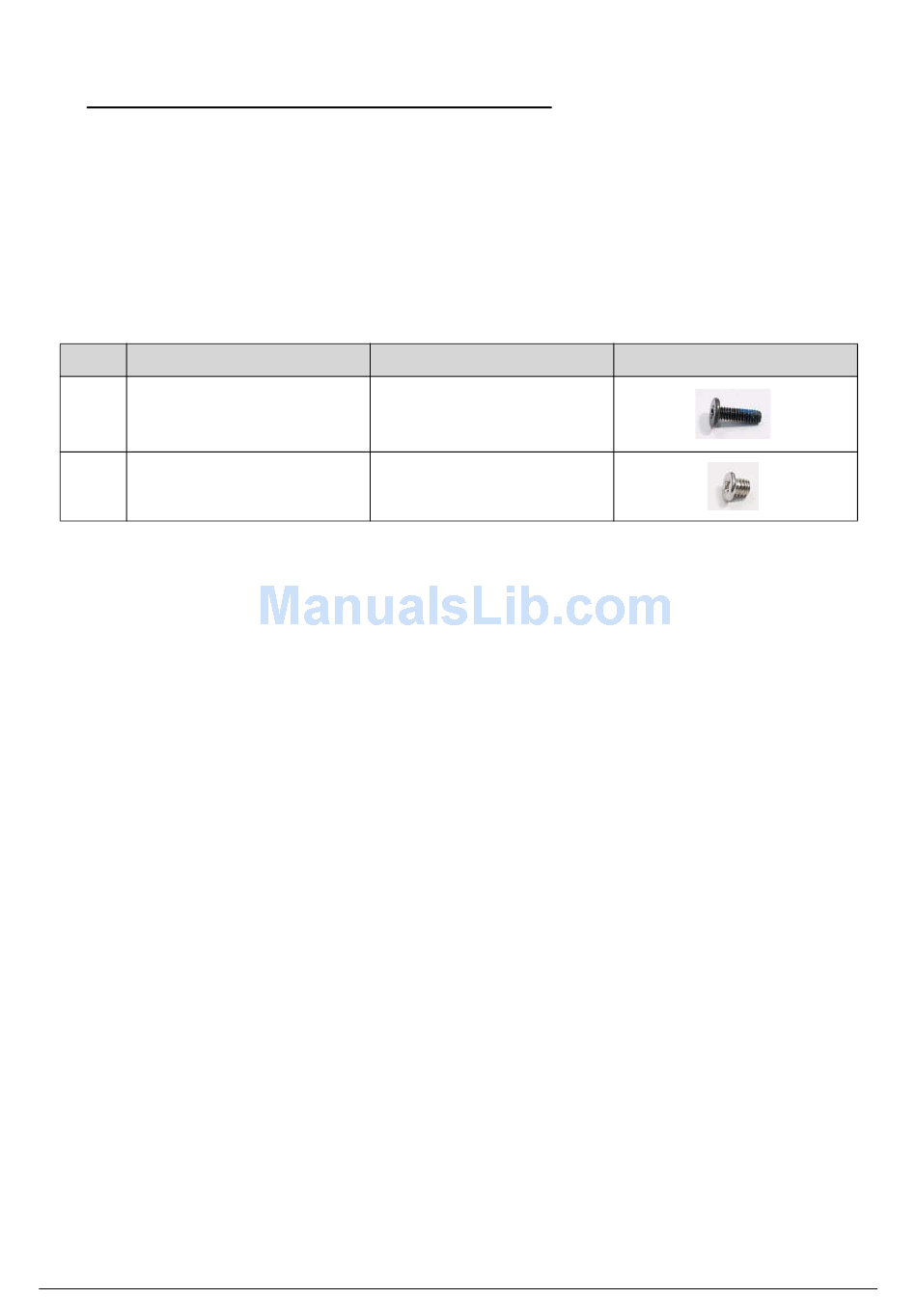

ID Size
A M2.5*8.0
C M3.0*3.0
3-20
(Figure 3-15)
(Figure 3-14)
(Figure 3-14)
Quantity
1
4
Machine Maintenance Procedures
0
(Figure 3-15)
(Figure 3-14)
Screw Type
