4 . 8 . 5 L A N t o
4 . 8 . 5 L A N t o
Here you can manage LAN-to-LAN connections by maintaining a table of connection profiles.
You may set parameters including specified connection peer IP, connection type and
corresponding security methods, etc.

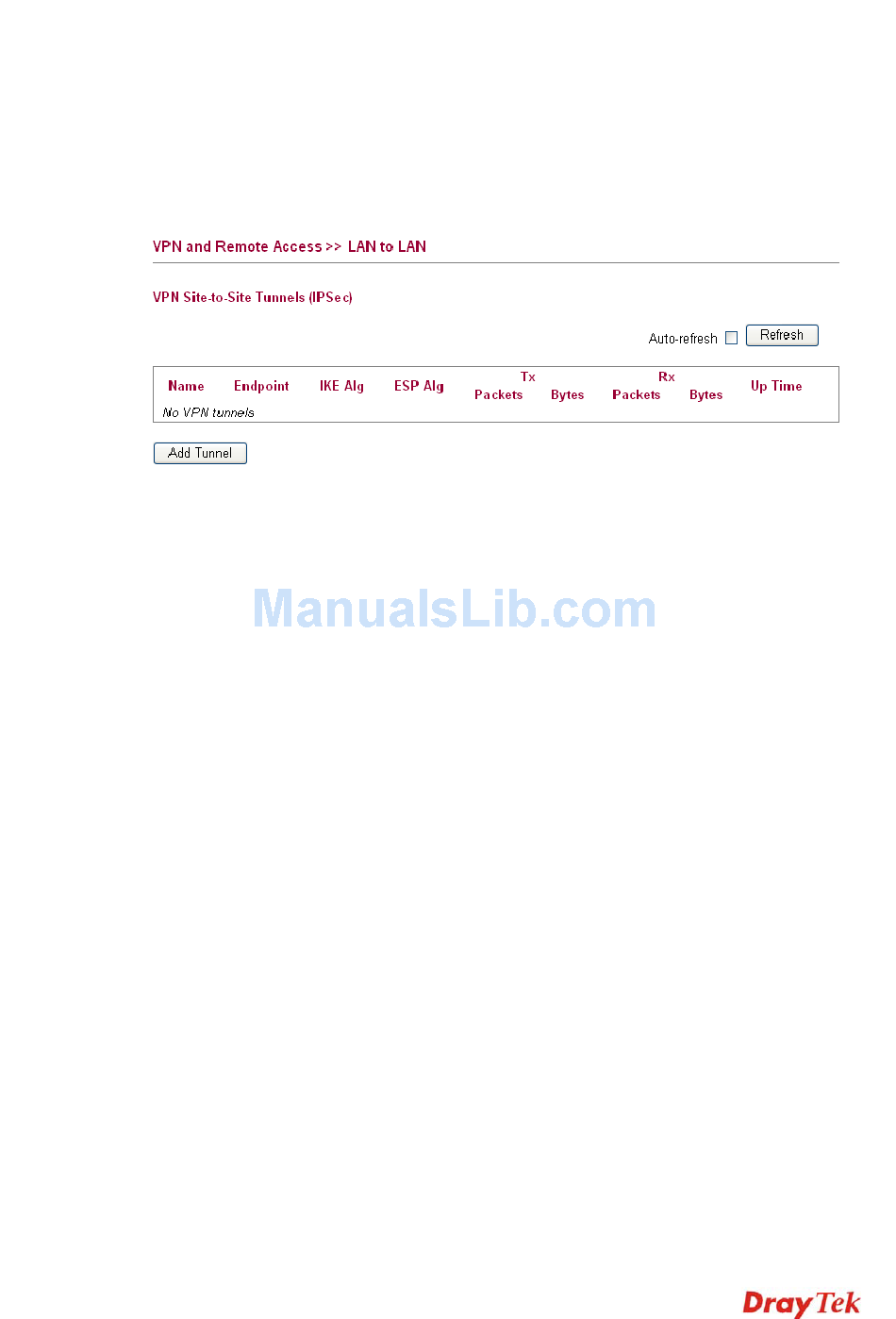

The router supports 2 VPN tunnels simultaneously and provides up to 2 profiles. The
following figure shows the summary table.
Name
Endpoint
IKE Alg
ESP Alg
Tx /Rx
Up Time
Vigor2750 Series User's Guide
L A N
L A N
Indicate the name of the LAN-to-LAN profile.
Display the IP address of the VPN client.
Display the encryption and authentication algorithm used
during phase 1 of the VPN connection Establishment. The
algorithm is used during exchange of key exchange.
Display the encryption and authentication algorithm used
during phase 2 of the VPN connection Establishment. This
algorithm is used for transporting data, and the choice will
affect the performance of the VPN tunnel.
Display the incoming and outgoing packets information for
such tunnel.
Display the connection time for such VPN tunnel.
185
