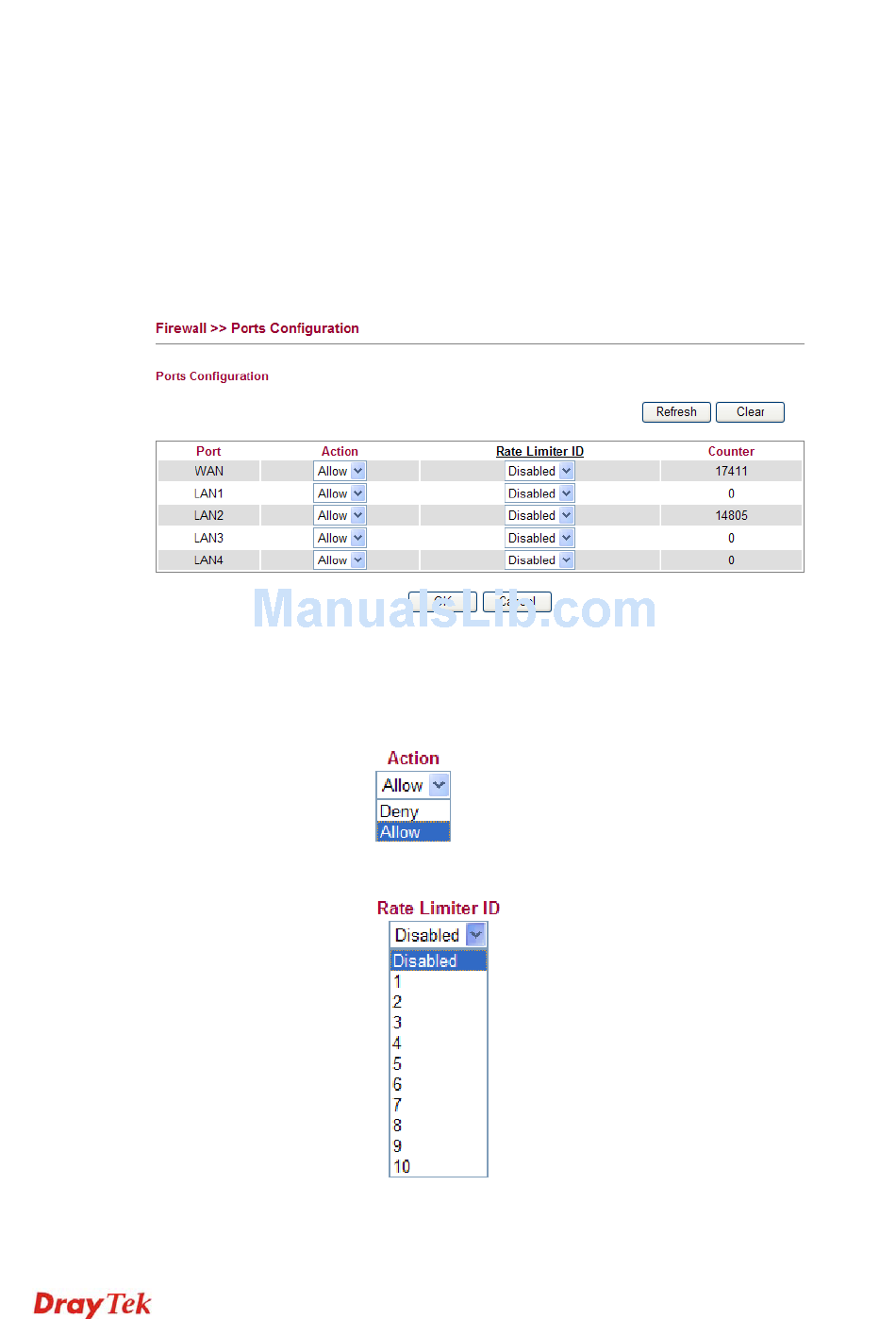

This page is used to configure the ACL (Access Control List) parameters for each port. These
parameters will affect data packets received on a port unless the data packets match a specific
ACE (Access Control Entry).
Port
Action
Rate Limiter ID
Counter
The unit is packet per second (pps). Use the drop down list to
set the rate for data transmission. The rate is 2^n, where n is
equal to or less than 15, or "No Limit". The unit of the rate is
pps (packets per second). The configuration indicates the
permitted packet rate for unicast, multicast, or broadcast traffic
across the switch.
i g u r a t i o n
i g u r a t i o n
There is one DSL port and 4 LAN ports in Vigor2750. Here
each port will be configured with different ID, action, rate
limiter ID, port copy and etc.
Select whether forwarding is permitted ("Allow") or denied
("Deny"). The default value is "Allow".
Select a rate limiter to apply to this port. Available settings
include Disabled, and 1 to 10. The default value is Disabled.
Counts the number of frames that match this Access Control
Entry (ACE).
