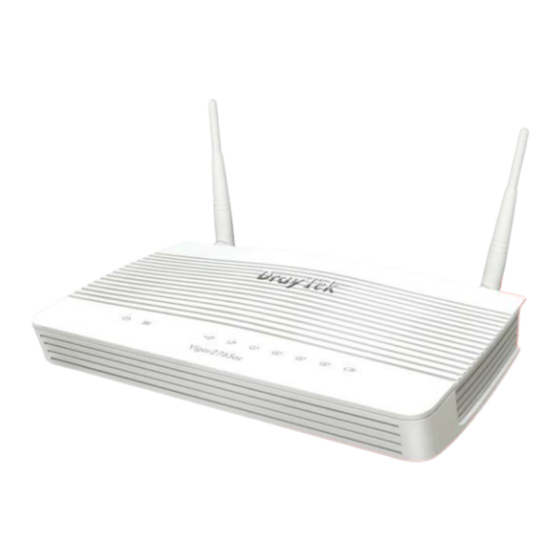

Draytek Vigor2765 Series Quick Start Manual
35b security router
Hide thumbs
Also See for Vigor2765 Series:
- Quick start manual (31 pages) ,
- Quick start manual (28 pages) ,
- Quick start manual (19 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draytek Vigor2765 Series
Summary of Contents for Draytek Vigor2765 Series

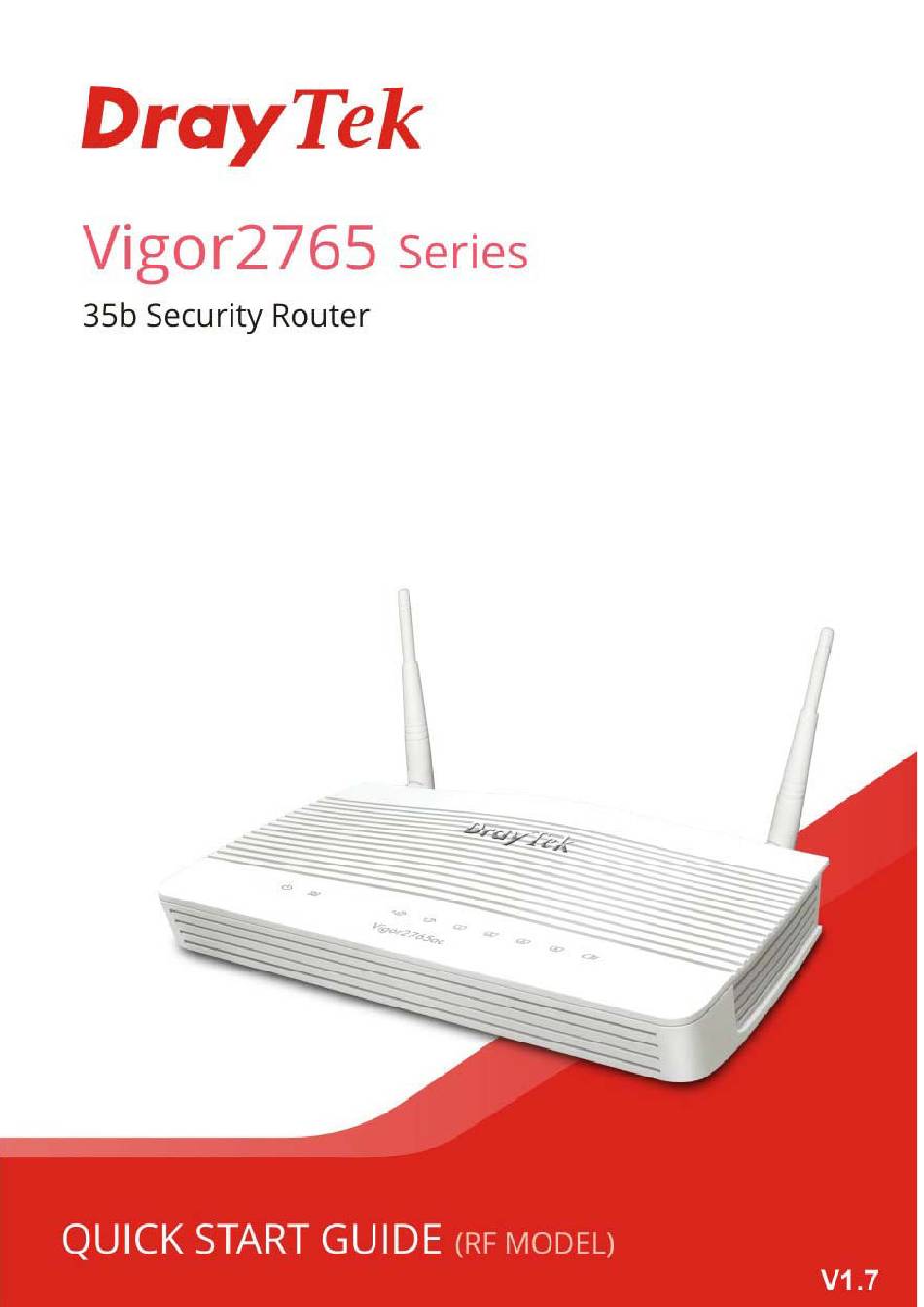

- Page 2 Vigor2765 35b Series Router Quick Start Guide (For RF Model) Version: 1.7 Firmware Version: V4.4.2.1 (For future update, please visit DrayTek web site) Date: June 27, 2023...
- Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
- Page 4 This product is designed for DSL and 2.4GHz /5GHz WLAN network throughout the EC region. Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2765 series router is in compliance with Regulation SI 2017 No. 1206. Manufacturer: DrayTek Corp.
- Page 5 Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 6 88.6% 88.2% efficiency Efficiency at low load 73.6% 78.0% 81.3% 83.3% 83.7% 74.5% 80.5% 86.4% 85.4% No-load power 0.07W 0.07W 0.07W 0.07W 0.07W 0.07W 0.10W 0.07W 0.10W consumption External power supply (Power Adapter) information. For more update, please visit www.draytek.com.
-
Page 7: Table Of Contents
1. Package Content ....................1 2. Panel Explanation....................2 2.1 Vigor2765ac ..........................2 2.2 Vigor2765Vac ..........................4 2.3 Vigor2765ax ..........................6 3. Hardware Installation ................... 8 3.1 Network Connection for ac series ....................8 3.2 Network Connection for ax series ....................9 3.3 Wall-Mounted Installation for ac series .................. -
Page 8: Package Content
Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor router ac series & ax series Quick Start Guide, Antenna RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Annex A) -
Page 9: Panel Explanation
Status Explanation Blinking The router is powered on and running normally. The router is powered off. (Activity) The DSL link up, waiting for the Internet connection. Orange Slowly - The DSL connection is ready for training. Blinking (DSL) Quickly - The DSL connection is synchronizing. The router is ready to access to the Internet through DSL link. - Page 10 Interface Description WLAN WLAN On - Press the button and release it within 2 seconds. ON/OFF/WPS When the wireless function is ready, the green LED will be on. WLAN Off - Press the button and release it within 2 seconds to turn off the WLAN function.
-
Page 11: Vigor2765Vac
Status Explanation Blinking The router is powered on and running normally. The router is powered off. (Activity) The DSL link up, waiting for the Internet connection. Orange Slowly - The DSL connection is ready for training. Blinking (DSL) Quickly - The DSL connection is synchronizing. The router is ready to access to the Internet through DSL link. - Page 12 Interface Description WLAN WLAN On - Press the button and release it within 2 seconds. ON/OFF/WPS When the wireless function is ready, the green LED will be WLAN Off - Press the button and release it within 2 seconds to turn off the WLAN function. When the wireless function is not ready, the LED will be off.
-
Page 13: Vigor2765Ax
Status Explanation The system is not ready or is failed. Blinking The system is ready and can work normally. Blinking with WLAN WPS is enabled and waiting for the response from the wireless client. The DSL link up, waiting for the Internet connection. - Page 14 Interface Description Wireless band will be switched /changed according to the button pressed and released. For example, 2.4G (On) and 5G (On) – in default. 2.4G (Off) and 5G (On) – pressed and released the button once. WLAN ...
-
Page 15: Hardware Installation
This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Connect the DSL interface to the land line jack with a DSL line cable. Connect one port of 4-port switch to your computer with a RJ-45 cable. -
Page 16: Network Connection For Ax Series
Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45). Connect one port of 4-port switch to your computer with a RJ-45 cable. This device allows you to connect 4 PCs directly. Connect one end of the power cord to the power port of this device. Connect the other end to the wall outlet of electricity. -
Page 17: Wall-Mounted Installation For Ac Series
Vigor router has keyhole type mounting slots on the underside. Drill two holes on the wall. The distance between the holes shall be 168mm. Fit screws into the wall using the appropriate type of wall plug. With the screws installed, the router can be slotted into place. Note The recommended drill diameter shall be 6.5mm (1/4”). -
Page 18: Wall-Mounted Installation For Ax Series
Vigor router has keyhole type mounting slots on the underside. Drill two holes on the wall. The distance between the holes shall be 100.75mm. The recommended drill diameter shall be 6.5mm (1/4”). Fit screws into the wall using the appropriate type of screw plug. Hang the Vigor router directly onto the screws. -
Page 19: Software Configuration
- Trouble Shooting in the User’s Guide. Open a web browser on your PC and type http://192.168.1.1. A pop-up window will open to ask for username and password. Please type “admin/admin” as the Username/Password and click Login. Here, we take Vigor2765 series as an example. - Page 20 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. The first screen of Quick Start Wizard is entering login password. After typing the password, please click Next.
- Page 21 On the next page as shown below, please select the WAN interface that you use. If DSL interface is used, please choose WAN1; if Ethernet interface is used, please choose WAN2; if 3G USB modem is used, please choose WAN3. Then click Next for next step.
- Page 22 After finished the above settings, simply click Next. Please manually enter the Username/Password provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
- Page 23 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.
-
Page 24: Customer Service
If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to “support@draytek.com”. Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com.
