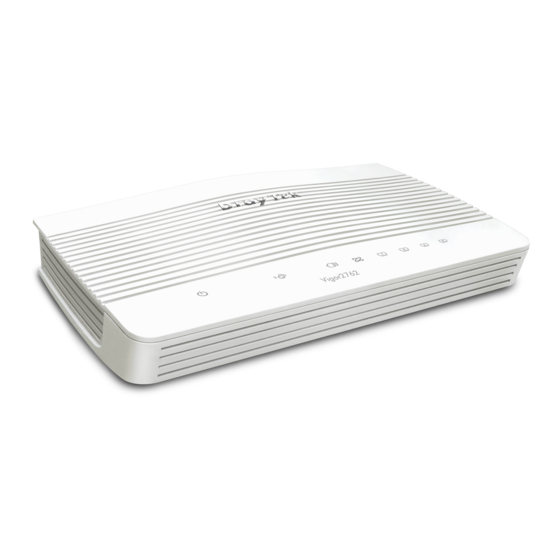

Draytek Vigor2762 Quick Start Manual

Adsl2/2+ & vdsl2 router
Hide thumbs Also See for Vigor2762:
Table of Contents

Advertisement

Quick Links

Download this manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vigor2762 and is the answer not in the manual?

Questions and answers

Related Manuals for Draytek Vigor2762

Summary of Contents for Draytek Vigor2762

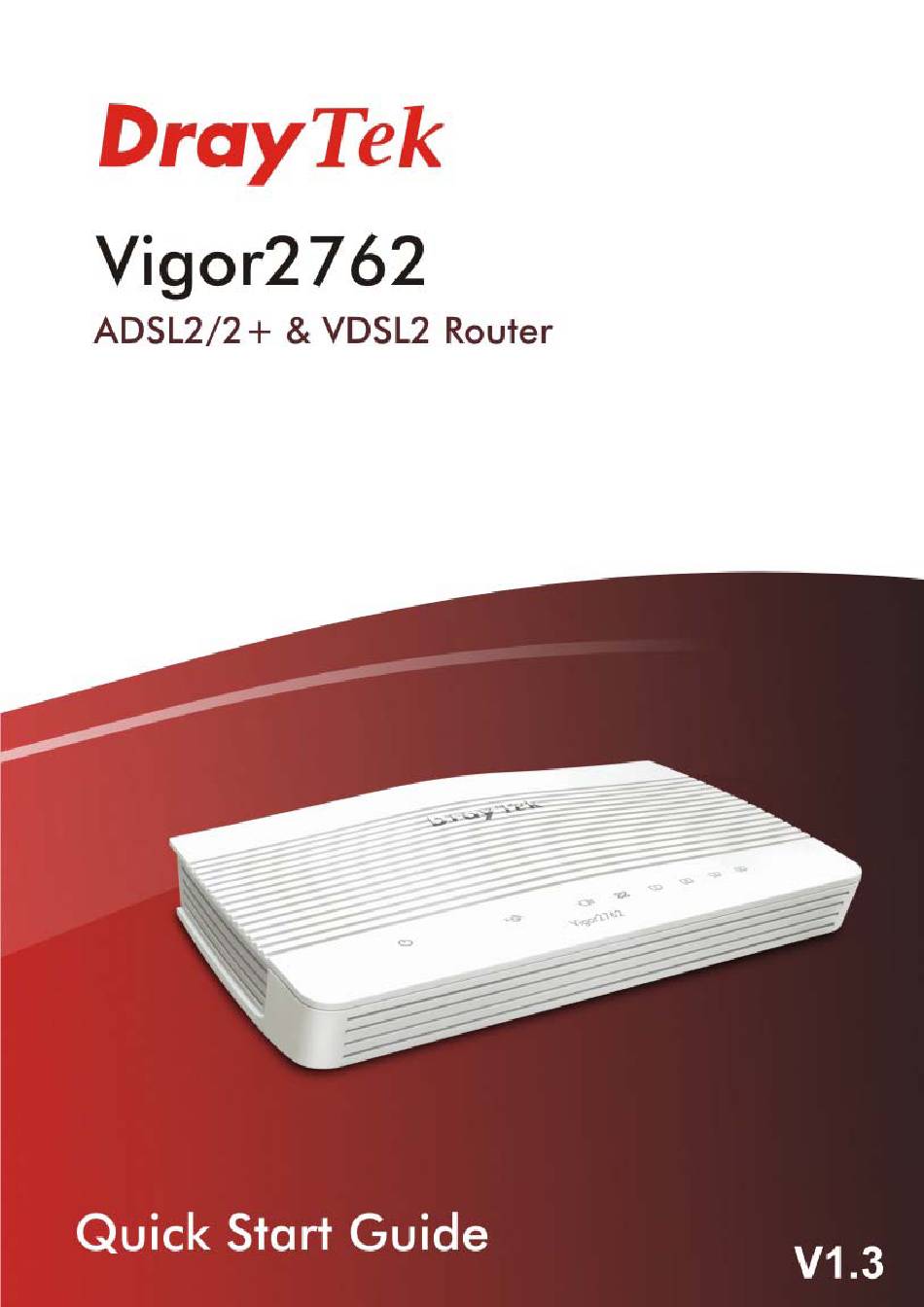

  • Page 2 Vigor2762 ADSL2/2+ & VDSL2 Router Quick Start Guide Version: 1.3 Firmware Version: V3.9.2 (For future update, please visit DrayTek web site) Date: January 9, 2020...
  • Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
  • Page 4 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu 300, Taiwan , R.O.C., declare under our sole responsibility that the product  Product name: ADSL2/2+ & VDSL2 Router  Model number: Vigor2762 ...
  • Page 5 (2) This device may accept any interference received, including interference that may cause undesired operation. Caution Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. More update, please visit www.draytek.com.

  • Page 6: Table Of Contents

    1. Introduction......................1 2. Package Content ....................2 3. Panel Explanation....................3 4. Hardware Installation ................... 5 4.1 Network Connection ........................5 4.2 Wall-Mounted Installation ......................6 5. Software Configuration ..................7 6. Customer Service ....................13 Be a Registered Owner ........................13 Firmware &...

  • Page 7: Introduction

    In addition, Vigor2762 supports two USB interfaces for connecting USB printer to share the printer or USB storage device for sharing files and 3G/4G backup services.

  • Page 8: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor router Quick Start Guide RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Annex A) RJ-11 to RJ-45 Cable (Annex B)

  • Page 9: Panel Explanation

    Status Explanation Blinking The router is powered on and running normally. The router is powered off. (Activity) A USB device is connected and active. (USB) Blinking The data is transmitting. The DSL port is connected. Blinking The router is ready. (DSL) (Slowly) Blinking...
  • Page 10 Interface Description Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole Factory Reset and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.

  • Page 11: Hardware Installation

    This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Connect the DSL interface to the land line jack with a DSL line cable. Connect one port of 4-port switch to your computer with a RJ-45 cable.

  • Page 12: Wall-Mounted Installation

    Vigor2762 has keyhole type mounting slots on the underside. A template is provided on the Vigor2762 packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction.

  • Page 13: Software Configuration

    To access Internet, please finish basic configuration after completing the hardware installation. 1. Connect the DSL line to Vigor Router and wait for a moment. 2. Login Vigor router WUI. 3. Check if Vigor router can get "SHOWTIME" with the DSL line via Online Status page.
  • Page 14 Or, download the other firmware from DrayTek Website  (www.draytek.com). DrayTek provides several firmware files. Each firmware has 2 different DSL modem codes. When the used modem code cannot get SHOWTIME, please try the different DSL modem codes in other firmware files and see if it can get SHOWTIME with your line.
  • Page 15 The Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. The first screen of Quick Start Wizard is entering login password. After entering the password, please click Next.
  • Page 16 On the next page, please select the WAN interface that you use. If DSL interface is used, please choose WAN1; if Ethernet interface is used, please choose WAN2; if 3G USB modem is used, please choose WAN3. Then click Next for next step. WAN1, WAN2 and WAN3 will bring up different configuration page.
  • Page 17 After finished the above settings, simply click Next. Please manually enter the Username/Password provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 18 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.

  • Page 19: Customer Service

    If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to “support@draytek.com”. Web registration is preferred. You can register your Vigor router via http://www.draytek.com.
