Draytek VIGOR VIGOR2750 User Manual page 61

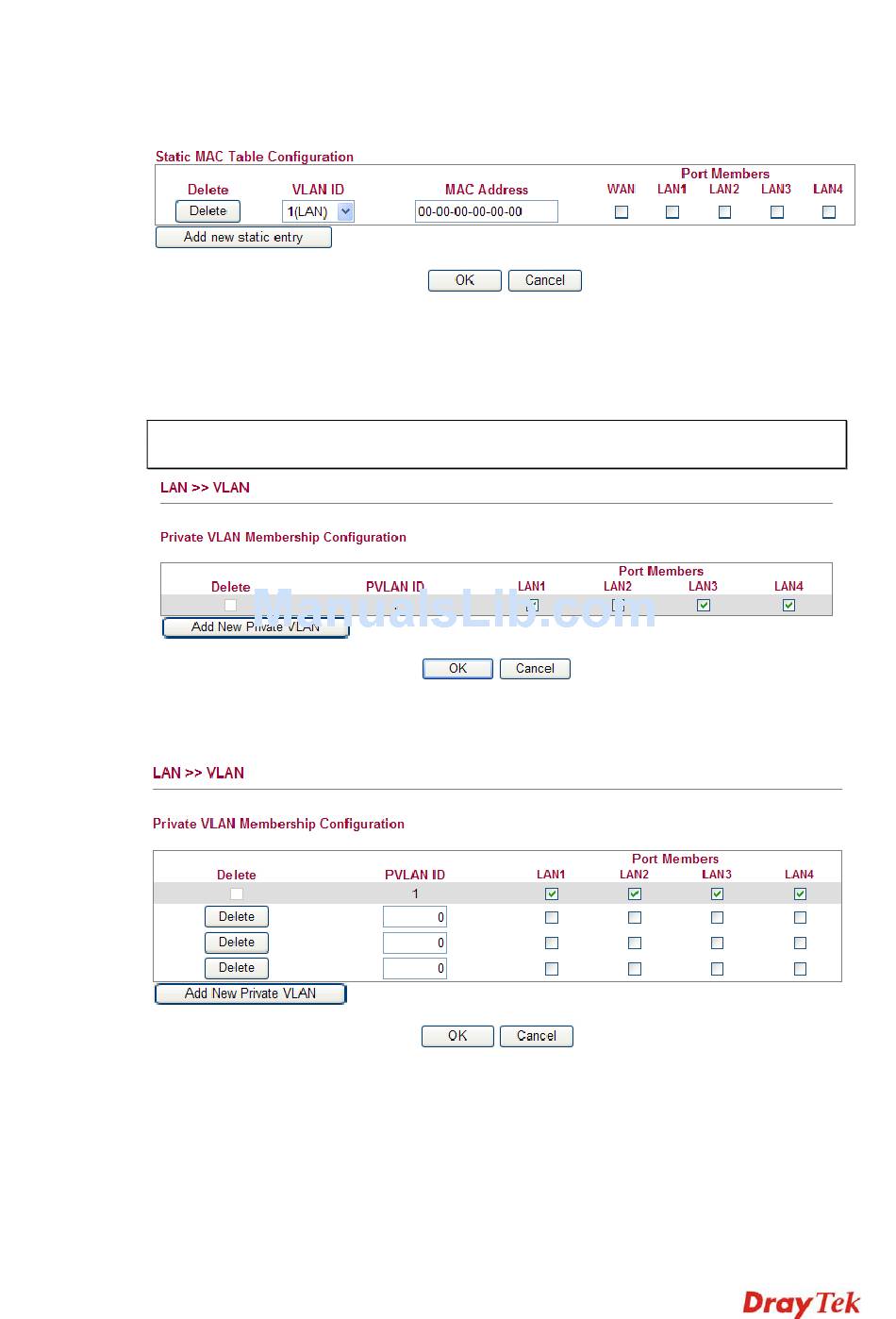

To add a new static MAC entry, click Add new static entry. A new entry will be shown as
follows. Choose VLAN ID and type a new MAC address. Next, specify port member for this
table. Finally, click OK to save the changes.
3 . 3 . 4 V L A N
3 . 3 . 4 V L A N
Virtual LAN function provides you a very convenient way to manage hosts by grouping them
based on the physical port. You can also manage the in/out rate of each port. Go to LAN page
and select VLAN. The following page will appear. VLAN function is enabled in default.
Note: For the VALN feature in LAN is port-based, the available numbers for PVLAN ID
can be 1-4.
Add New Private VLAN
Vigor2750 Series User's Guide
Click this button to add a new private VLAN. The router allows
you to add up to 4 VLAN.
51
