The UPnP (Universal Plug and Play) protocol is supported to bring to network connected
devices the ease of installation and configuration which is already available for directly
connected PC peripherals with the existing Windows 'Plug and Play' system. For NAT routers,
the major feature of UPnP on the router is "NAT Traversal". This enables applications inside
the firewall to automatically open the ports that they need to pass through a router. It is more
reliable than requiring a router to work out by itself which ports need to be opened. Further,
the user does not have to manually set up port mappings or a DMZ. UPnP is available on
Windows XP and the router provide the associated support for MSN Messenger to allow full
use of the voice, video and messaging features.
Enable UPnP
Download Speed
Upload Speed
After setting Enable UPnP setting, an icon of IP Broadband Connection on Router on
Windows XP/Network Connections will appear. The connection status and control status will
be able to be activated. The NAT Traversal of UPnP enables the multimedia features of your
applications to operate. This has to manually set up port mappings or use other similar
methods. The screenshots below show examples of this facility.
Display current IGMP groups. Maximum number of group for
each VLAN can be set is 128.
Display the LAN ports in this group.
Click this button to refresh the page immediately.
Click this button to clear the settings on this page.
i g u r a t i o n
i g u r a t i o n

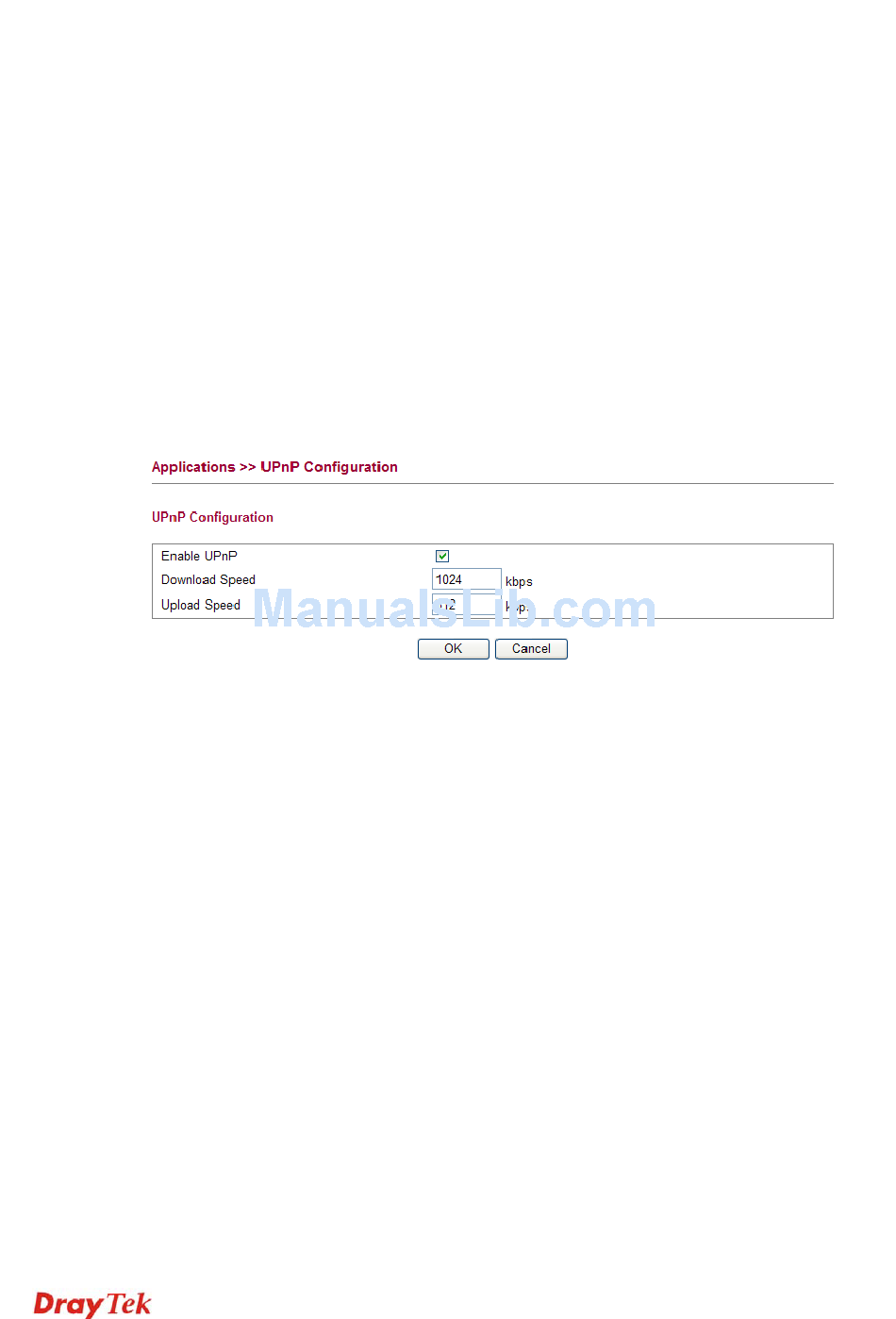

Enable UPnP function. You have to type the download and
upload speed.
Enter the maximum sustained WAN download speed in
kilobits/second. Such information can be requested by UPnP
clients.
Enter the maximum sustained WAN upload speed in
kilobits/second. Such information can be requested by UPnP
clients.
