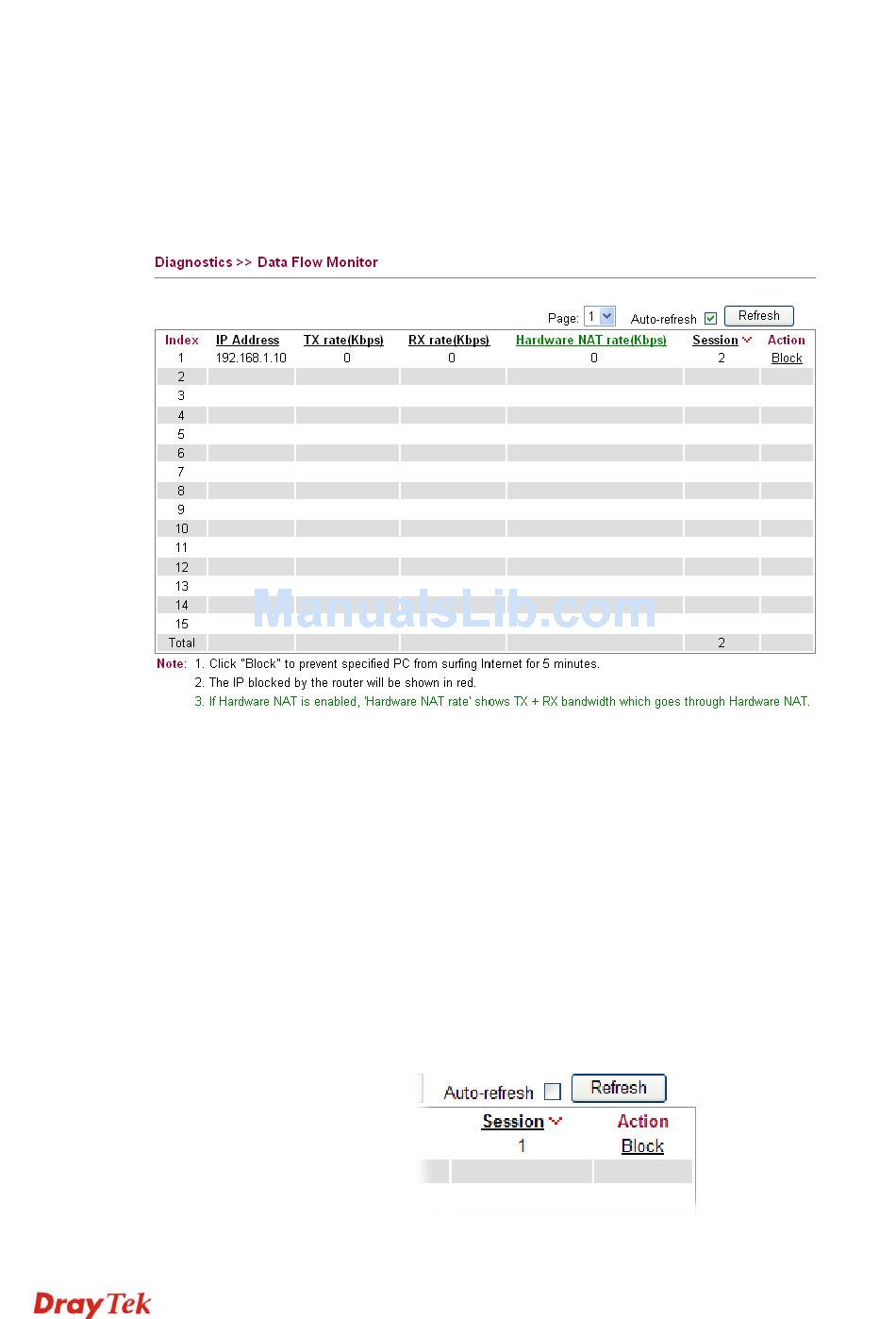

This page displays the running procedure for the IP address monitored and refreshes the data
in an interval of several seconds. The IP address listed here is configured in Bandwidth
Management. You have to enable IP bandwidth limit and IP session limit before invoke Data
Flow Monitor. If not, a notification dialog box will appear to remind you enabling it.
Click Diagnostics and click Data Flow Monitor to open the web page. You can click IP
Address, TX rate, RX rate or Session link for arranging the data display.
Auto-refresh
Refresh
Index
IP Address
TX rate (kbps)
RX rate (kbps)
Hardware NAT rate
Sessions
Action
M
o
n
i
t
o
r
M
o
n
i
t
o
r
Check it to enable auto-refresh function.
Click this link to refresh this page manually.
Display the number of the data flow.
Display the IP address of the monitored device.
Display the transmission speed of the monitored device.
Display the receiving speed of the monitored device.
Display the data processing rate of the monitored device if
hardware NAT is enabled.
Display the session number that you specified in Limit
Session web page.
Block - can prevent specified PC accessing into Internet
within 5 minutes.
Unblock – the device with the IP address will be blocked
