1 . 2 . 2 F o r V i g o r 2 7
1 . 2 . 2 F o r V i g o r 2 7
5 0 n
5 0 n

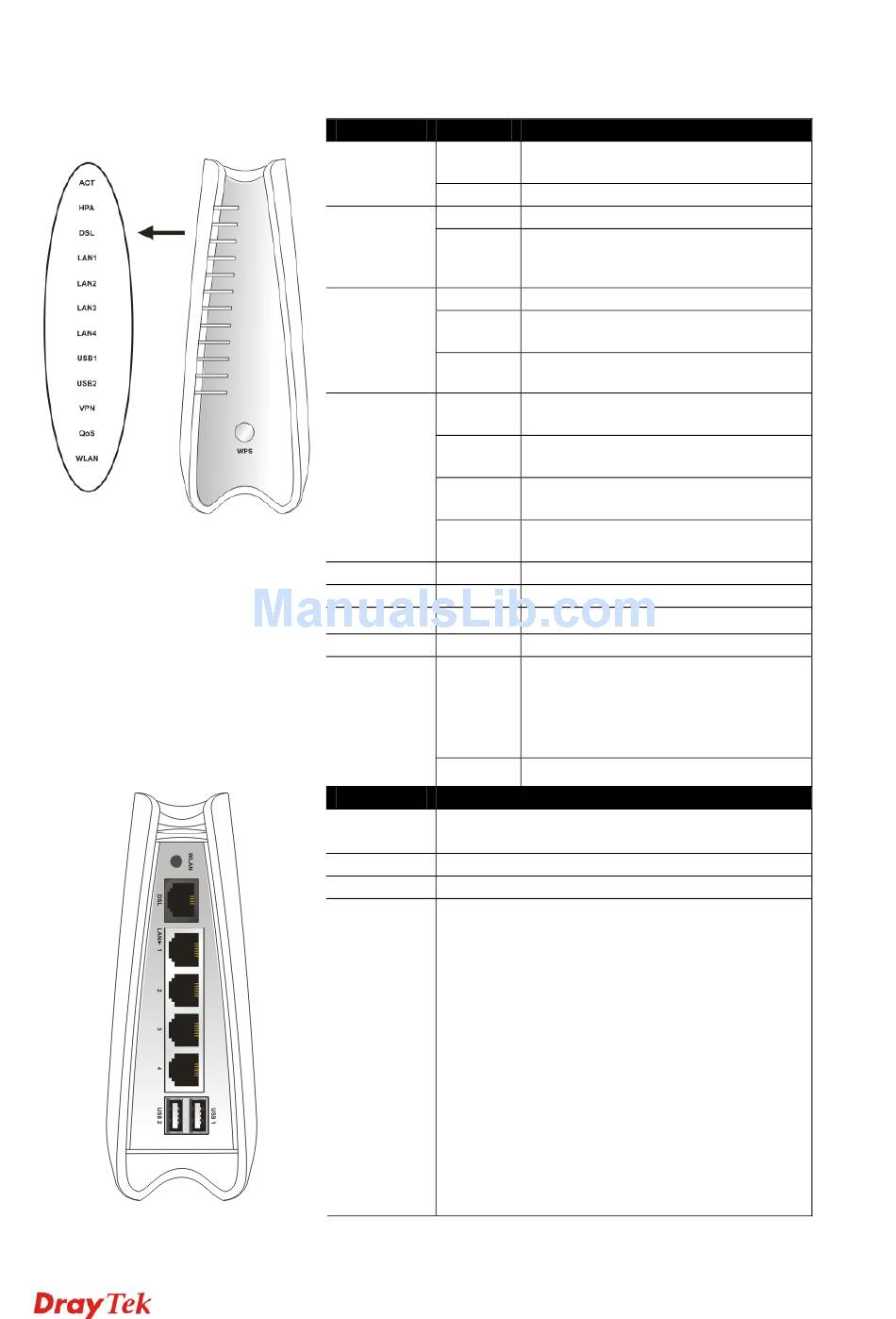

LED
ACT
(Activity)
HPA
(Hardware
Packet
Accelerate)
DSL
LAN1/2/3/4
USB1/2
VPN
QoS
WLAN
WPS Button
Interface
WLAN
DSL
LAN (1-4)
USB (1-2)
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On Hardware NAT is enabled.
Off Hardware NAT is disabled.
On The DSL port is connected.
Blinking The router is ready.
(Slowly)
Blinking The connection is training.
(Quickly)
On The port is connected with 1000Mbps.
(Green)
Blinking The data is transmitting.
(Green)
On The port is connected with 100Mbps.
(Orange)
Blinking The data is transmitting.
(Orange)
On A USB device is connected and active.
On The VPN tunnel is active.
On The QoS function is active.
On Wireless access point is ready.
On Press this button for 2 seconds to wait
for client device making network
connection through WPS. When the
LED lights up, the WPS connection
will be on.
Off The WPS is off.
Description
Press the button once to enable (WLAN LED on) or
disable (WLAN LED off) wireless connection.
Connector for accessing the Internet.
Connectors for local network devices.
Connector for USB storage device (Pen
Driver/Mobile HD) or printer or 3G backup.
4
Vigor2750 Series User's Guide
