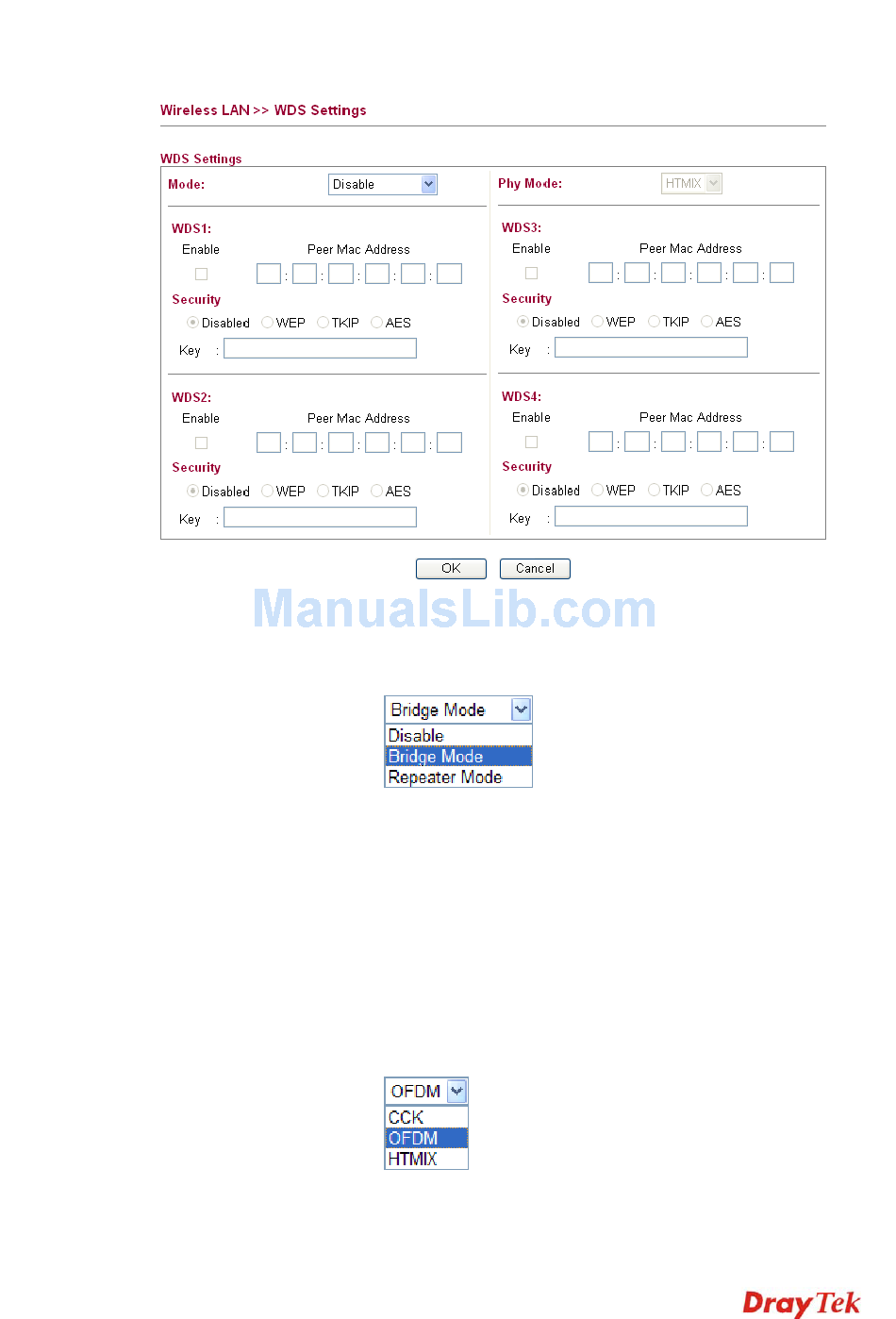

Click WDS from Wireless LAN menu. The following page will be shown.
Mode
Security
Key
Peer Mac Address
Phy Mode
Vigor2750 Series User's Guide
Choose the mode for WDS setting. Disable mode will not
invoke any WDS setting. Bridge Mode is designed to
fulfill the first type of application. Repeater Mode is for
the second one.
There are four types for security, Disabled, WEP, TKIP
and Key or Peer Mac Address field valid or not. Choose
one of the types for the router. Please disable the unused
link to get better performance.
Type 8 ~ 63 ASCII characters or 64 hexadecimal digits
leading by "0x".
Four peer MAC addresses are allowed to be entered in this
page at one time.
There are three types of transmission rates developed by
different techniques for Phy Mode. Data will be transmitted
via communication channel.
CCK – If 802.11b wireless mode is used, please choose
such type as the Phy Mode.
OFDM – If 802.11g wireless mode is used, please choose
201
