Vigor2750 series offers multi-VLAN function to make the data transmission with security.
Data transmitting through the WAN port for connecting to Internet can be tagged with an ID
number specified here for ensuring the security. In addition, each LAN port also can be tagged
with an ID number in local network to reach the goal of protection.
If all the boxes are checked, it means that Internet connection and data transmission can be
done via 4 VLAN groups.

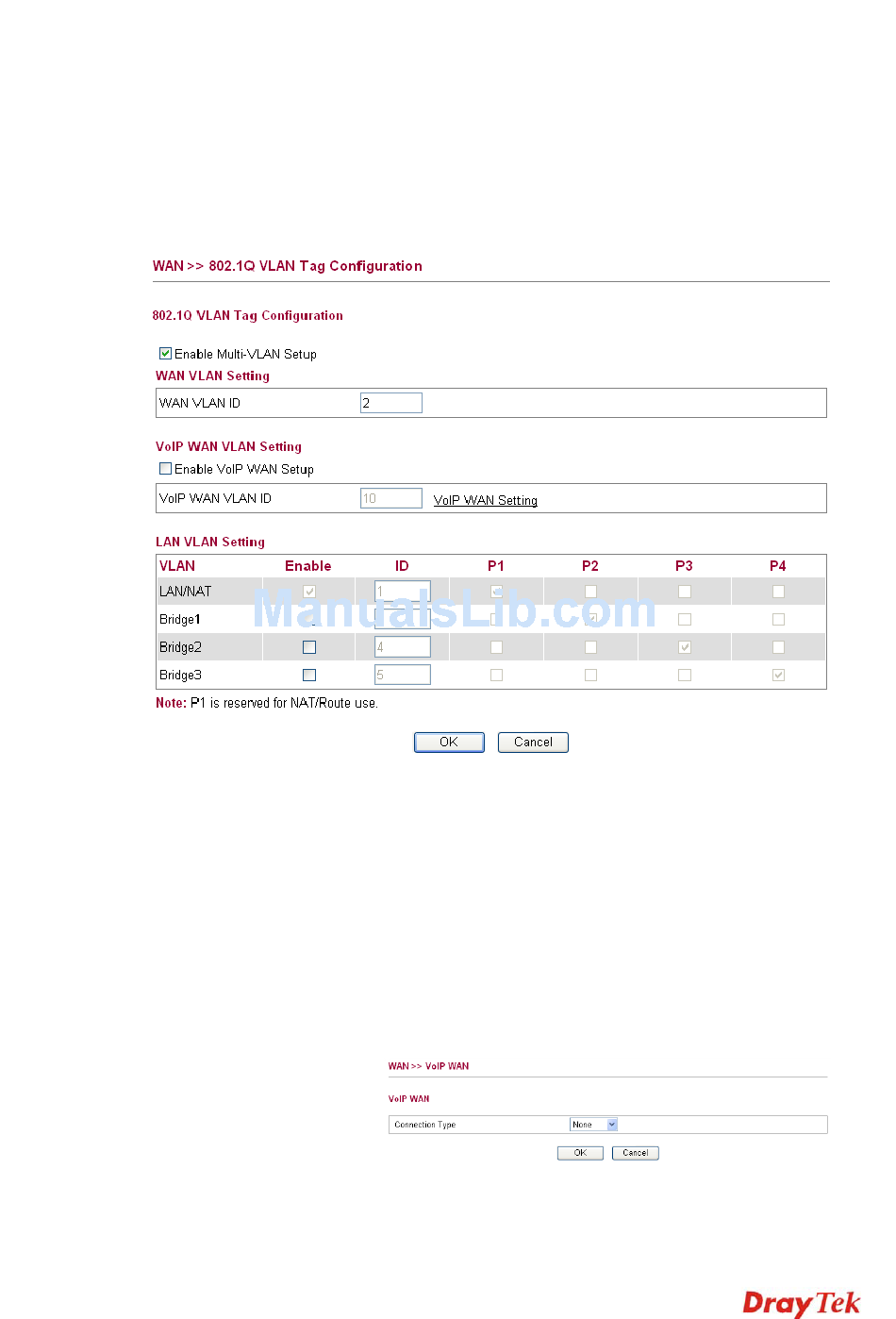

Enable Multi-VLAN Setup
WAN VLAN ID
Enable VoIP WAN Setup
VoIP WAN VLAN ID
LAN/NAT
Vigor2750 Series User's Guide
A N
A N
Check the box to enable Multi-VLAN configuration.
Data sent out through the WAN port will be tagged with
VLAN ID number specified here. The range of ID number
you can type is from 2 – 4096.
Check the box to enable VoIP WAN configuration. Such
feature is available only for "v" model.
Voice sent out through the WAN port will be tagged with
VLAN ID number specified here. The range of ID number
you can type is from 2 – 4096.
VoIP WAN Setting – Click this link to open VoIP WAN
setting.
Such value is constant and fixed. All the data will be
transmitted by NAT through DSL port.
