Security
Key
Peer Mac Address
Phy Mode
OK
3 . 8 U S B A p p l
3 . 8 U S B A p p l
USB diskette can be regarded as an FTP server. By way of Vigor router, users on LAN/WAN
can access, write and read data stored in USB diskette. After setting the configuration in USB
Application, you can type the IP address of the Vigor router and username/password created
in User>>User Configuration on the FTP client software. Thus, the client can use the FTP
site (USB diskette) through Vigor router.
3 . 8 . 1 U S B G e
3 . 8 . 1 U S B G e
At present, the Vigor router can support USB diskette with versions of FAT16 and FAT32
only. Therefore, before connecting the USB diskette into the Vigor router, please make sure
the memory format for the USB diskette is FAT16 or FAT32. It is recommended for you to
use FAT32 for viewing the filename completely (FAT16 cannot support long filename).
i c a t i o n
i c a t i o n
n e r a l S e t t i n g s
n e r a l S e t t i n g s
There are four types for security, Disabled, WEP, TKIP
and Key or Peer Mac Address field valid or not. Choose
one of the types for the router. Please disable the unused
link to get better performance.
Type 8 ~ 63 ASCII characters or 64 hexadecimal digits
leading by "0x".
Four peer MAC addresses are allowed to be entered in this
page at one time.

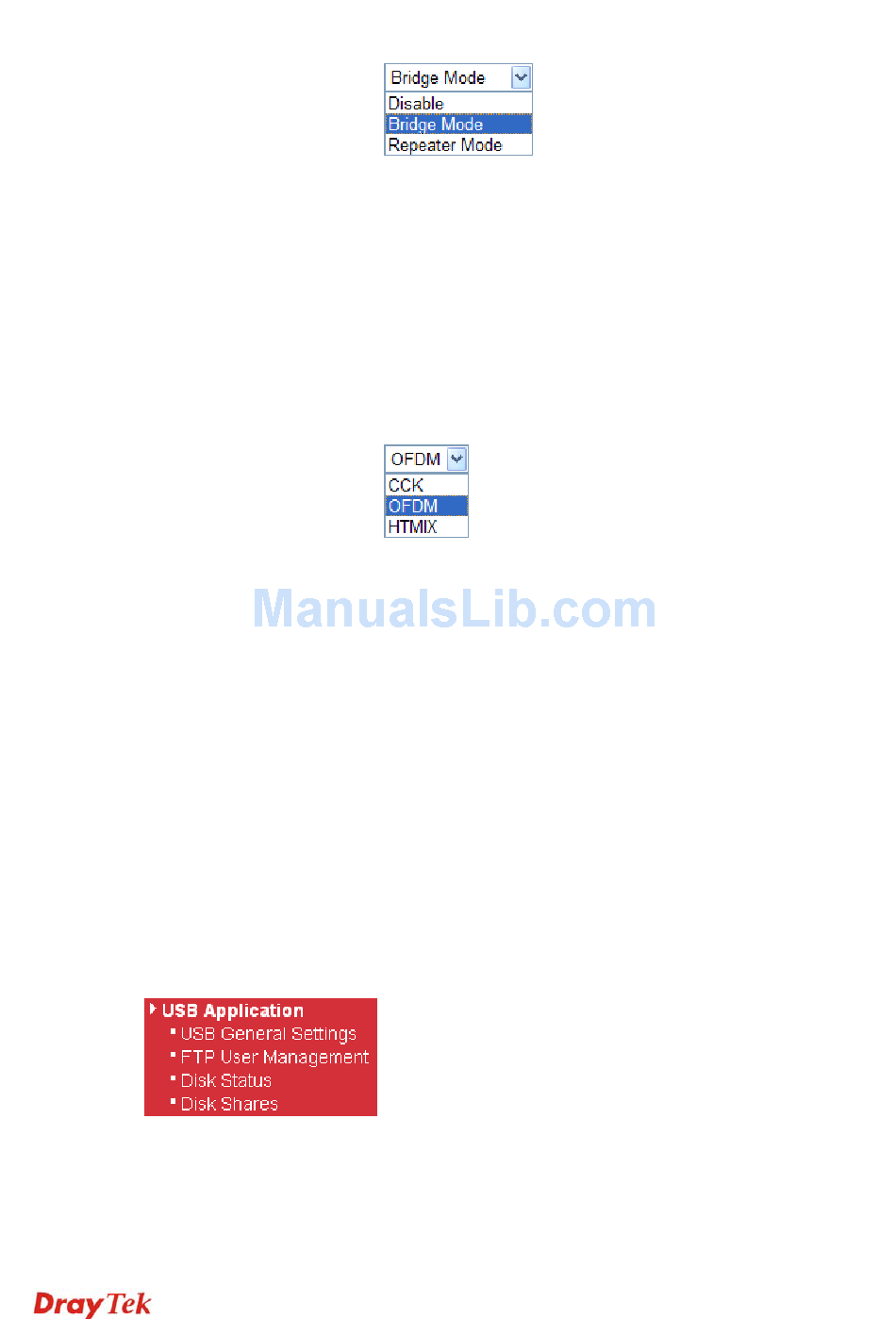

There are three types of transmission rates developed by
different techniques for Phy Mode. Data will be transmitted
via communication channel.
CCK – If 802.11b wireless mode is used, please choose
such type as the Phy Mode.
OFDM – If 802.11g wireless mode is used, please choose
such type as the Phy Mode.
HTMIX – If 802.11b/g/n wireless mode is used, please
choose such type as the Phy Mode.
Both clients (local and remote) must use the same Phy
Mode to have the same transmission rate.
Click this button to save the configuration.
90
Vigor2750 Series User's Guide
