Installing the Top Cover

1. Place the cover over the chassis so that the side edges of the cover sit just inside the
chassis sidewalls and the tabs on the cover align with the slots in the chassis.
2. Slide the cover forward until it clicks into place. See letter "A" in the figure below.
3. Tighten the captive screws on the faceplate. Use a torque setting of 0.90 N M (8 in
lb). See letter "B" in the figure.
4. Reconnect all peripheral devices and the AC power cord.
5. Slide the system back into the rack.
Intel® Server System S7000FC4UR Product Guide
B
A
A

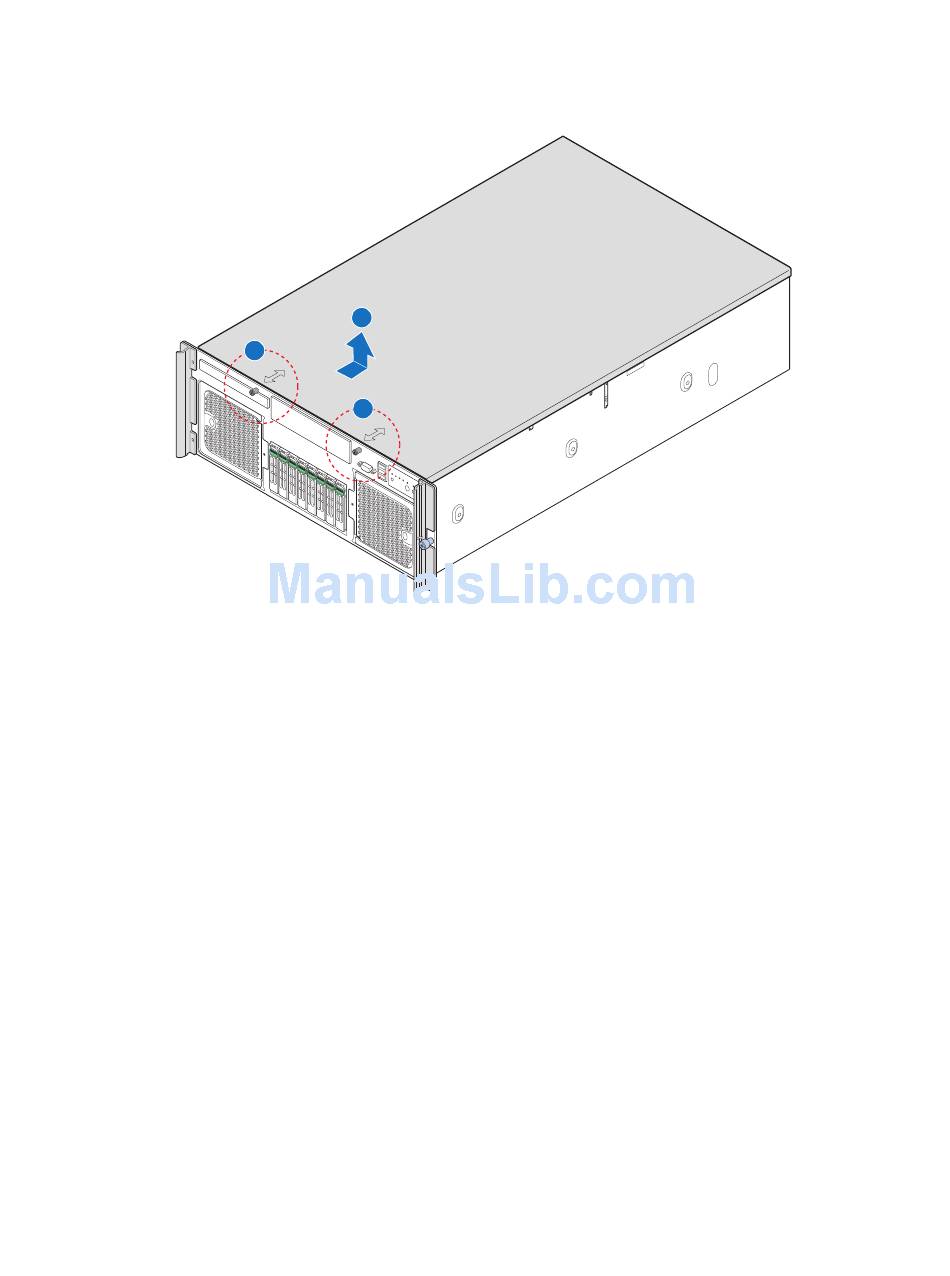

Figure 50. Removing the Top Cover

AF002233
91
