Removing and Installing the Center Brace

Removing the Center Brace

1. Remove the top cover. For instructions, see
2. Remove all memory boards. For instructions, see
page
3. Remove the SAS riser board. For instructions, see
Board" on page 99
4. Remove all full-length PCI Express* cards. For instructions, see
hot-swap PCI Card" on page
5. Slide the latches at each side of the chassis to the unlock position. See letter "A" in
the following figure.
6. Lift the center brace from the system. See letter "B" in the figure.
116
76.
A

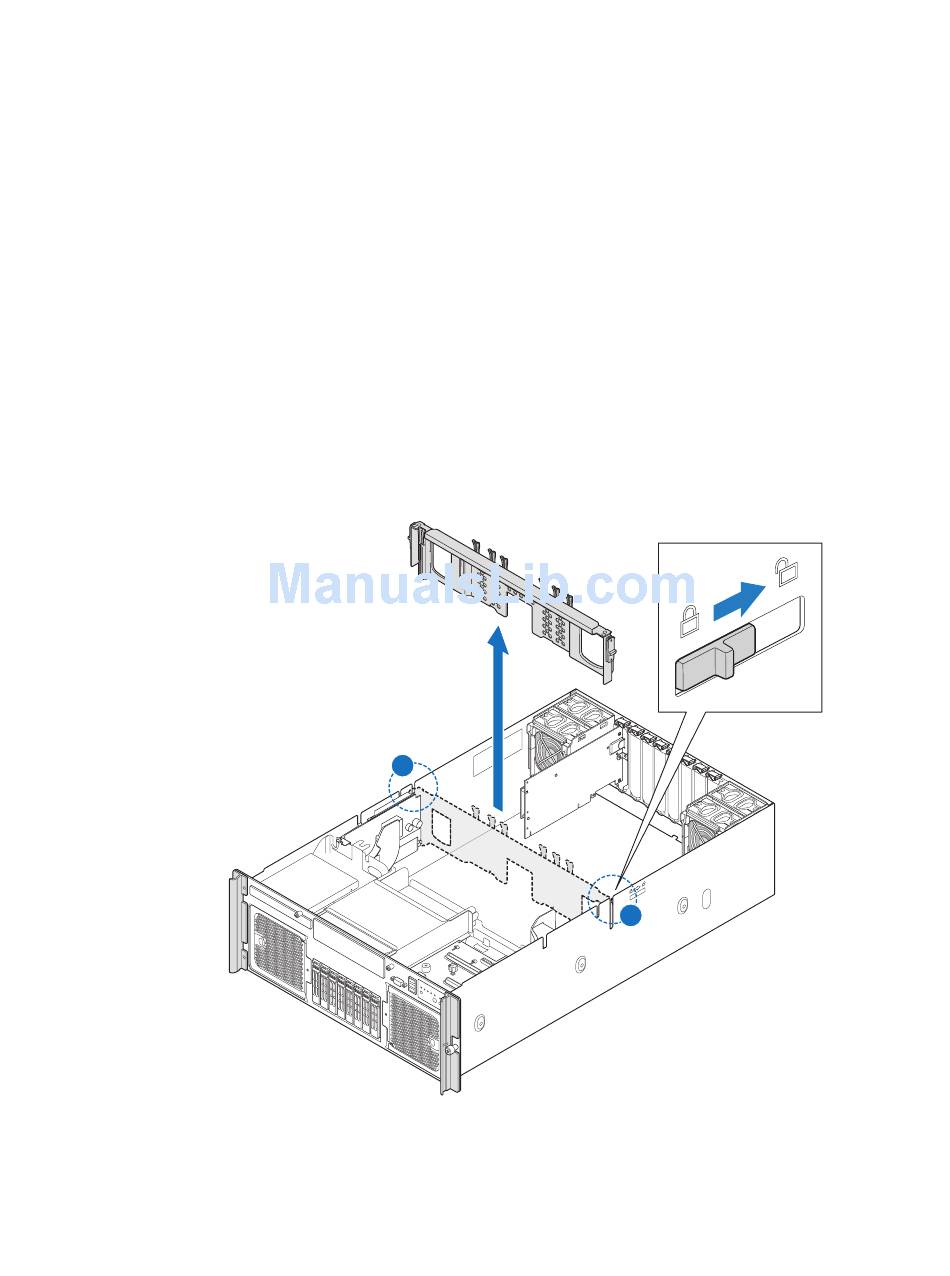

Figure 74. Removing the Center Brace

"Removing the Top Cover" on page
"Removing a Memory Board" on
"Removing the SAS Riser
74.
A
Intel® Server System S7000FC4UR Product Guide
90.
"Removing a Non-
AF002280
