Intel
4-Processor Server System
S7000FC4UR
Configuration Guide
Intel Value and Enterprise Servers
Rev 1.7

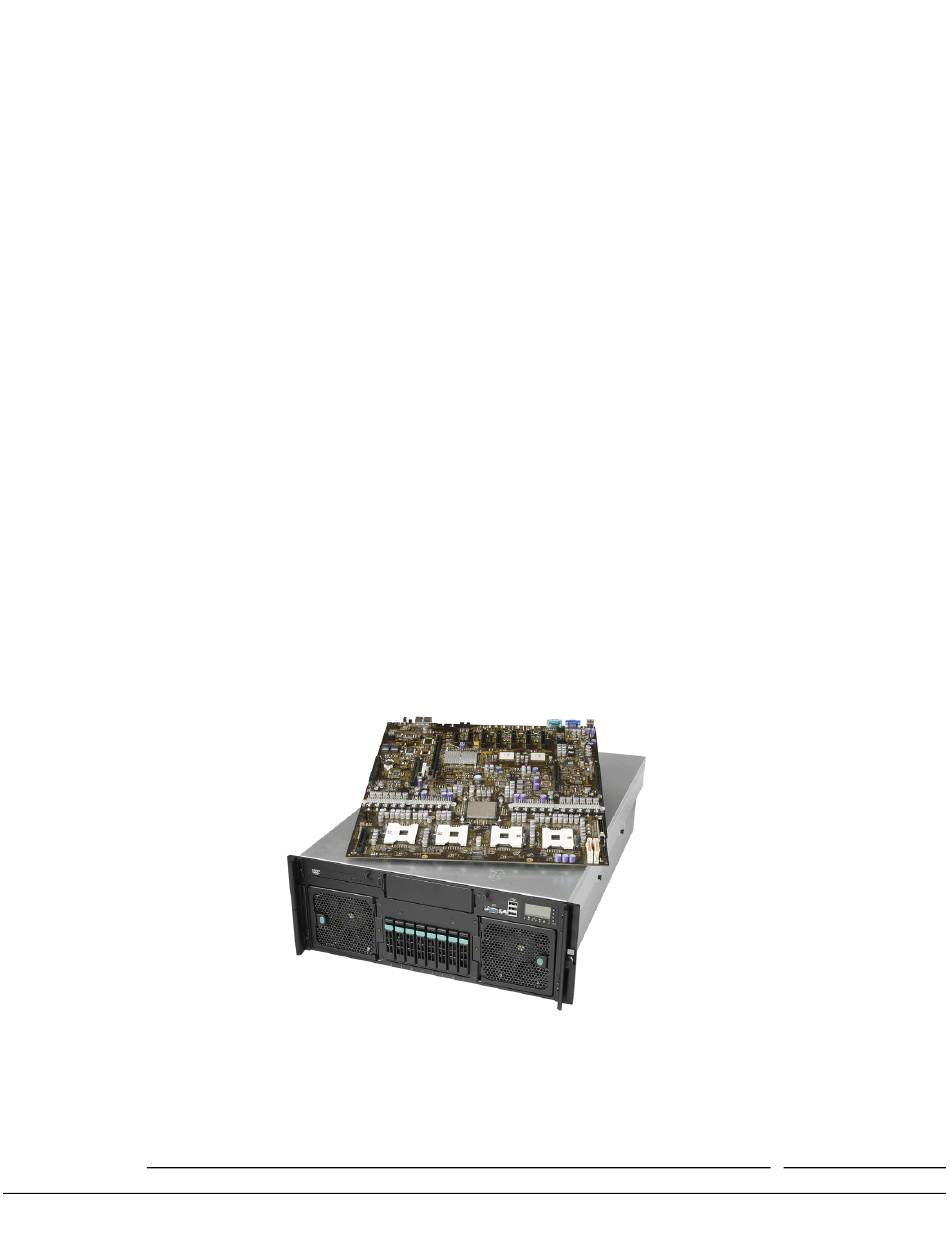

A reference guide to assist customers in ordering components to configure
S7000FC4UR
4-Processor 4U SAS 2.5" and 3.5" Server
Revisions/Additions in blue font
S7000FC4UR Configuration Guide
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for Intel S7000FC4UR
Summary of Contents for Intel S7000FC4UR
- Page 1 ® Intel 4-Processor Server System S7000FC4UR Configuration Guide Intel Value and Enterprise Servers Rev 1.7 A reference guide to assist customers in ordering components to configure S7000FC4UR 4-Processor 4U SAS 2.5” and 3.5” Server Revisions/Additions in blue font S7000FC4UR Configuration Guide...
-
Page 2: Table Of Contents
Table 2: System Accessory Codes ................9 Table 3: System Field Replaceable Units (FRUs) and Spare Part Codes .....11 9. Processor Codes Reference ....................12 Tray Processor Codes Reference ................12 Boxed Processor Codes Reference (does not include Heatsink) ......12 1/7/2009 S7000FC4UR Configuration Guide Page 2 of 12... -
Page 3: Revision History
7. The S7000FC4UR memory board supports FBD 533 or 667 registered DIMMs. 8. The Intel factory will package board orders into single order packaging and ship to fill customer orders. Each board MM is a self-contained shipping package of one board. -
Page 4: Base System Sku Contents
Rack Faceplate Assembly Rack Handles (Pair) Rear Fan Module Sample Safety Label SAS Riser to backplane cable SAS Riser with Integrated RAID capability (Intel) SAS/SATA 4U Backplane Board SAS/SATA HDD Carrier (Black) 2.5” SAS/SATA HDD Carrier (Black) 3.5” SATA Optical drive cable... -
Page 5: Value And Enterprise System Sku Comparsion
Value and Enterprise System SKU Comparsion 1/7/2009 S7000FC4UR Configuration Guide Page 5 of 12... - Page 6 1/7/2009 S7000FC4UR Configuration Guide Page 6 of 12...
-
Page 7: Production System Configuration Options
Included in SFC4URE DVD-ROM SAS Expansion Redundant Redundant Fans I/O Module Drive Module Power Supply Rack Rails and Up to 3 additional ROMB Key Remote Management Bezel memory boards. and Battery Module 2 (RMM2) 1/7/2009 S7000FC4UR Configuration Guide Page 7 of 12... -
Page 8: Base System Part Configurator
AXXRMM2 Management Module (RMM2) (only used with IO Module above) Below Accessories are included in Enterprise System SKU (SRFC4URE) Enables SAS Storage Capability with Intel Integrated RAID SAS Module AFCSASRISER Dual Channel NIC Module, with connector for RMM2 Integrated Network IO Module... -
Page 9: Complete Product Production Ordering Code Listings
Intel® Server System S7000FC4UR. (3.5” SKU) Table 2: System Accessory Codes MM / Image Product Code Description of Product Order S7000FC4UR Memory board, 8 DIMM slots, FBD- 533/667. Single-Pack. 899976 BFCMEM Power supply module. 4U. 15Amp, 110/220V. 891016 AFC4UPWR Intel® CEK processor heat sink. - Page 10 894383 AXXRMM2 Intel® 2.5" SAS Hard Drive Carrier. 881681 FXX25HDDCAR 880265 FXX10DVCARBLK Intel® 3.5" SAS Hard Drive Carrier. Slim Line DVD Spare 891932 AFCDVD Rear System fans for the S7000FC4UR. 891570 FFC4UBKFAN 1/7/2009 S7000FC4UR Configuration Guide Page 10 of 12...
- Page 11 Drive. (7 pin) FFC4UCP Cable: Front panel control to front panel I/O Cable: Front panel I/O to HDD Backplane for FFC4UFPBPSAS S7000FC4UR. (34 pin) Cable: Front panel IO to Baseboard for S7000FC4UR. FFC4UFPSATA (100 pin) FFC4UFRTFANPWR Cable: Front Fan Power cable FFC4UINTSAS Cable: Internal SAS Riser to 2.5"...
-
Page 12: Processor Codes Reference
Tray Processor Codes Reference Category Product Code Description Tray Processor 80565KH0778M 2.93 GHz / 2X4M Quad-Core Intel® Xeon® processor X7350 (Tigerton 130W) Tray Processor 80565JH0368M 1.86 GHz / 2X4M Quad-Core Intel® Xeon® processor L7345 (Tigerton 50W) Tray Processor 80565QH0568M 2.40 GHz / 2X4M Quad-Core Intel® Xeon® processor E7340 (Tigerton 80W) - Page 13 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Intel FFCSASRISER...
