Cooling Subsystem

Caution: The chassis top cover must be installed for proper system cooling. Cooling components
must be hot-swapped within two minutes. This time period applies only to the time that the
cooling component is physically removed, not from the time of failure.
The cooling subsystem consists of hot-swap, redundant (7+1) fans. In a redundant
configuration, the system supports one fault at a time, either one fan fault or one power
supply fault, and it supports hot-swapping one component at a time. If a cooling
component fails, the system cooling is maintained and the system continues to operate
while the component is hot-swapped.
Each front fan assembly has one status LED. The LED is off when both fans are operating
normally. The LED illuminate amber if one or both of the fans fails. Failed front fans can
be hot-swapped from the front of the system.
Each rear fan has one status LED. The LED is off when the fan is operating normally and
illuminates amber if the fan fails. Failed rear fans can be replaced from the top of the
system when the top cover is removed.
18

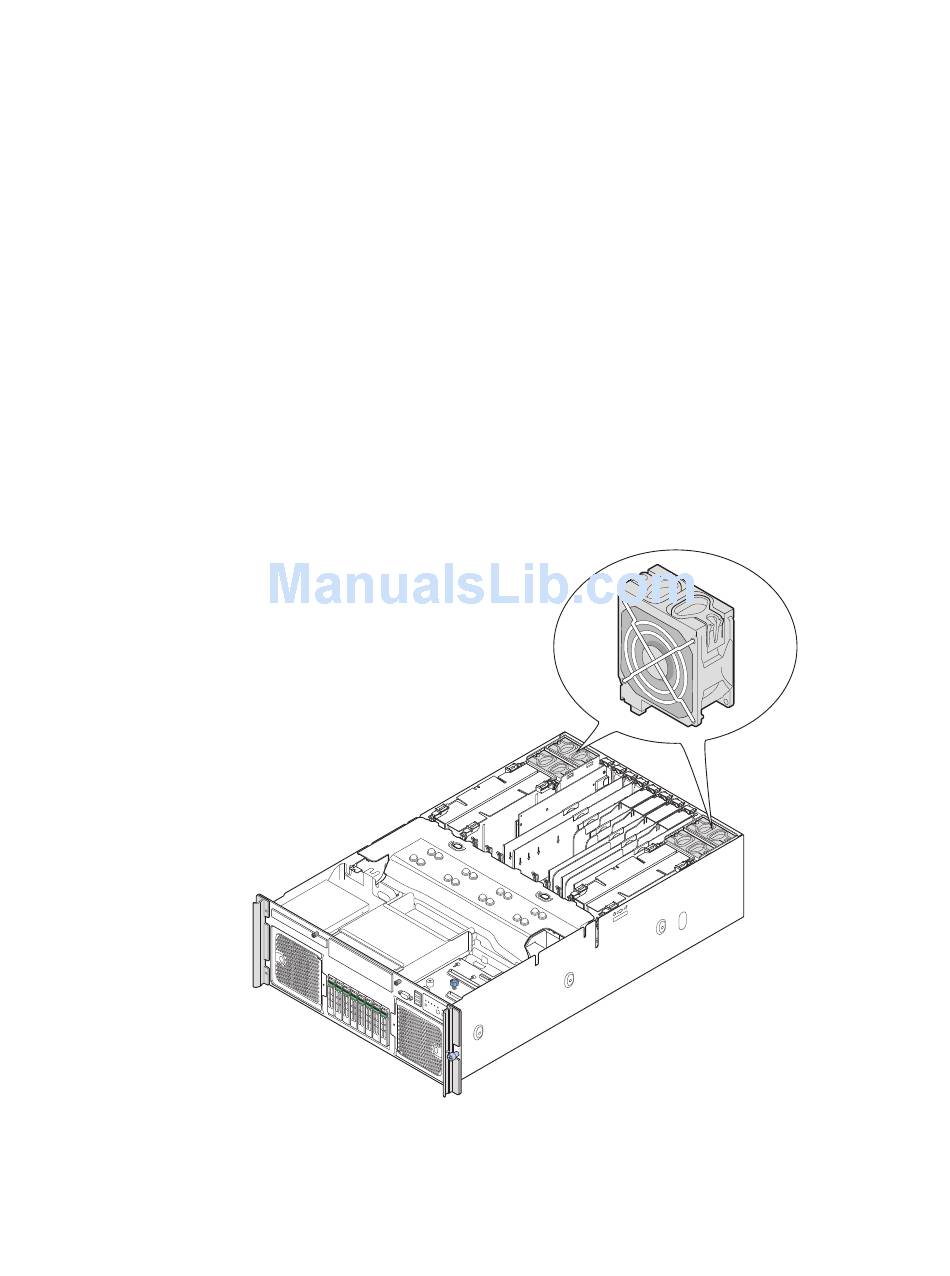

Figure 9. Rear Fan Locations

Intel® Server System S7000FC4UR Product Guide
