10. Lower the memory board DIMM cover over the DIMM slots.
11. Line up the hooks in the cover with the notches on the bottom edge of the memory
board.
12. Press down on the cover until the hooks on both the top and bottom of the cover
click into place around the memory board.
13. Install the memory board. For instructions, see
page
Intel® Server System S7000FC4UR Product Guide

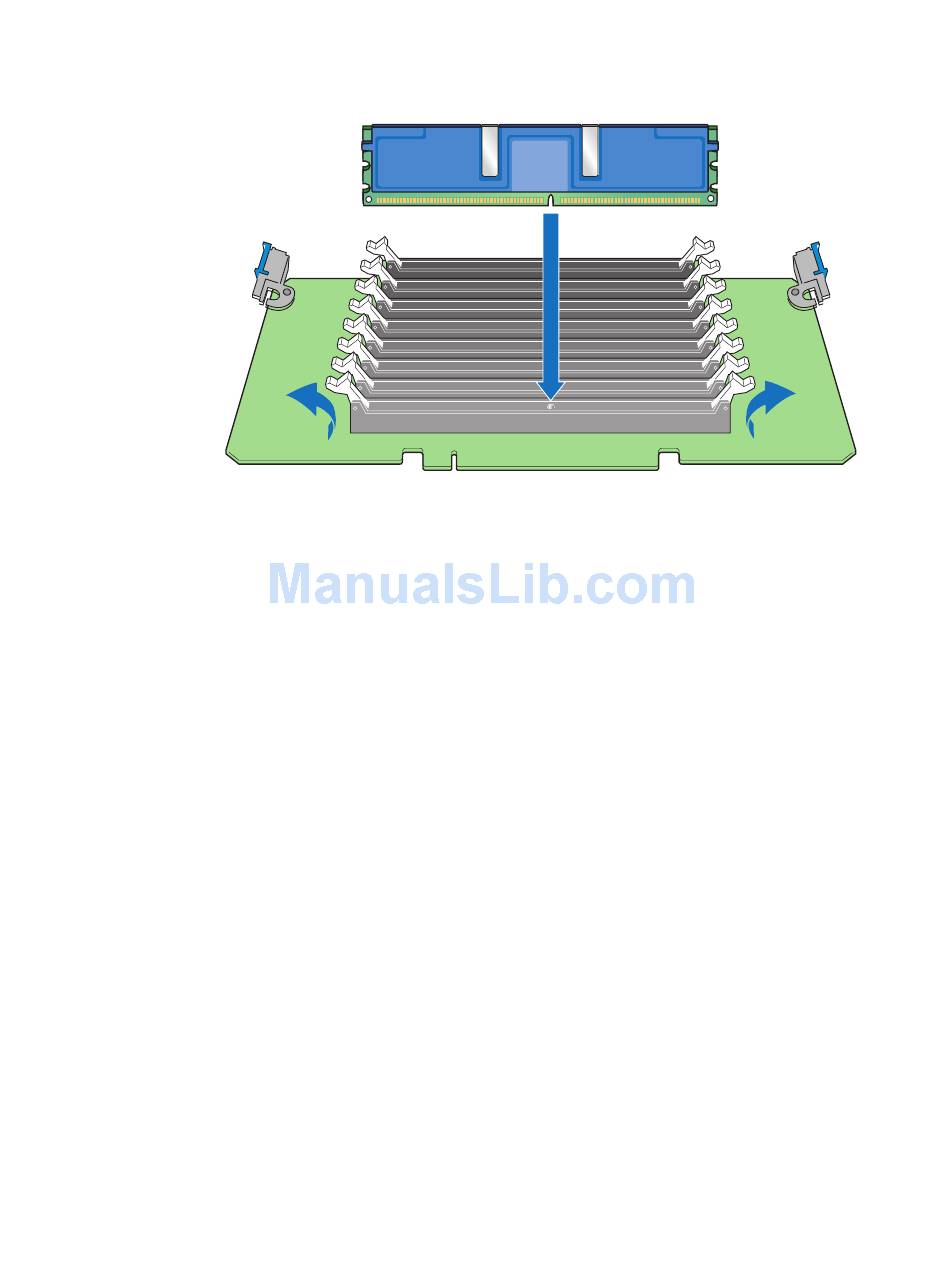

Figure 45. Install DIMMs
78.
"Installing a Memory Board" on
AF002247
83
