Chapter 1 Cisco Secure ACS Solution Engine Overview
Figure 1-4
5
Pin
1
2
3
4
5
6
7
8
9
Shell

Ethernet Connectors

Your Cisco 1113 system has two integrated 10/100/1000-megabit-per-second (Mbps) Ethernet
connectors. ACS SE supports the operation of either Ethernet connector, but not both connectors. Each
Ethernet connector provides all the functions of a network expansion card and supports the 10BASE-T,
100BASE-TX, and 1000BASE-TX Ethernet standards.
Each NIC is configured to automatically detect the speed and duplex mode of the network.

Network Cable Requirements

Warning To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to
telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain
TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting
cables.
OL-9969-03

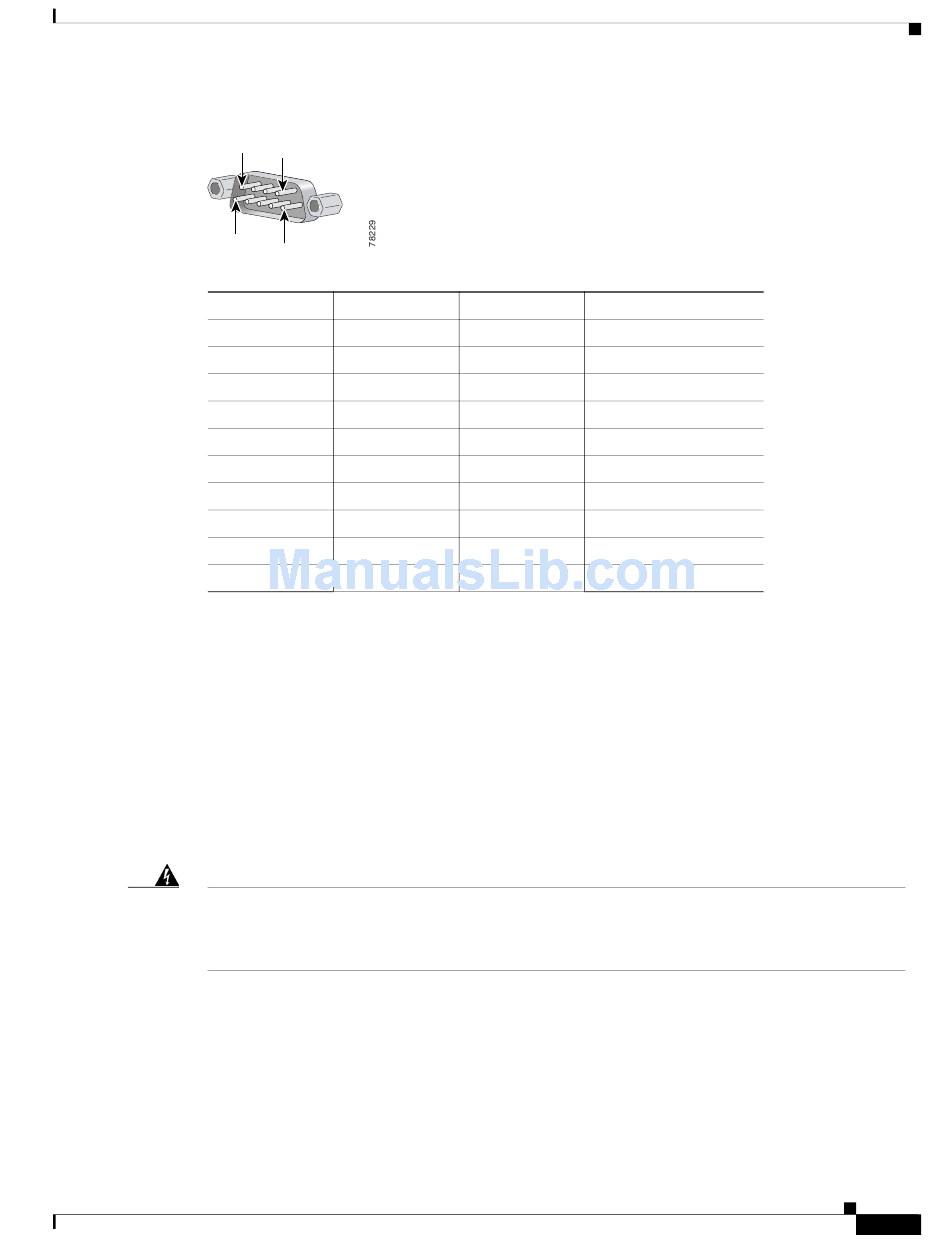

Pin Numbers for the Serial Port Connector
9
6
Serial
port
1
Signal
DCD
SIN
SOUT
DTR
GND
DSR
RTS
CTS
RI
N/A
I/O Definition
I Data carrier detect
I Serial input
O Serial output
O Data terminal ready
N/A Signal ground
I Data set ready
O Request to send
I Clear to send
I Ring indicator
N/A Chassis ground
Installation Guide for Cisco Secure ACS Solution Engine 4.1
ACS SE Hardware Description
1-7
