ACS SE Hardware Description

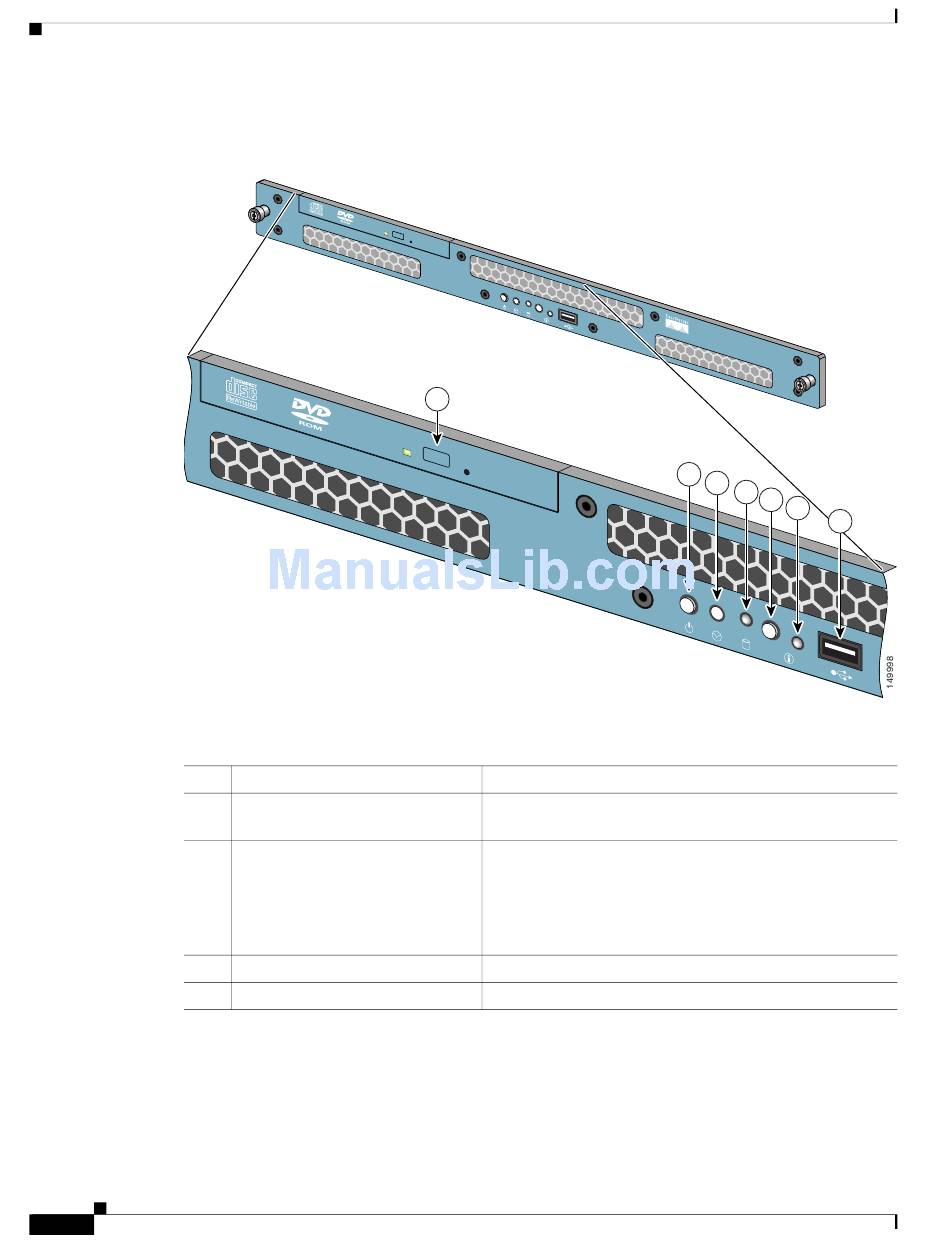

Figure 1-2
The following table describes the callouts in
No.
1
2
3
4
Installation Guide for Cisco Secure ACS Solution Engine 4.1
1-4
Front Panel Switches and Indicators for the Cisco 1113
Switch or LED Indicator
DVD-ROM drive activity LED
Power On/Off button and LED
Unused button
HDD LED
Chapter 1
1
Figure 1-2.
Description
On = Activity
Off = No Activity
Pushing the power button turns the unit on or off. The LED
in the center of the power On/Off button has three states:
Blinking Green = Power is connected but not on
Green = Power On
Off = Power Off
This button is not operational.
Indicates that there is activity on the hard drive.
Cisco Secure ACS Solution Engine Overview
C IS C
O 1 1
B U IL
9 0
D IN G
B R O
A D B
A N D
S E R
V IC E
M A N
A G E
R
2
3
4 5
6
7
