6-4

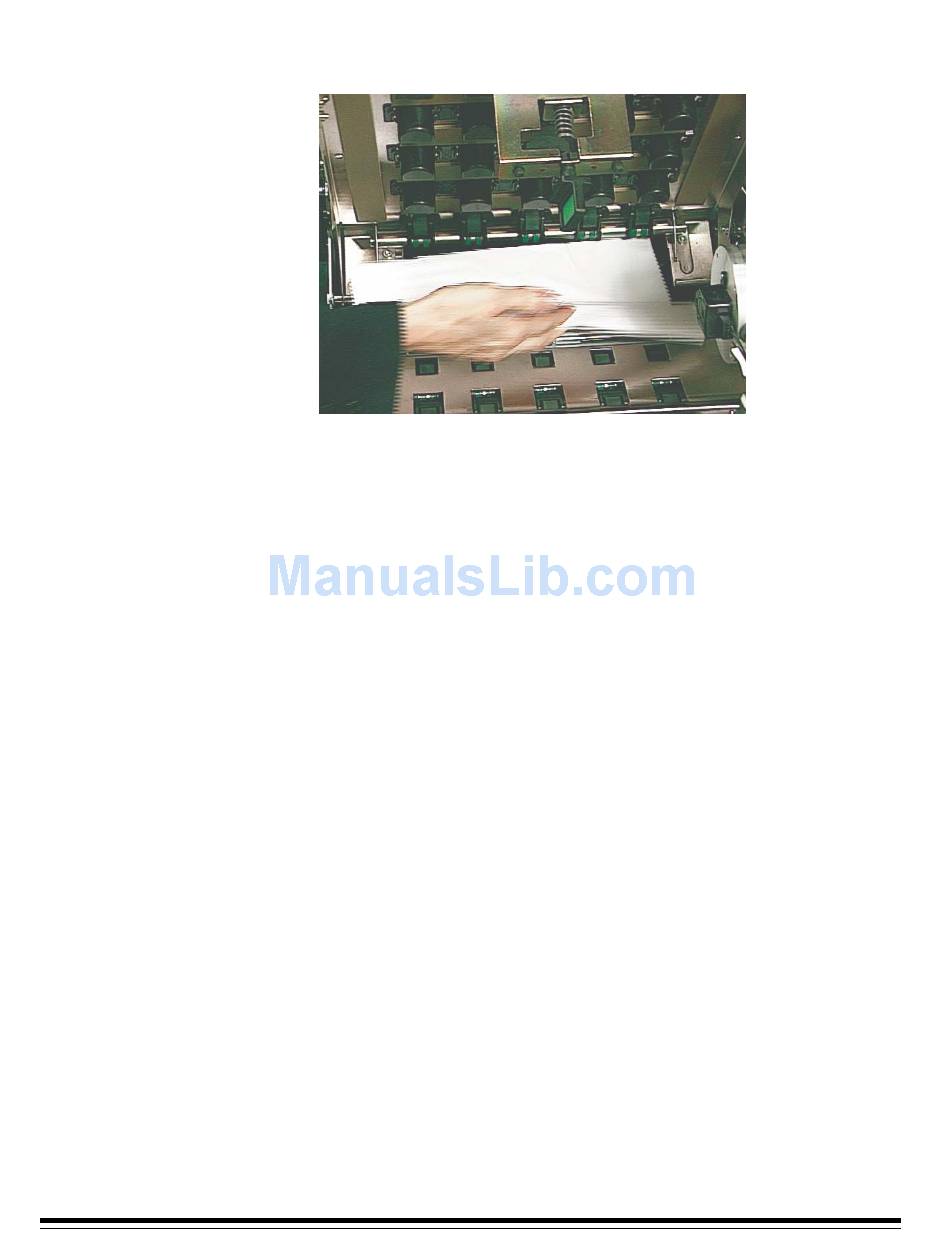

16. Slide out the horizontal baffle plate and remove any lodged
documents.
17. Slide the horizontal baffle plate back into position and close the
vertical transport plate.
NOTE: Be sure the vertical transport plate is securely locked into
position.
18. Reinstall the imaging guides.
19. Close the bi-fold door.
20. Re-enable the scanner from the host.
A-61169 January 2005
