Kodak i800 Series Quick Reference Manual

i800 Series Scanners
Quick Reference Guide

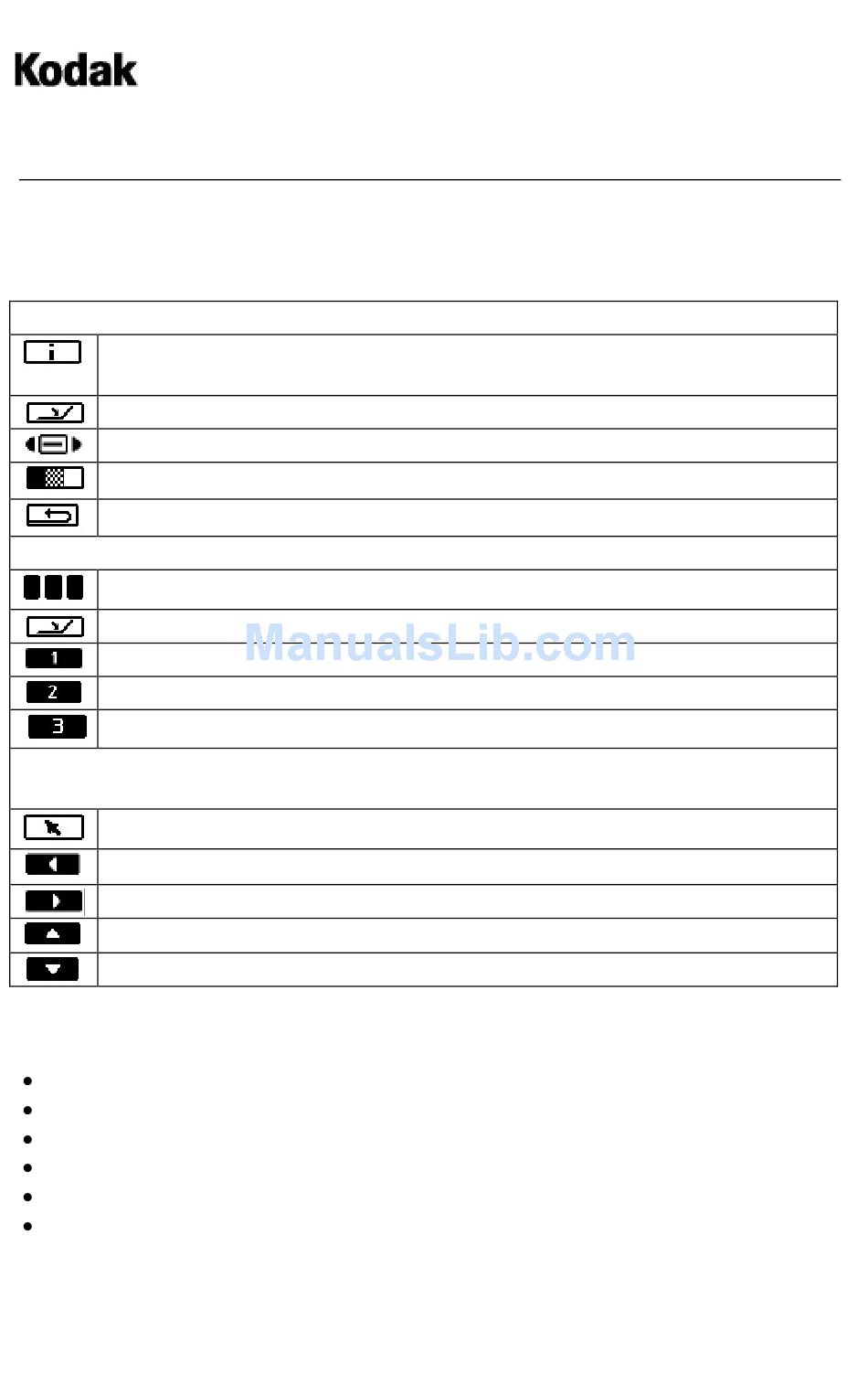

The list below provides a summary of the icons displayed on the Operator
Control Panel. For procedures on how to use these functions, see the Multi-
media User's Guide for the Kodak i800 Series Scanners (A-61170).
These functions can be performed when the scanner is disabled:
Displays information: including the last image address, meter
values, scanner serial number.
Lowers the elevator tray if it is not already in the lowest position.
Displays the Diagnostics Settings menu.
Calibrates the scanner.
Temporarily turns on the transport to help clear a document jam.
These functions can be performed when the scanner is enabled:
Increments the image address level.
Lowers the elevator tray if it is not already in the lowest position.
Performs the first programmable function.
Performs the second programmable function.
Performs the third programmable function.
When the Diagnostics Settings menu button is selected, these functions are
available:
Performs the selected function.
Moves left to the next selectable item.
Moves right to the next selectable item.
Moves up to the next selectable item.
Moves down to the next selectable item.
Programmable key functions are assigned at application setup. Check with your
System Administrator for key assignments. Available functions are:
No Scanner Functionality (default)
Scanner End-of-Job
Terminate Batch
Omit Multi-feed Detection on Next Document
Omit Printing on Next Document
Omit Patch Reading on Next Document
A-61171_XX
