5-22

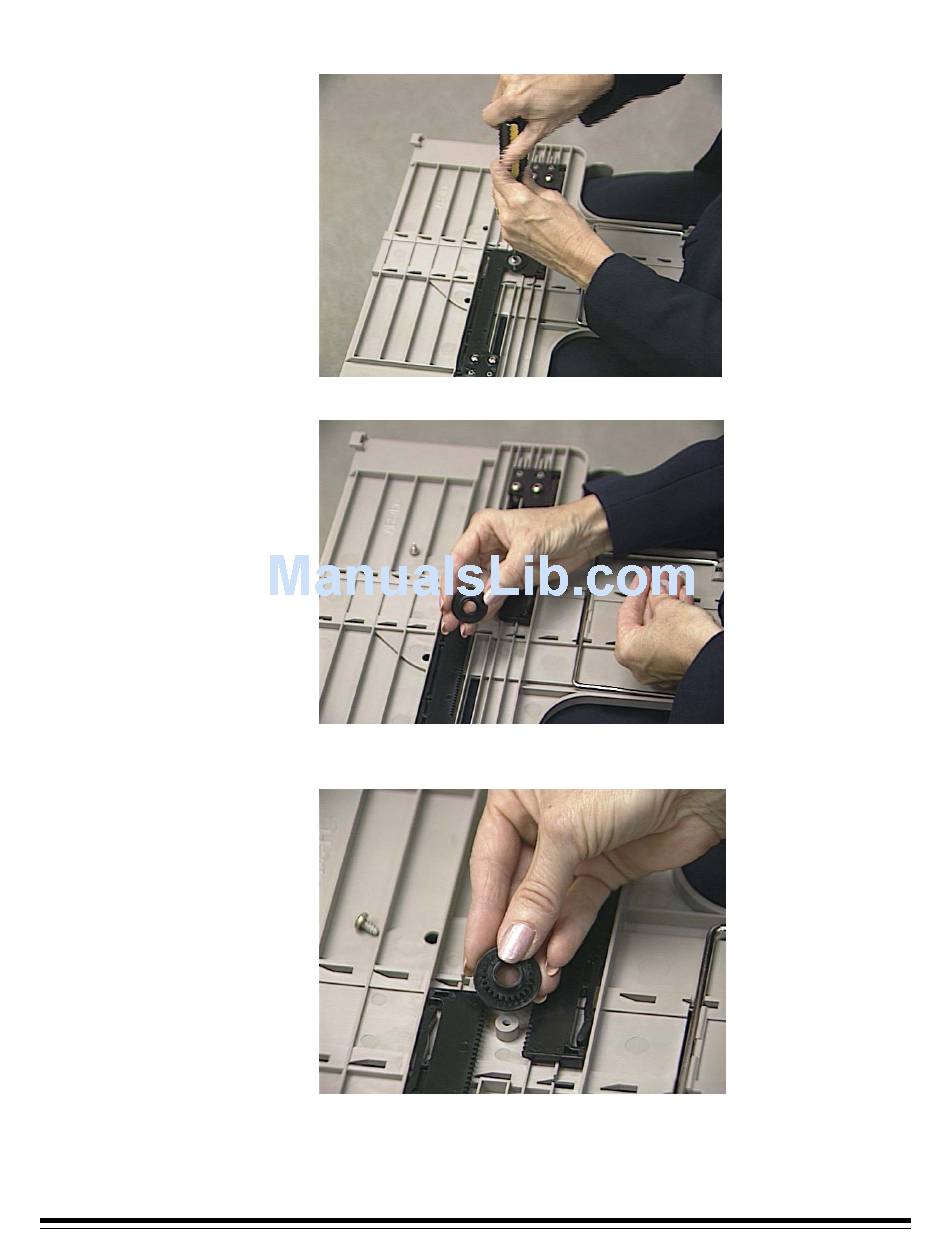

3. Use the screwdriver to release the center screw.

4. Remove the spacer and washer.

5. Take the geared spacer and place it over the post, being sure to align

the teeth on the racks.

6. Add the washer and screw and gently tighten until the spacer and

washer are firm.

NOTE: Do not overtighten.

A-61169 January 2005
