Exit transport plate
A-61169 January 2005

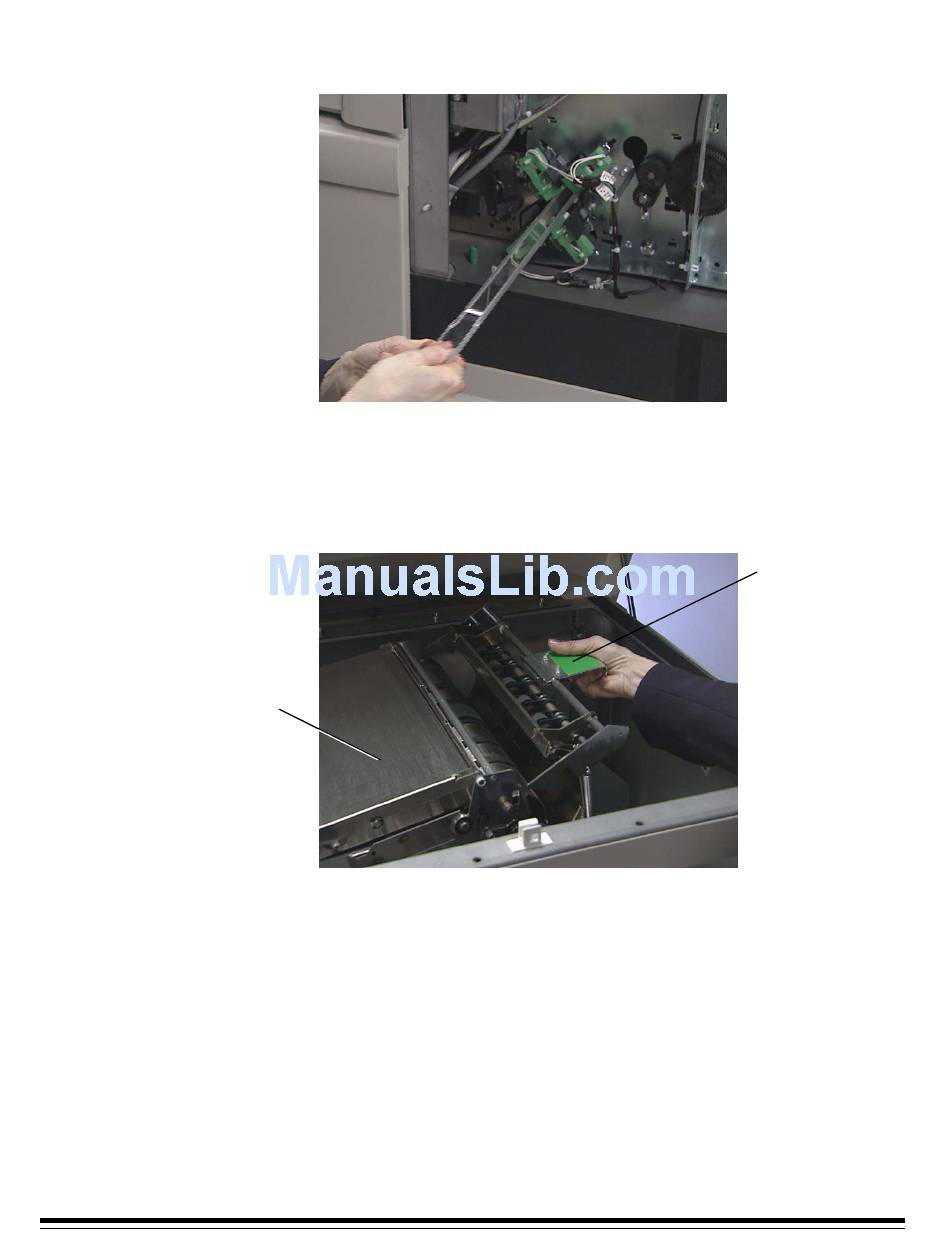

5. Grasp the end of the upper imaging guide and slowly pull it straight
out.
6. Place the upper imaging guide on a clean surface.
NOTE: To avoid getting any debris (from the cleaning process) on the
imaging guides, they will be reinstalled after the scanner is
thoroughly cleaned.
7. Release the top turn baffle.
8. Vacuum the area.
9. Close the top turn baffle.
Top turn baffle
5-3
