Changing the output
tray side guides
A-61169 January 2005
7. Turn the tray right-side up, reinstall the end stop and verify the guides
move freely.
8. Replace the output tray.

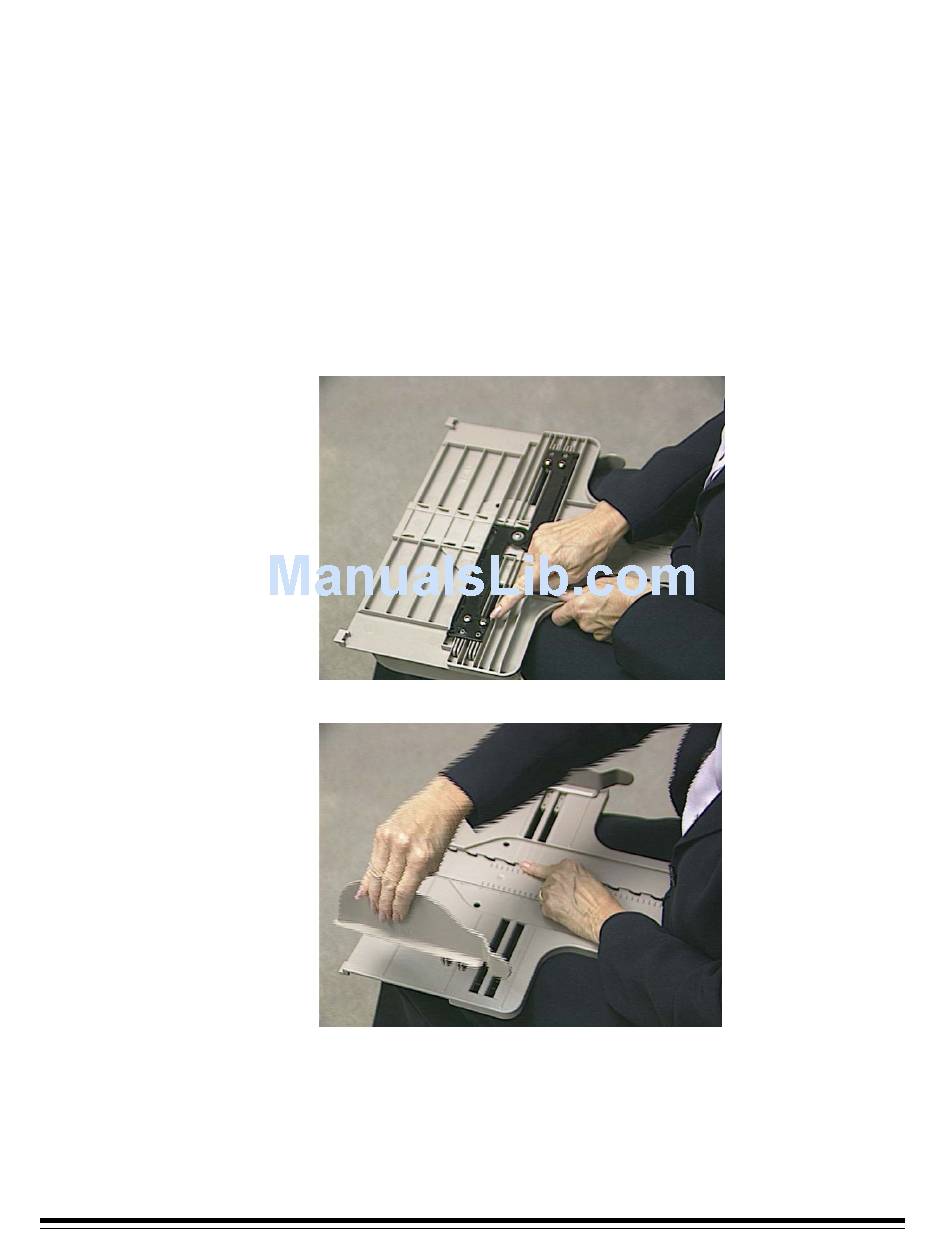

The output tray comes with a set of short and tall side guides, which can
be easily changed.
Tools needed: Phillips Head Screwdriver
1. Remove the output tray.
2. Remove the end stop.
3. Turn the tray upside down.
4. Use the screwdriver to release the screws.
5. Turn the tray over and remove the short (or tall) side guides.
5-23
