Setting the Patch Reader
position
4-12
There are 5 patch locations available for patch reading.
1. Set the documents in the elevator tray.
2. Open the swing out door.

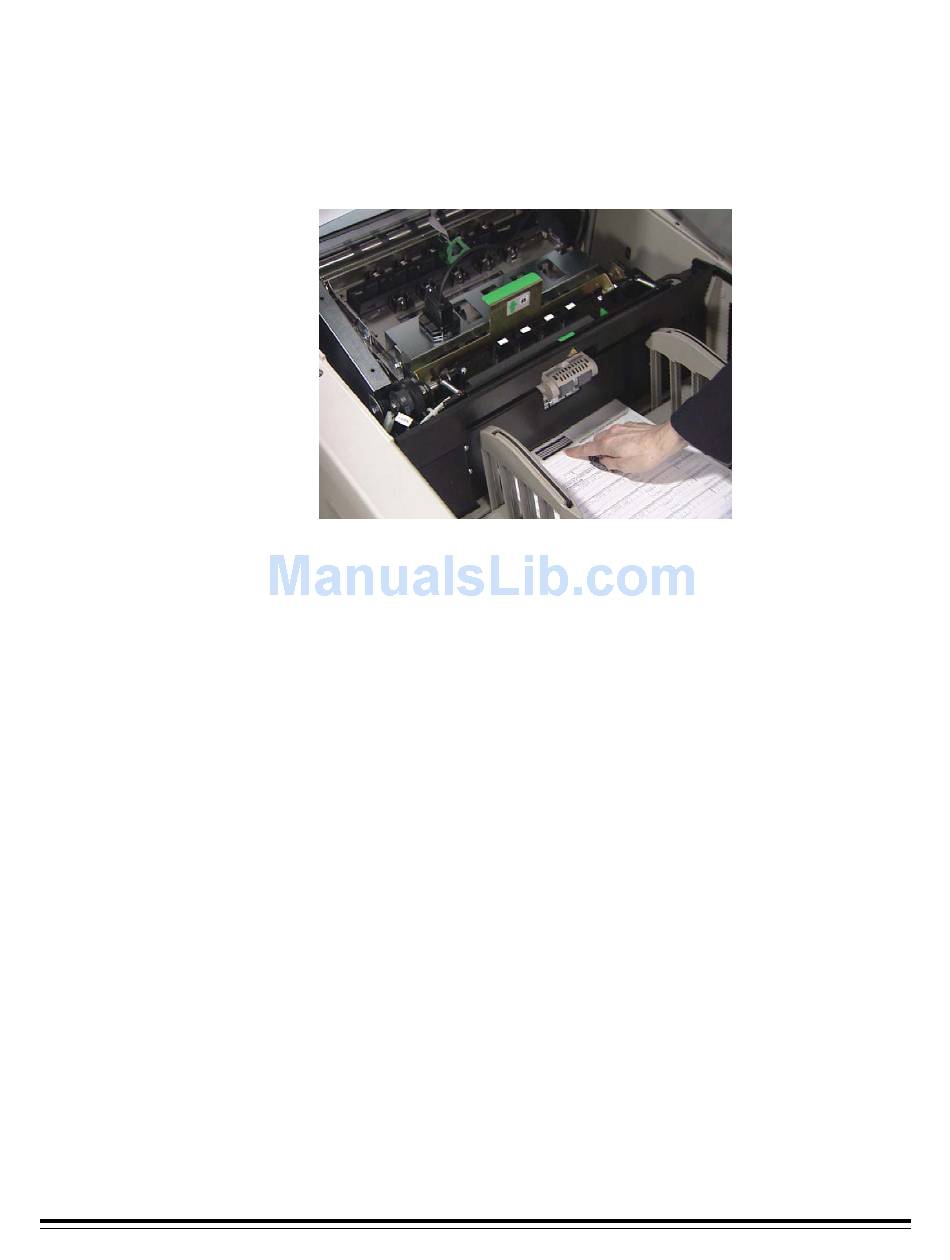

3. Align the patch head with the location of the patch on the documents.
4. Close the swing out door.
NOTE: If patches on the documents change location, repeat the
procedure above for the new location.
A-61169 January 2005
