Cleaning the feed module
tires and separation

roller tires

Replacing lamps

A-61169 January 2005
The cleaning procedures below should be performed daily. More frequent
cleaning may be necessary depending on throughput and document type.
Daily cleaning of the feed module tires and separation roller tires prevent
ink, toner, dust and paper contaminates from collecting on the rollers,
which help documents to separate properly when feeding.
1. Open the swing out door.
2. Remove the feed module.
3. Lift the roller cover.
4. Remove the feed module and separation roller.
5. Rotate the feed module tires and separation roller tires and scrub with
an Emulsiclean wipe. Continue cleaning until all residue is removed
from the tires.
6. Dry the tires with a dry, lint-free cloth.
7. Reinstall the separation roller.
8. Lower the roller cover.
9. Reinstall the feed module.
10. Close the swing out door.
There are four identical lamps in the scanner. Replace all lamps using the
same procedure.
CAUTION: Lamps that have been operating are HOT. Before
attempting to replace the lamps, make sure the scanner
is turned off and you have allowed the lamps to cool for
at least 10 minutes.

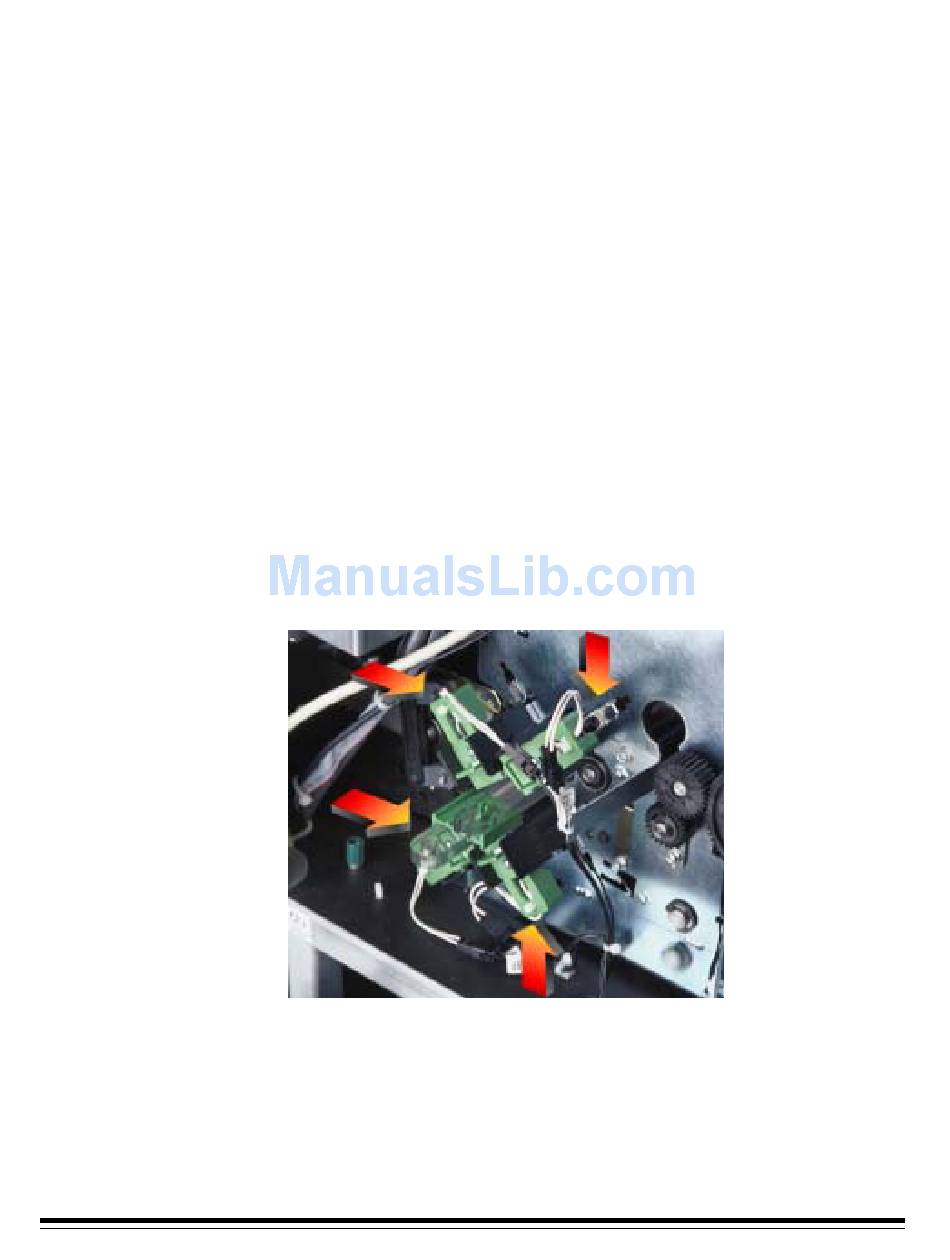

1. Open the bi-fold door.
5-17
