Intel® Server System SR1630BC TPS
Power Sub-System
3.
Power Sub-System
The power sub-system consists of one, non-redundant high efficiency 400-W power supply that
supports a 1U rack mount server system. The power supply and the power supply sub-system
will have six outputs: 3.3 V, 5 V, 12 V1, 12V2, -12 V, and 5 VSB. The input is auto-ranging and
power factor corrected. The form factor is EPS1U at 240 mm depth and wire harness output. It
provides integrated management features, including over-temperature protection circuitry and
over-voltage protection circuitry.
The power supply provides two non-redundant 40 mm fans for self-cooling.
3.1 Mechanical Overview

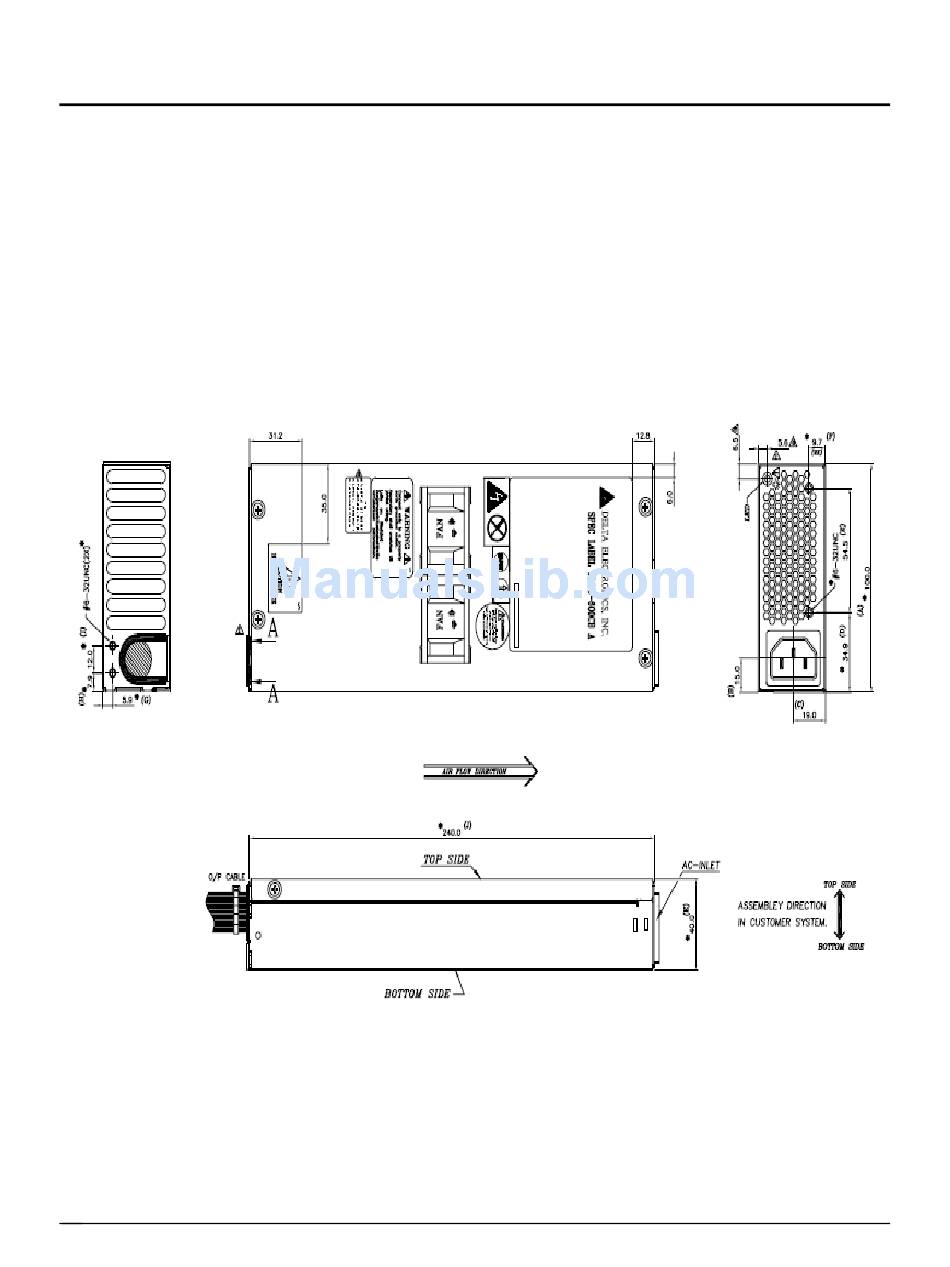

Figure 8. Overview of power Supply
Intel order number E44588-005
Revision 1.5
