Power Sub-System
Notes:
1. All dimensions are in mm.
2. The tolerance of the 40 mm height dimension (marked with letter C) pertains to the metal case
only.
Revision 1.5

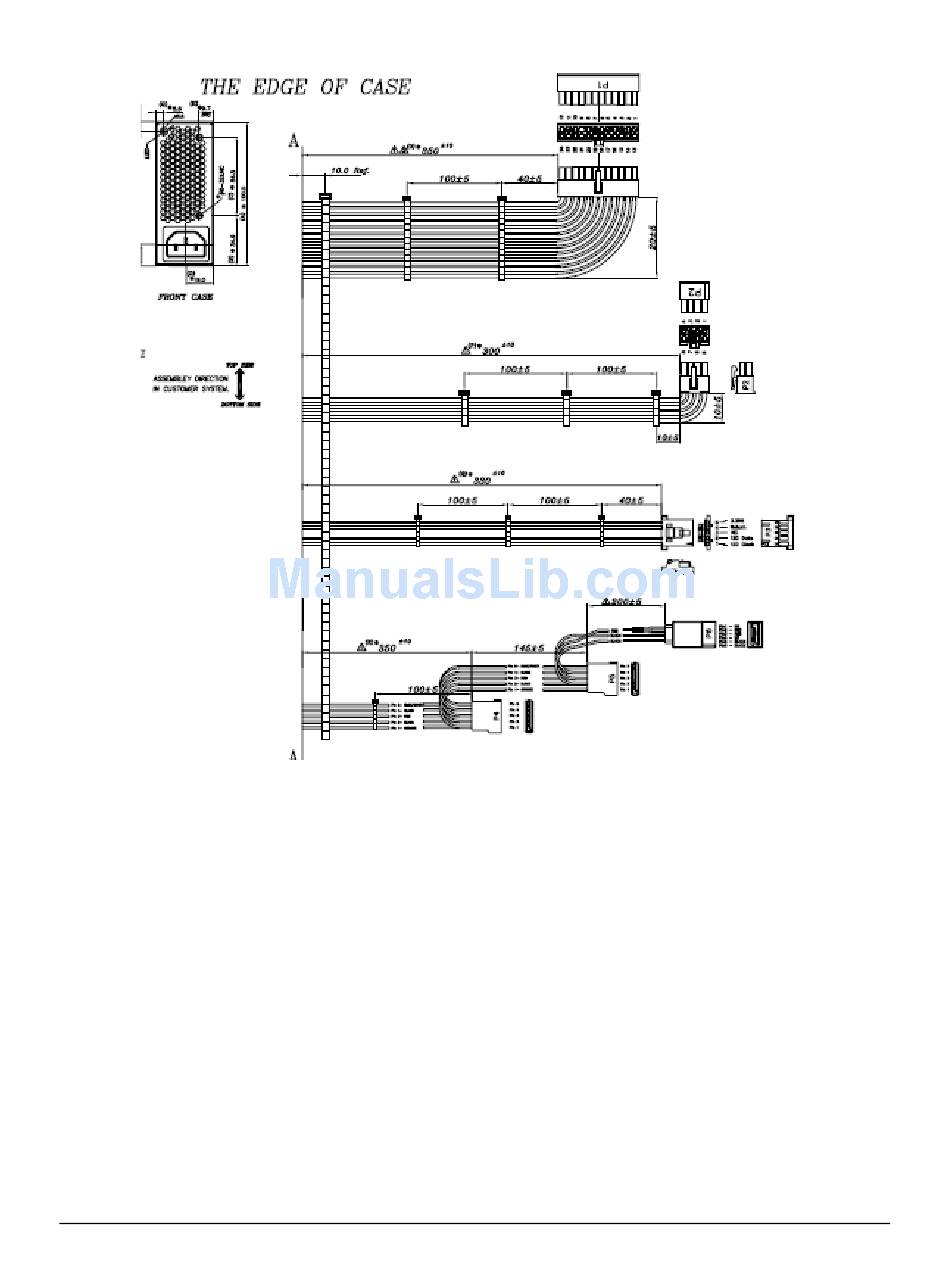

Figure 9. Power Supply Mechanical Drawing

Intel order number E44588-005
Intel® Server System SR1630BC TPS
13
