Product Overview
2.3
System Components
A
Rack handles (two)
B
Processor air duct
C
System memory DIMM sockets
D
PCI add-in card bracket
E
Power supply

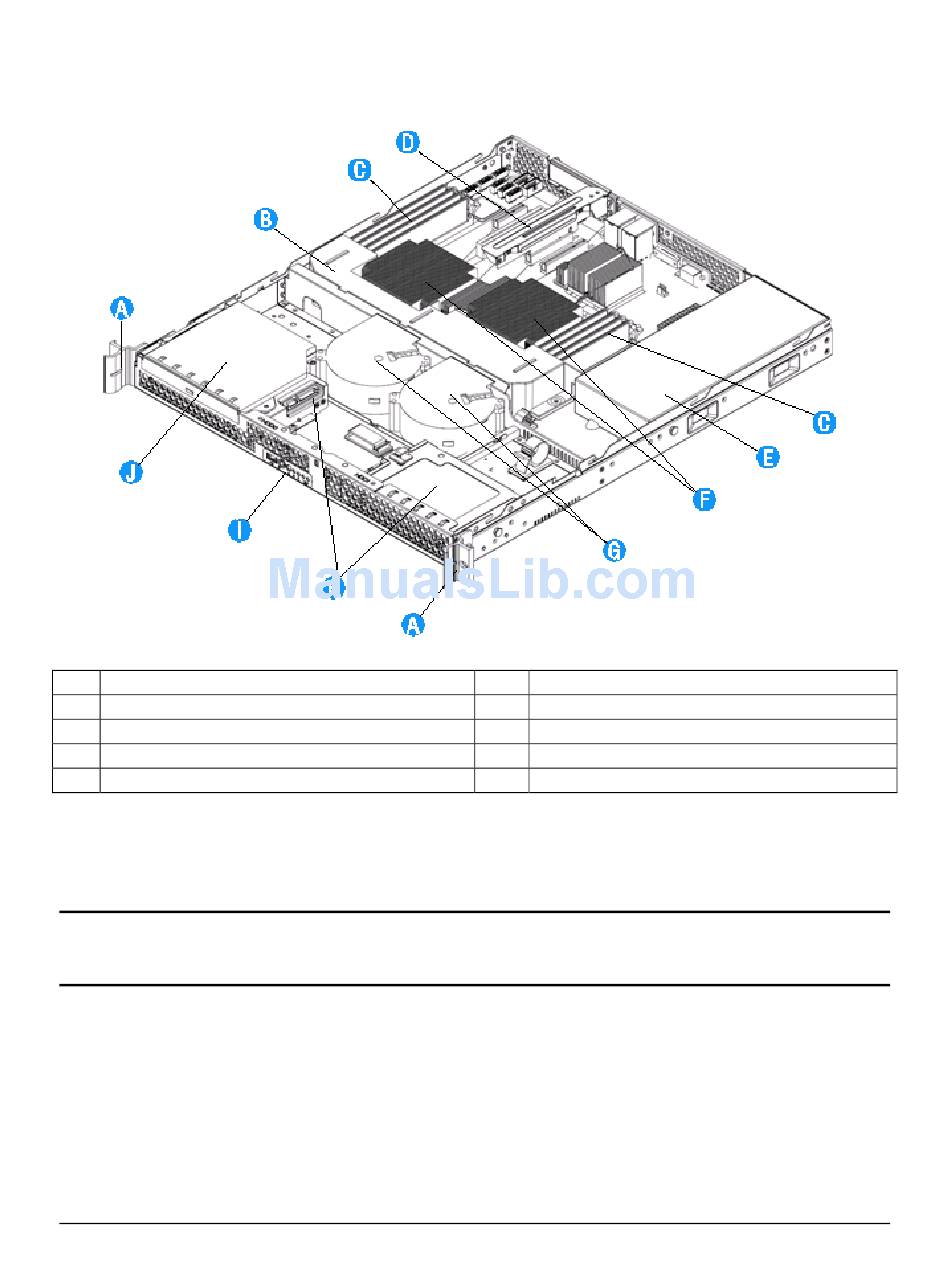

Figure 2. Major System Components – Intel
Note: The I/O connector locations on the back of the chassis are pre-cut, making an I/O shield
unnecessary. You must install the supplied EMI gasket to maintain electromagnetic interference
(EMI) compliance levels.
Revision 1.5
F
G
H
I
J
Intel order number E44588-005
Intel® Server System SR1630BC TPS
CPU Heatsink (two)
System blower fans (two)
Hard drives (two)
Control panel
Slimline optical drive
®
Server System SR1630BC
